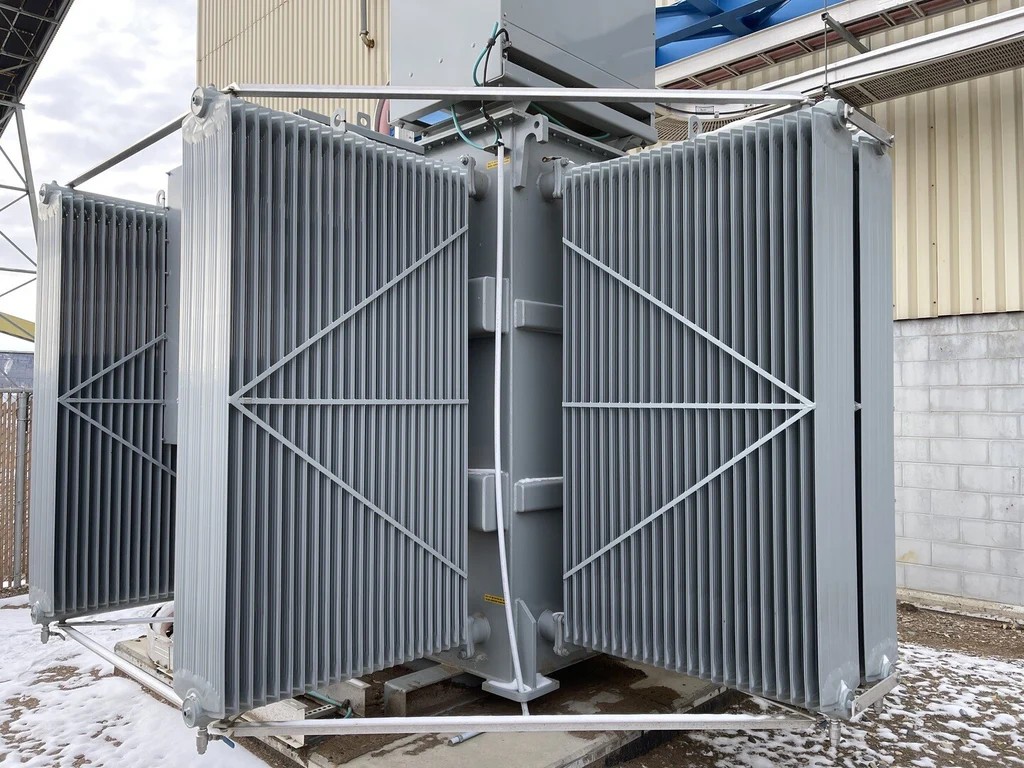

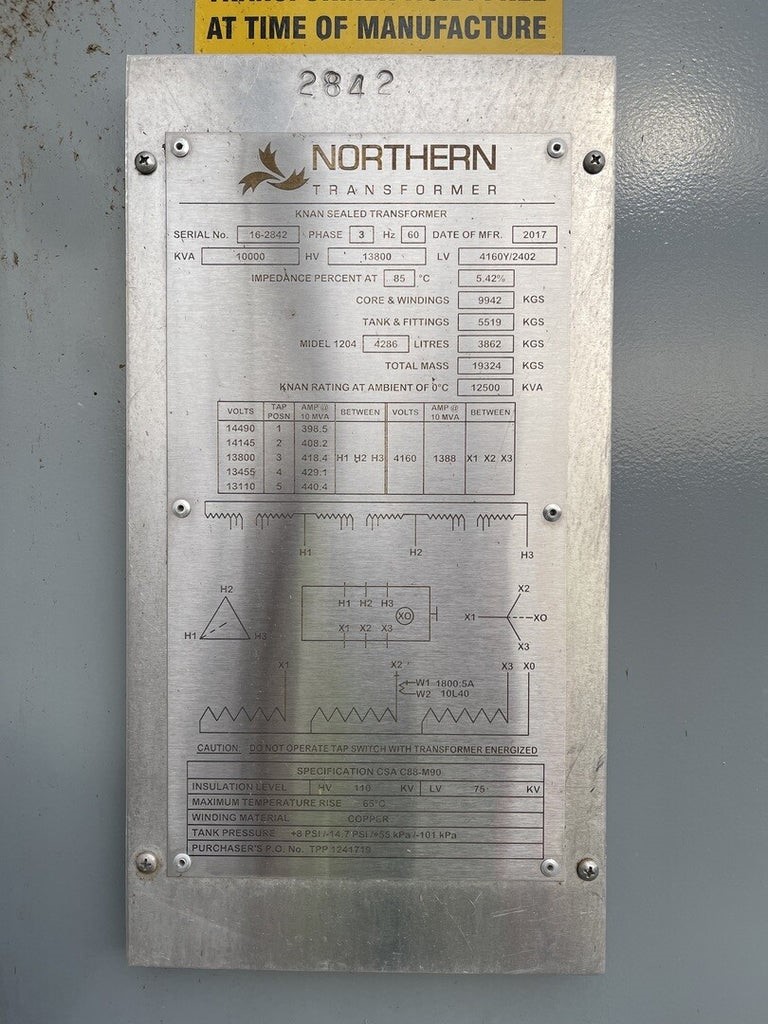

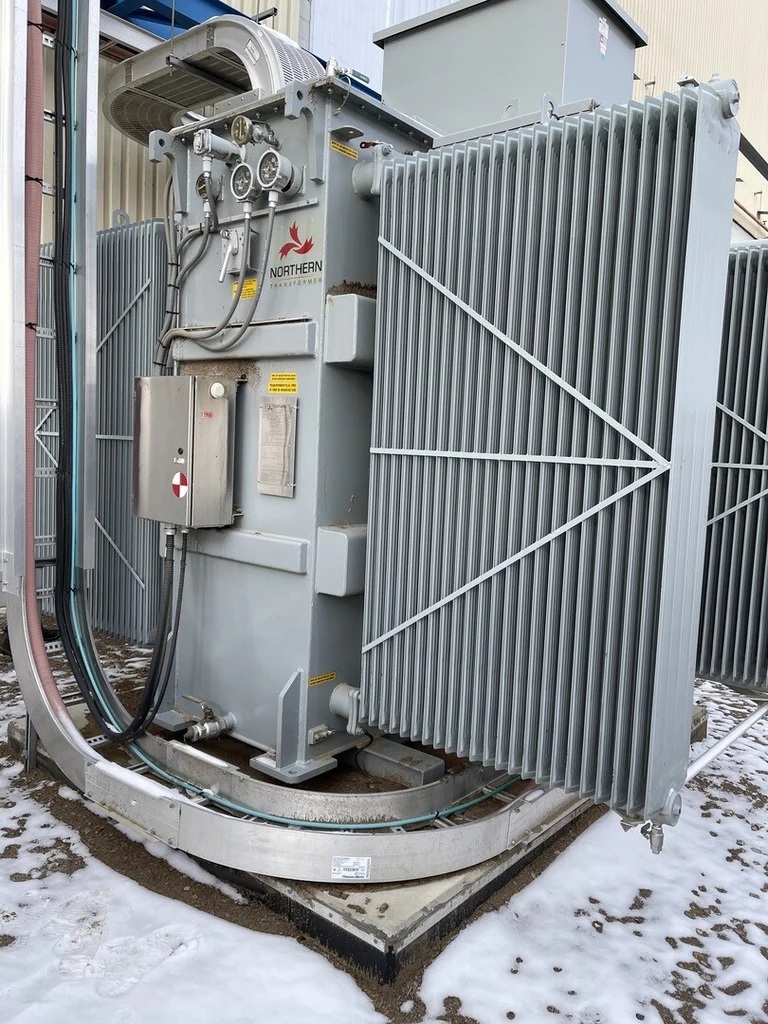

10 MVA 13800D - 4160Y Northern Transformer Substation Transformer

KVA: 10000 KVA
Manufacturer: Northern Transformer
Primary - First: 13800 V
Primary - First Vector: Delta
Secondary - First: 4160 V
Secondary - First Vector: Wye
Phase: 3
HERTZ: 60
CLASS: KNAN
TEMPERATURE RISE: 65 °C
IMPEDANCE: 5.42
Primary - First BIL: 110 kV
Secondary - First BIL: 75 kV
STANDARD TAPS: 14490-14145-13800-13455-13110
CORE & COIL WEIGHT: 9942 kg
TANK & FITTINGS WEIGHT: 5519 kg
FLUID WEIGHT: 3862 kg
TOTAL WEIGHT: 19324 kg
FLUID TYPE: Mineral Oil
