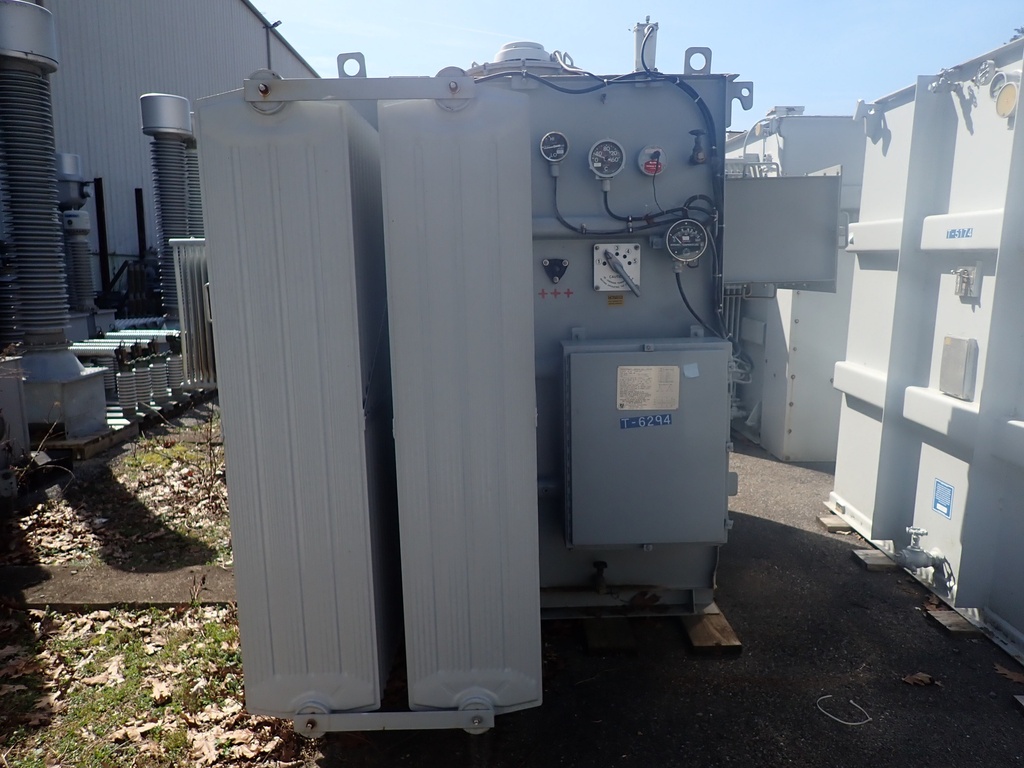

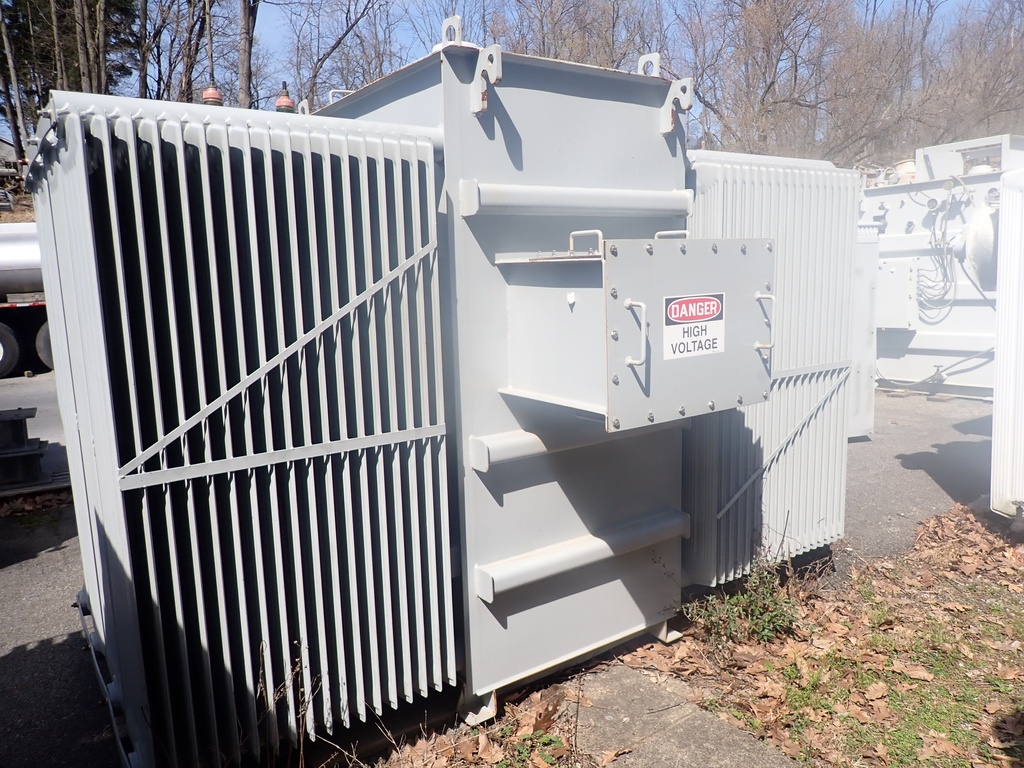

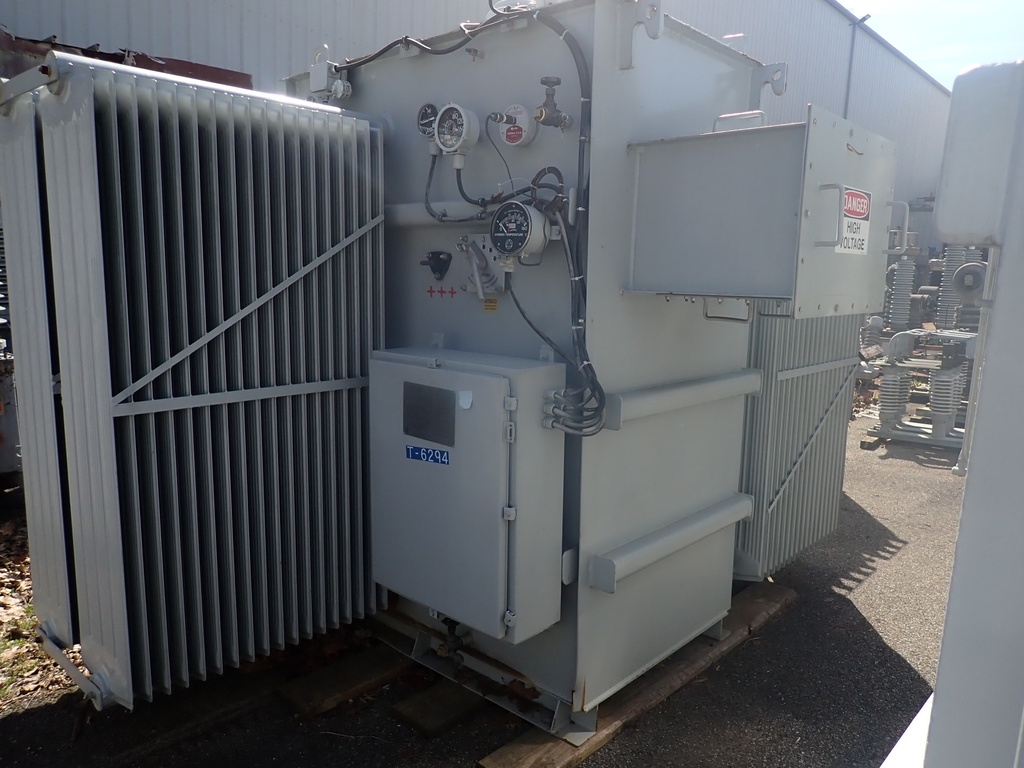

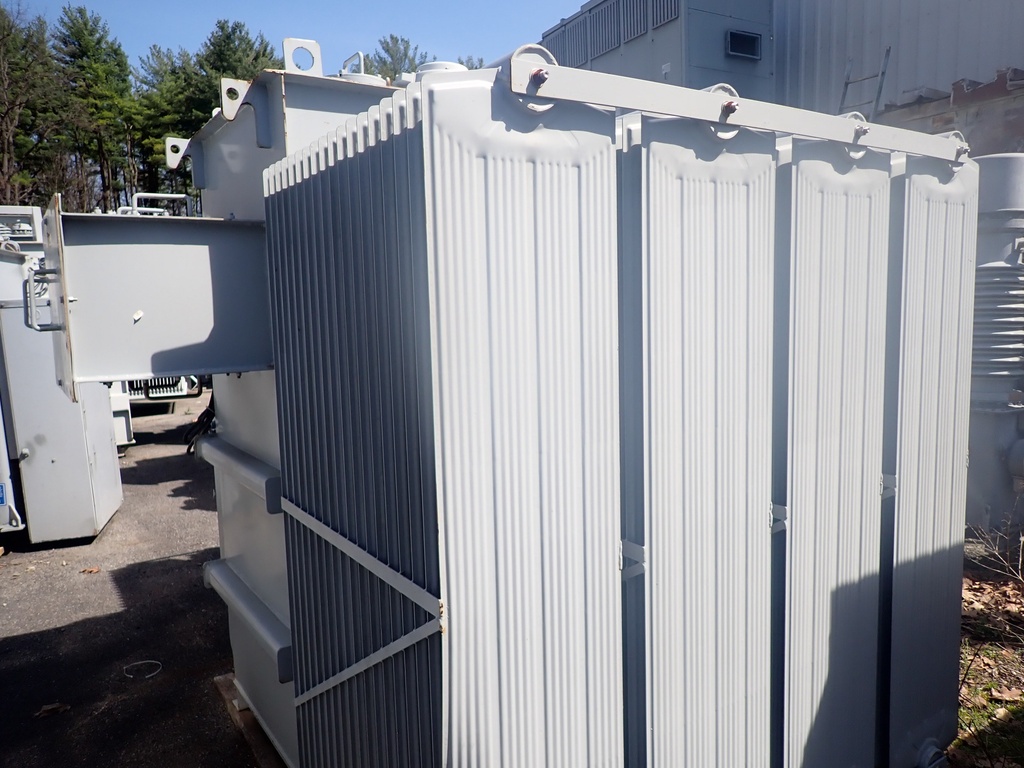

3325 KVA Pennsylvania Transformer, 4160 Delta, 2400 Delta, Oil Filled
Substation Transformer
Product Number:
046311
Full Product Description

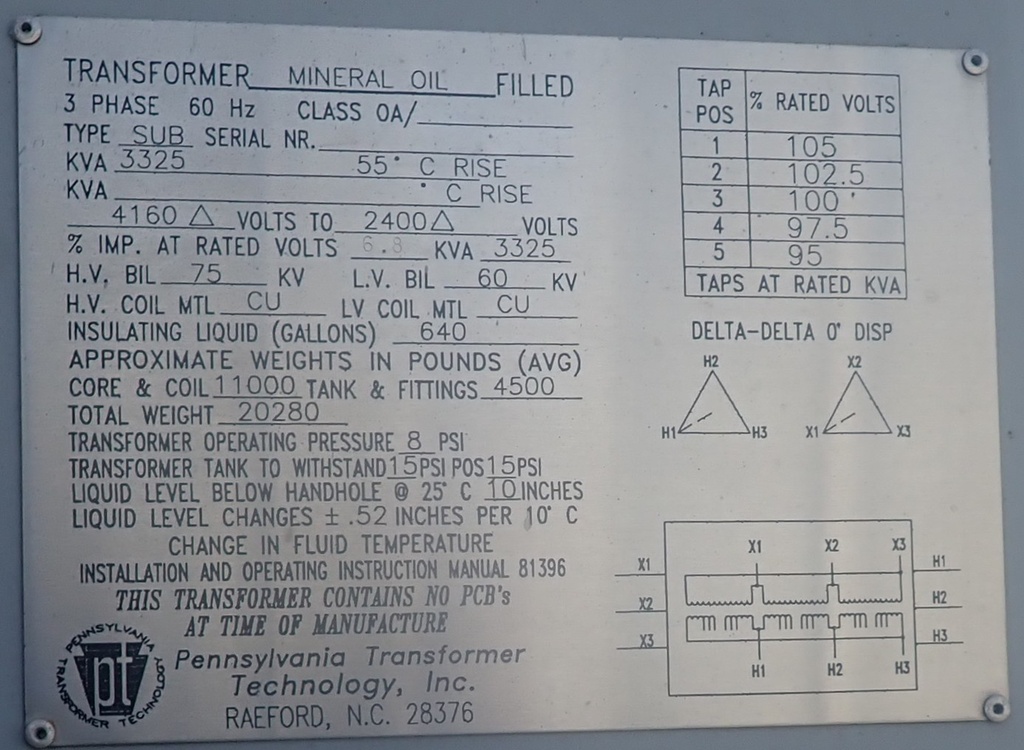

3325 KVA Pennsylvania Transformer, 60 hz, 3 Phase, Class OA,
55 Deg C Rise, All Copper, Liquid Temp Gauge, Liquid Level Gauge, Tap Changer,
Winding Temp Gauge, Pressure Relief Device, Full Length ATC on HV and LV, IMP 6.8%
HV: 4160 Delta 75 kV BIL
LV: 2400 Delta 60 kV BIL
TAPS- 4368-4264-4160-4056-3952
Total Weight: 20280 lbs
Core & Coils: 11000 lbs
Tank & Fittings: 4500 lbs
Liquid (Oil): 4780 lbs (640 gal)
DIMS: 87" H x 103" W x 117" D
