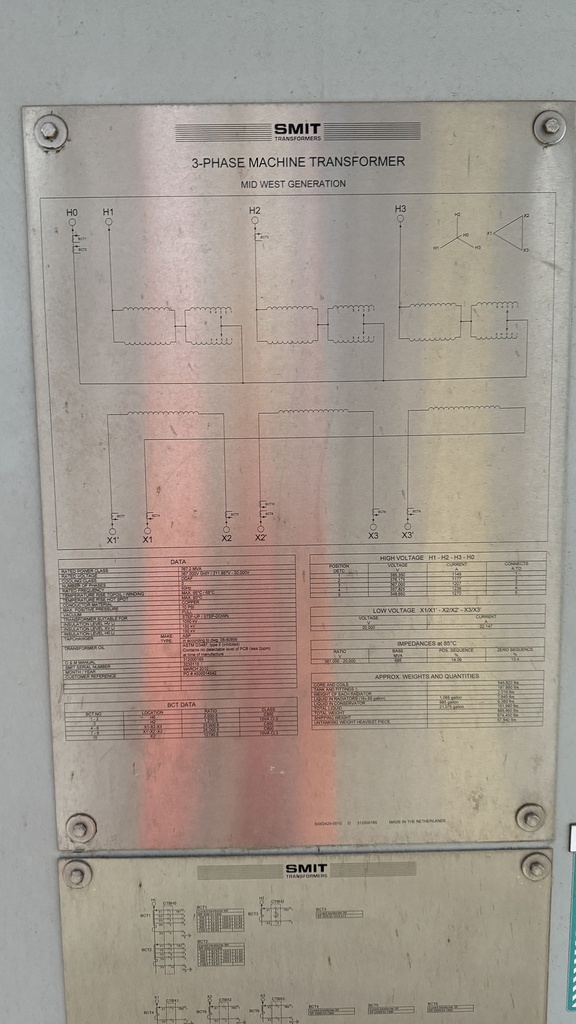

767.2 MVA 367000 GrdY / 211887v - 20000D SMIT Substation Machine Transformer

ONE (1) 767.2 MVA SMIT STEP UP/STEP DOWN SUBSTATION MACHINE TRANSFORMER,
3 PH, 60 HZ, ODAF, OIL CONSERVATION SYSTEM, 14.09% IMPEDANCE,
ALL COPPER WINDINGS, 65 DEG C RISE, 80 DEG C HOT SPOT RISE,
LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE, WINDING TEMP GAUGE,
PRESSURE GAUGE, PRESSURE RELIEF DEVICE, DRAIN & SAMPLE VALVES,
TOP-TOP BUSHINGS,

HV: 367000 GROUND WYE BIL: 1050 KV
LV: 20000 DELTA BIL: 150 KV

TAPS: 385350-376175-367000-357825-348650

TOTAL WEIGHT: 885460 LBS
CORE & COILS: 545820 LBS
TANK & FITT.: 187660 LBS
LIQUID-OIL: 151980 LBS (21075 GAL)
SHIPPING WEIGHT: 674450 LBS
