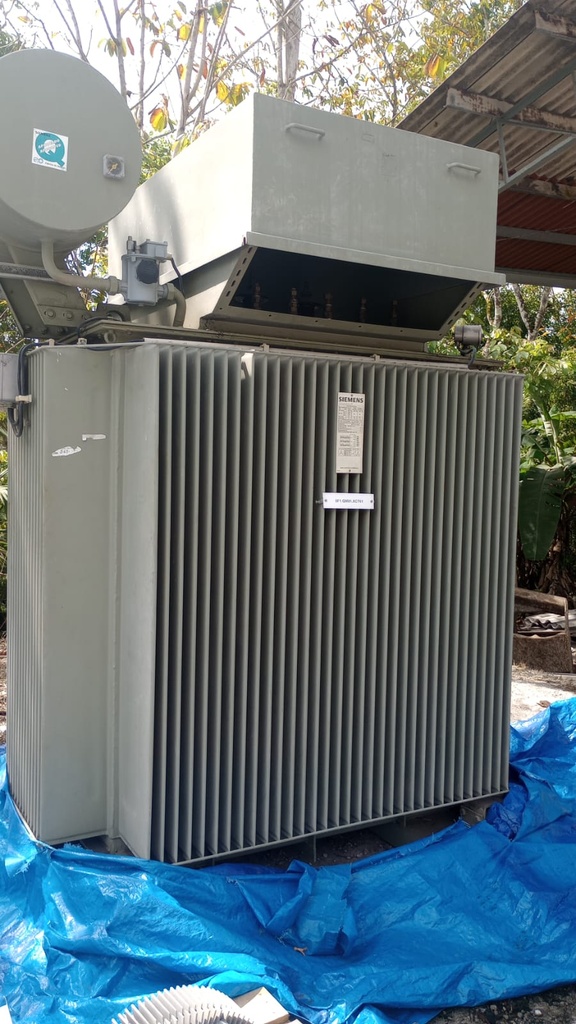

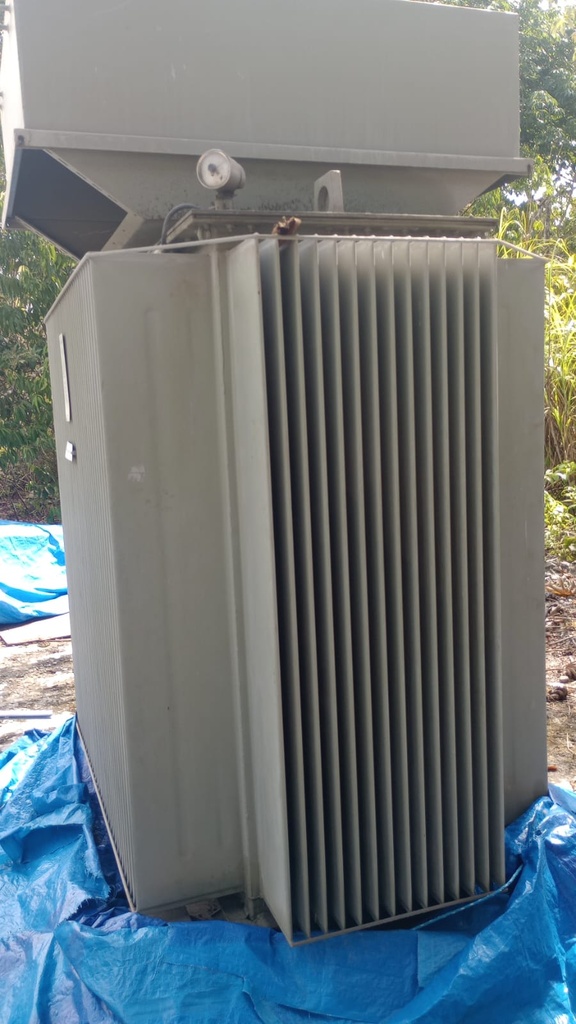

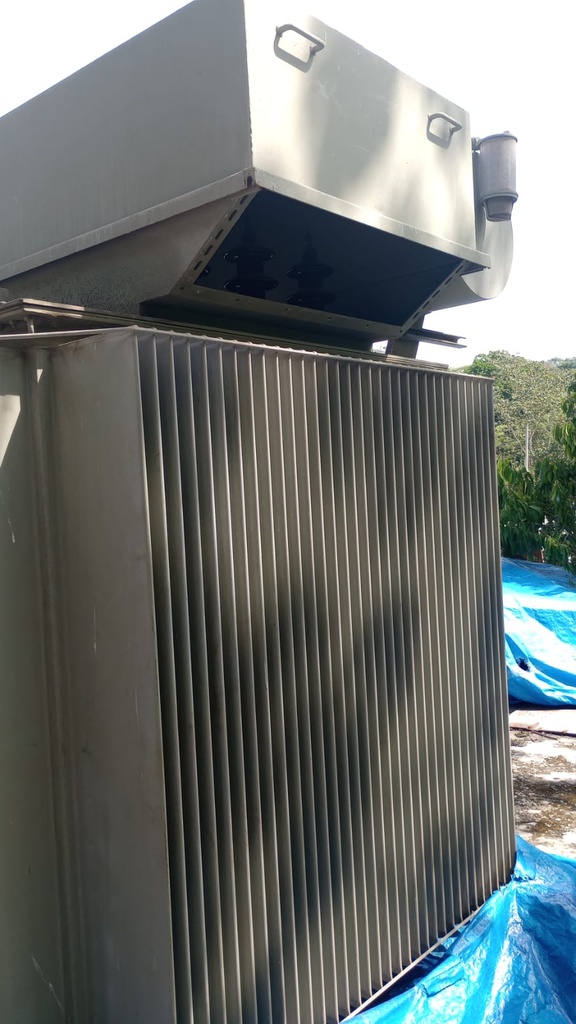

2500 kVA 13800D - 2200Y Siemens Substation Transformer

KVA: 2500 KVA
Manufacturer: Siemens
Primary - First: 13800 V
Primary - First Vector: Delta
Secondary - First: 2200 V
Secondary - First Vector: Wye

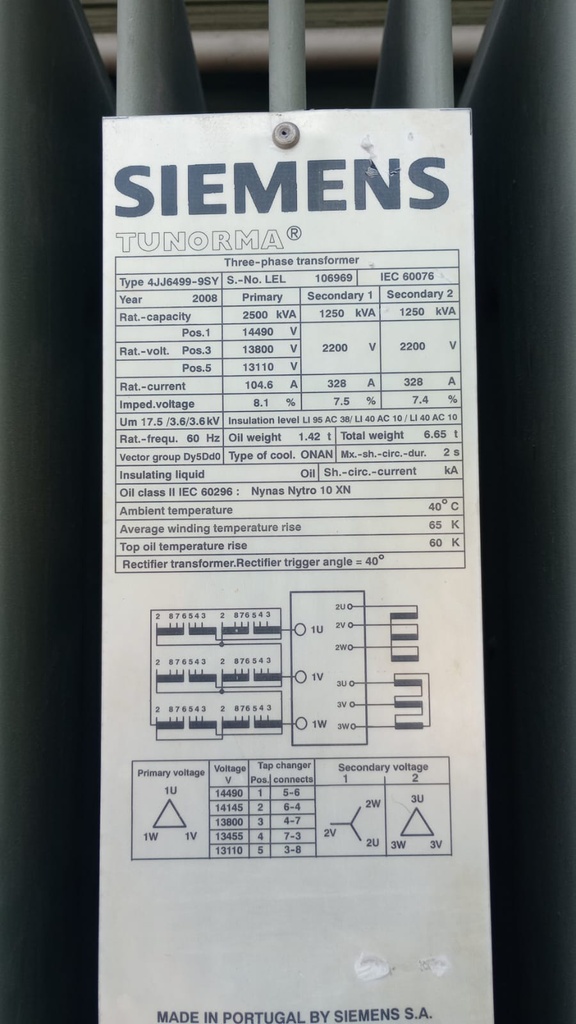

Type: 4JJ6499-9SY
Phase: 3
HERTZ: 60
CLASS: ONAN
TEMPERATURE RISE: 65 °C
IMPEDANCE: 8.1
Primary - First BIL: 95 kV
Secondary - First BIL: 40 kV
STANDARD TAPS: 14490-14145-13800-13455-13110
HV BUSHING LOCATION: Top
LV BUSHING LOCATION: Top
TOTAL WEIGHT: 14660 lb
FLUID TYPE: Mineral Oil
