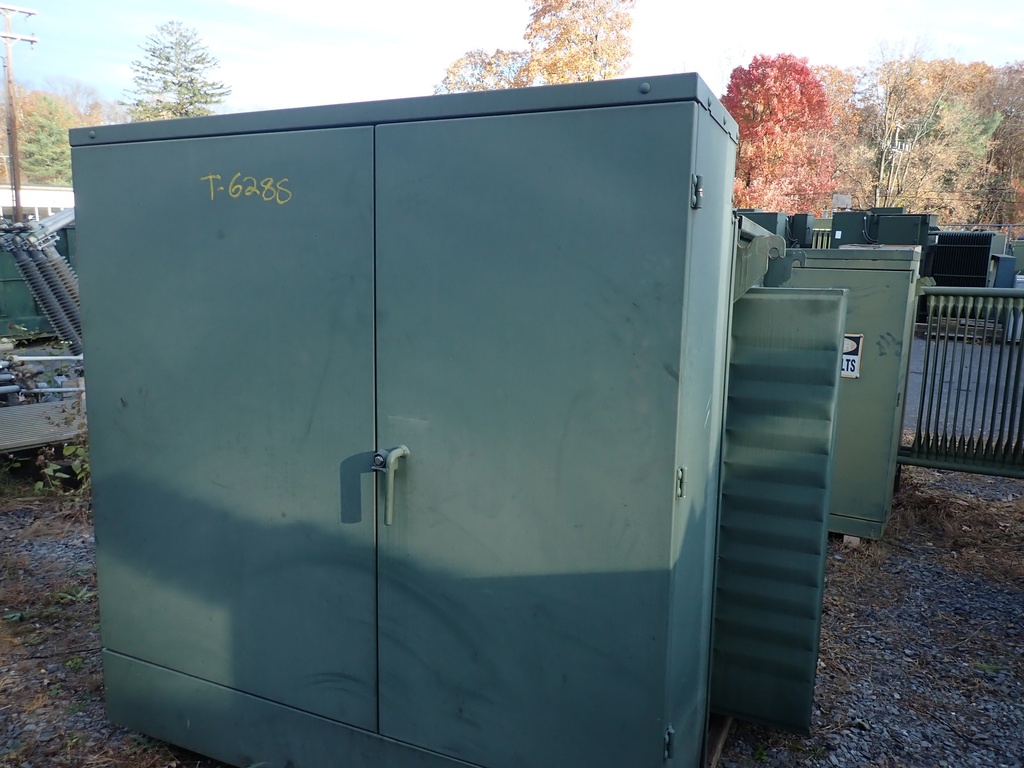

1500 KVA 12470 Delta 480Y/277, Cooper Pad-Mount Transformer, DF/RF, R-TEMP
Pad-Mount Transformer
Product Number:
046212
Full Product Description
1500 KVA Cooper Pad-Mount Transformer, 60hz, 3 Ph,

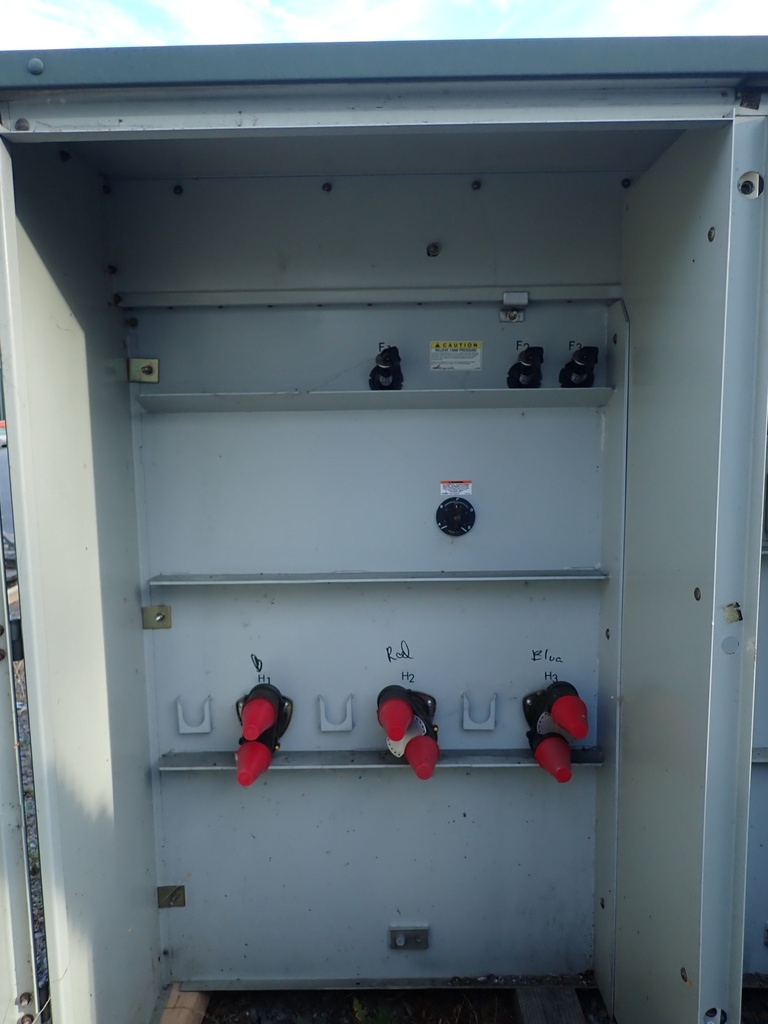

All Aluminum Windings, Dead Front, Radial Feed,

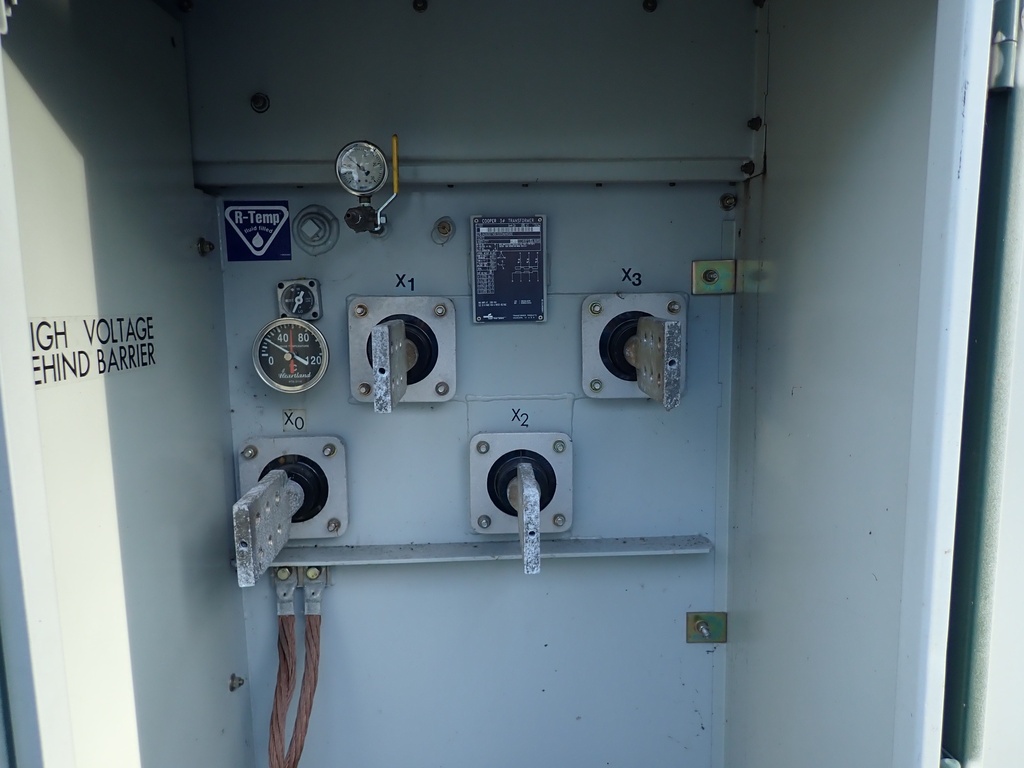

Liquid Level Gauge, Liquid Temp Gauge, Vacuum Gauge with PRV,
Drain and Sample Valve, Bayonet Fuses, 6% Imp

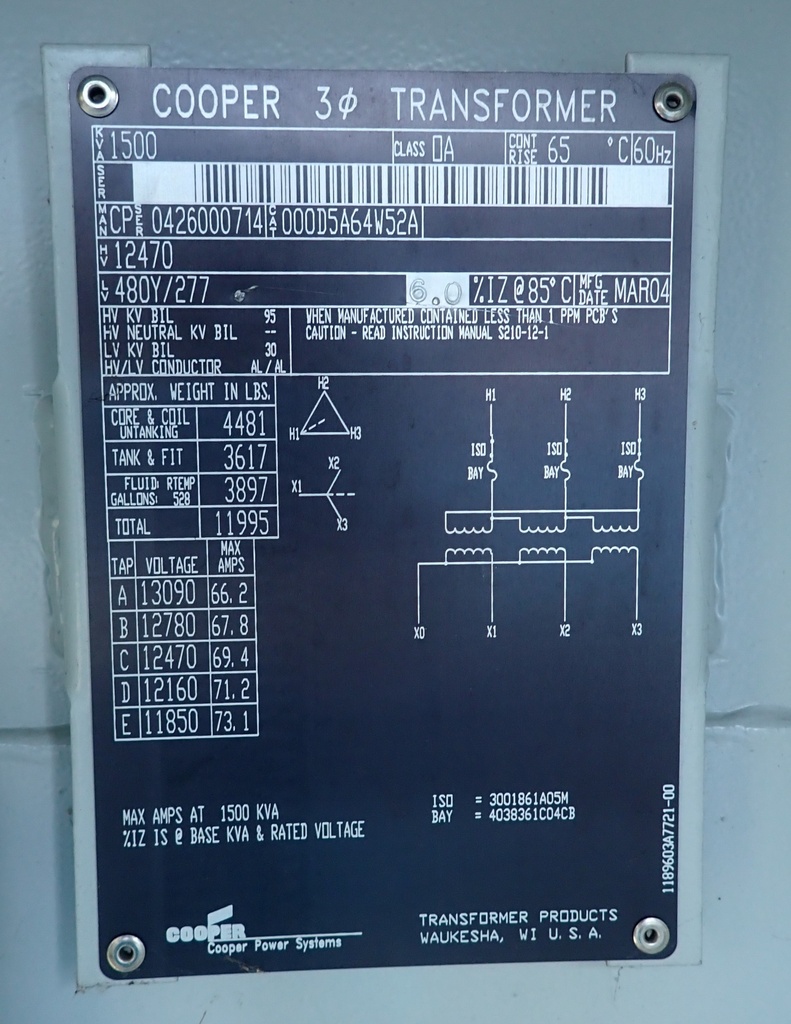

HV: 12470 Delta 95kV BIL
LV: 480/277 Wye 30kV BIL
TAPS: 13090-12780-12470-12160-11850
Total Weight: 11995 lbs
Core & Coils: 4481 lbs
Tank & Fittings: 3617 lbs
Liquid (R-TEMP): 3897 lbs (528 GAL)
77"H x 97"W x 74"D
