1000 KVA 14400 Delta 480Y/277, Westinghouse Pad-Mount Transformer, DF/RF,
Pad-Mount Transformer
Product Number:
046211
Full Product Description

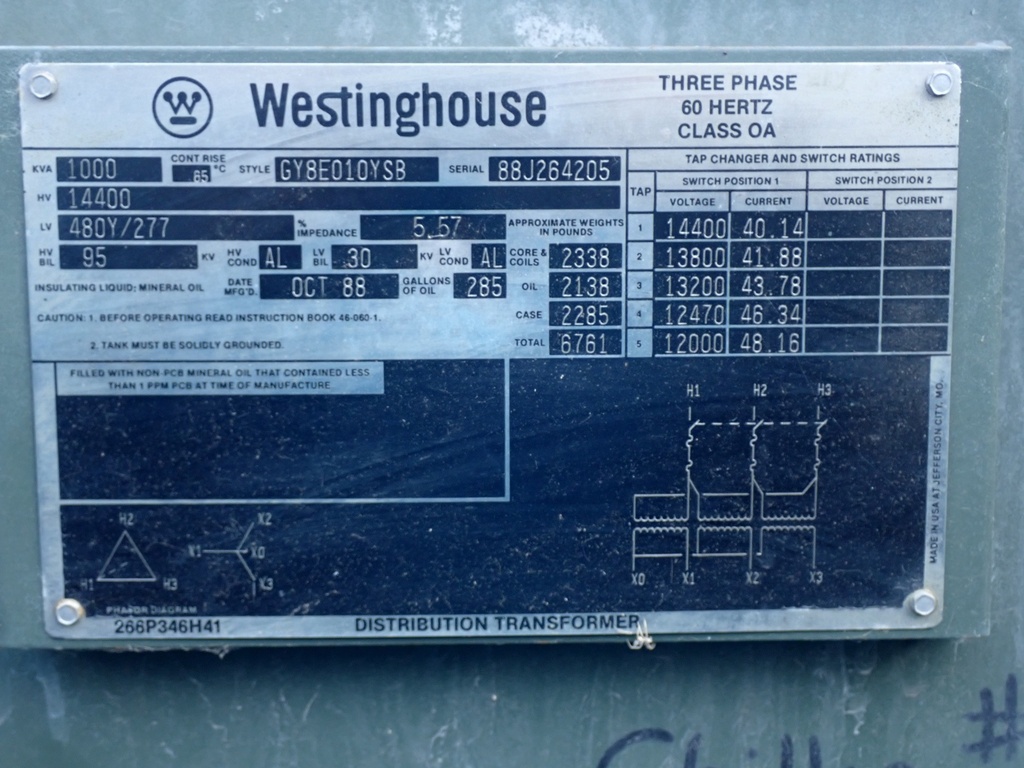

1000 Kva Westinghouse Pad-Mount Transformer, 3 Ph, 60hz,
Class OA, Dead Front, Radial Feed, All Aluminum Windings,
Liquid Temp Gauge, Liquid Level Gauge, Tap Changer,
Drain and Sample Valve, Bayonet Fuses, 5.57 % Imp
HV: 14400 Delta 95 kV BIL
LV: 480/277 Wye 30 kV BIL
Taps: 14400-13800-13200-12470-12000
Total Weight: 6761 lbs
Core & Coils: 2338 lbs
Tank & Fittings: 2285 lbs
Liquid (Oil): 2138 lbs (285 Gal)
68"H x 112"W x 71"D
