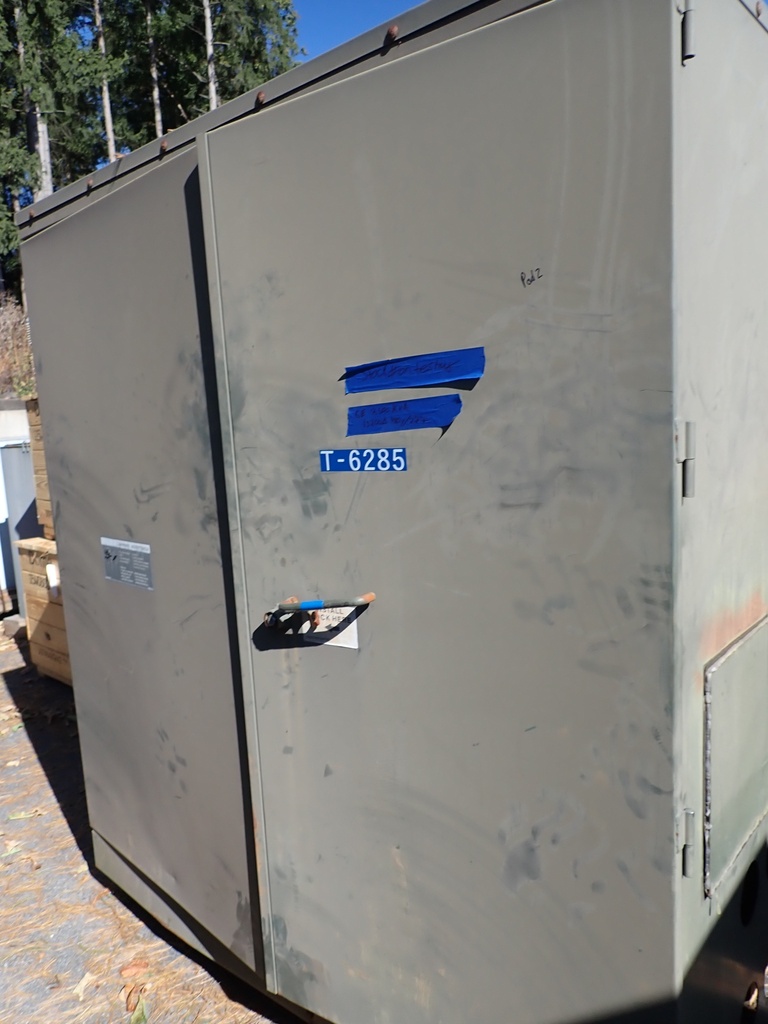

2500 KVA 13200 Delta 480Y/277 GE Pad-Mount Transformer, DF/RF
Pad-Mount Transformer
Product Number:
046169
Full Product Description

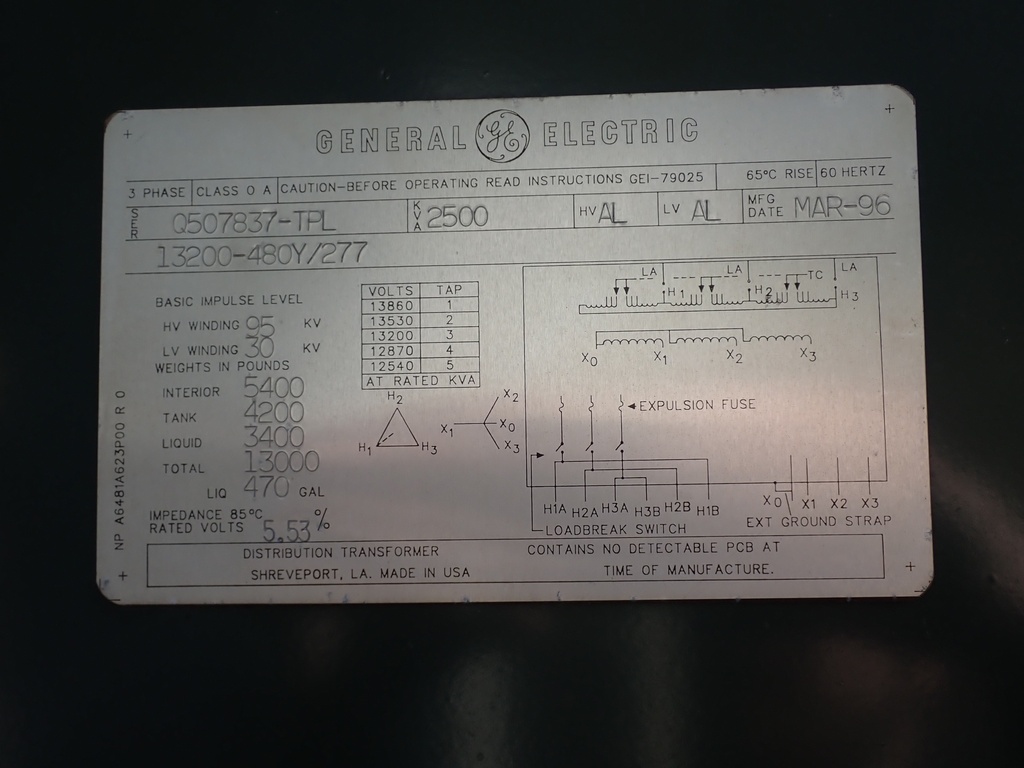

2500 KVA GE Pad-Mount Transformer, 3 Ph, 60hz, Class OA
65 Deg C Rise, All Aluminium Windings, Dead Front, Radial Feed,
Drain and Sample Valve, Liquid Temp Gauge, Liquid Level Gauge, 5.53% Imp,

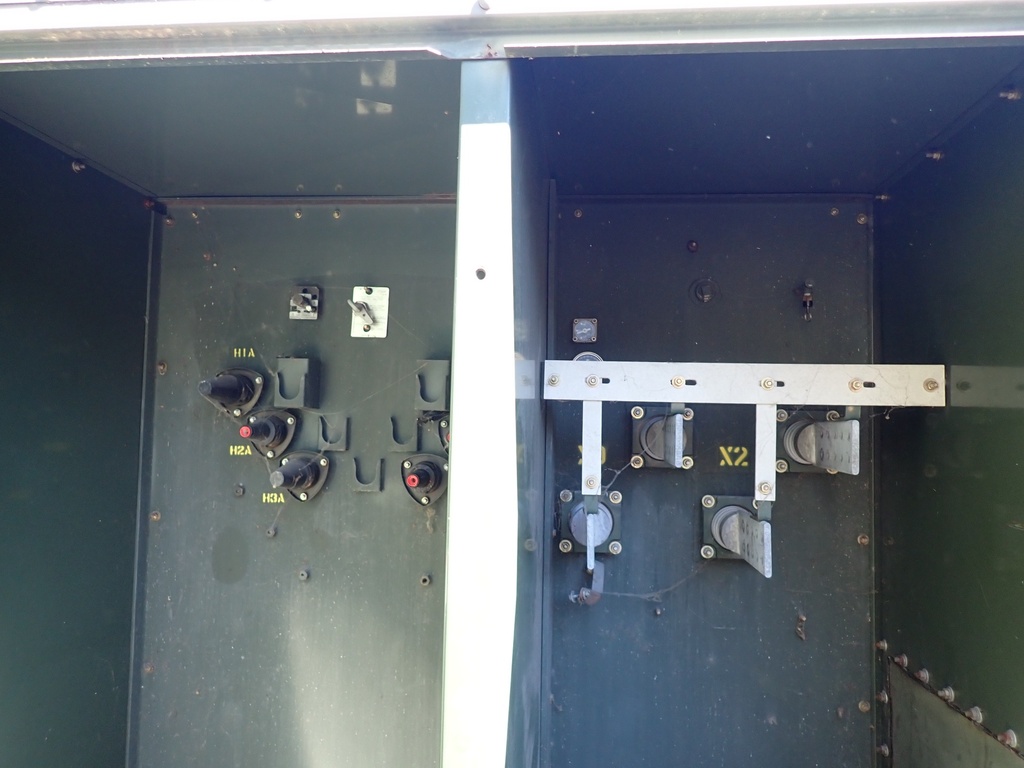

Tap Changer, Pressure Relief Valve, Load-Break Switch with Expulsion Fuse
Taps: 13860-13530-13200-12870-12540
HV: 13200 Delta 95kV BIL
LV: 480Y/277 Wye 30kV BIL
Total Weight: 15000 lbs
Core & Coils: 5400 lbs
Tank & Fittings: 4200 lbs
Liquid (Oil): 3400 lbs (170 Gal)
81"H x 91"L x 88.5"
