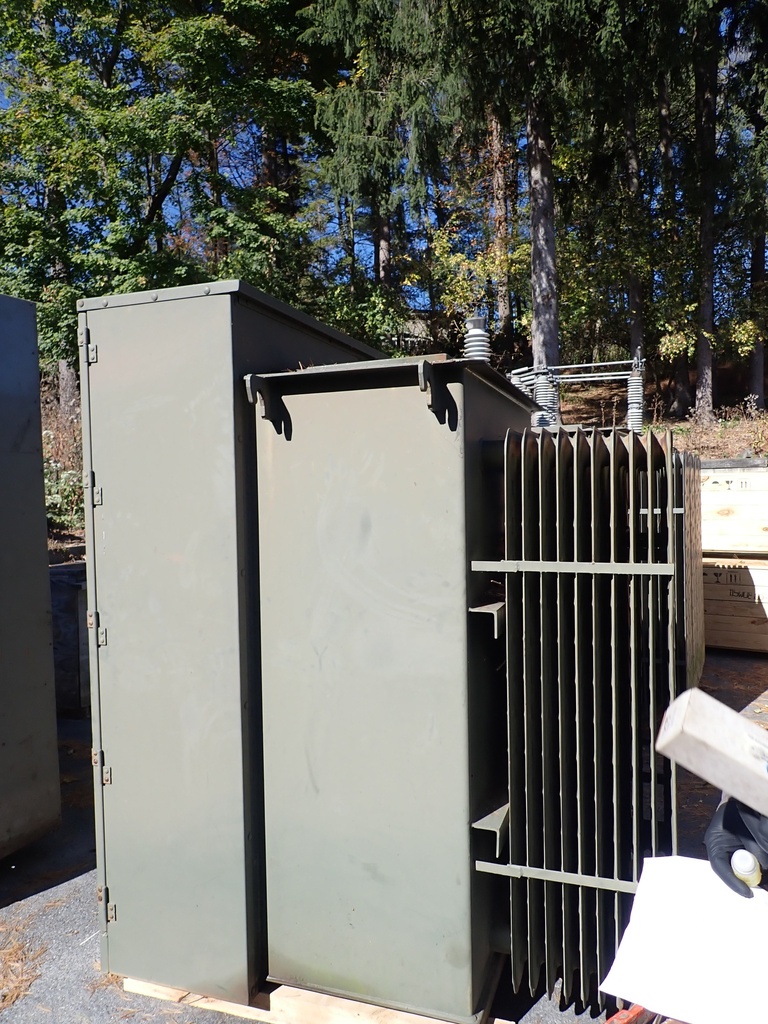

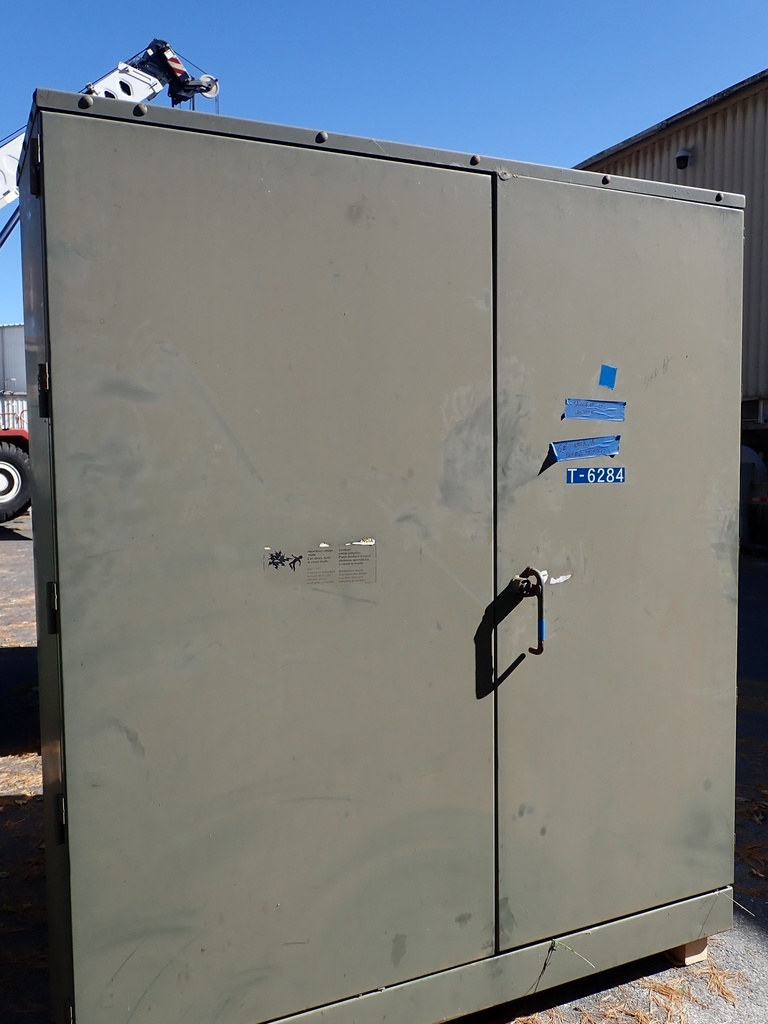

1000 KVA 12470 Delta 480Y/277 GE Pad-Mount Transformer, LF/LF
Pad-Mount Transformer
Product Number:
046168
Full Product Description

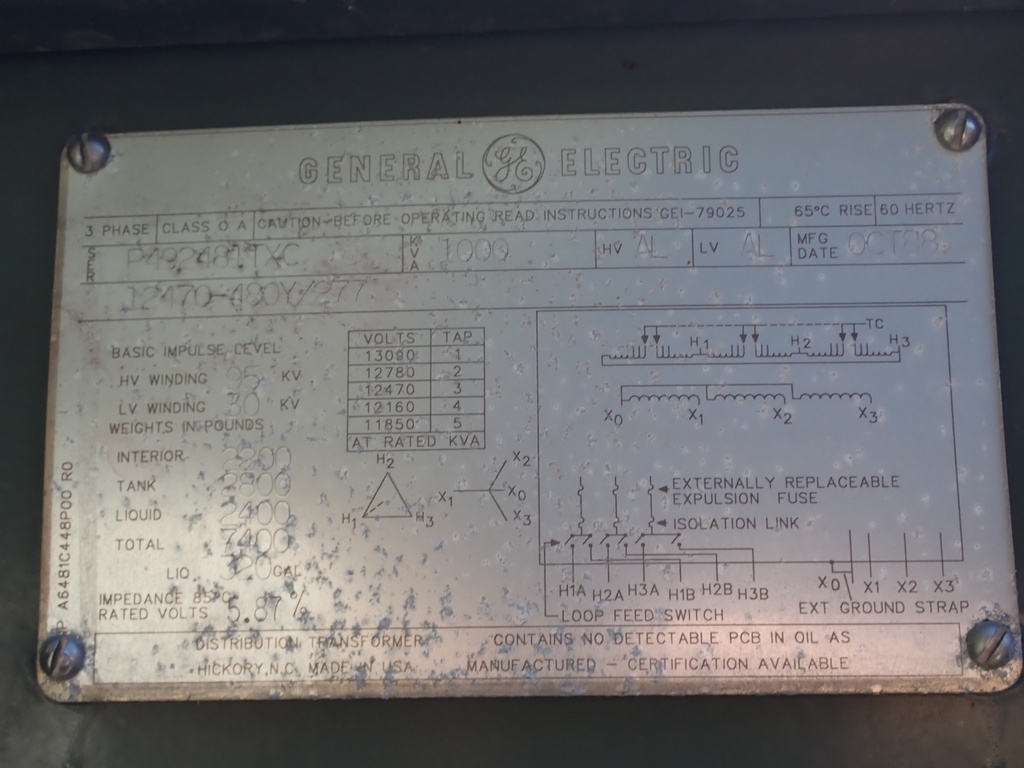

1000 KVA GE Pad-Mount Transformer, 3 Ph, 60hz

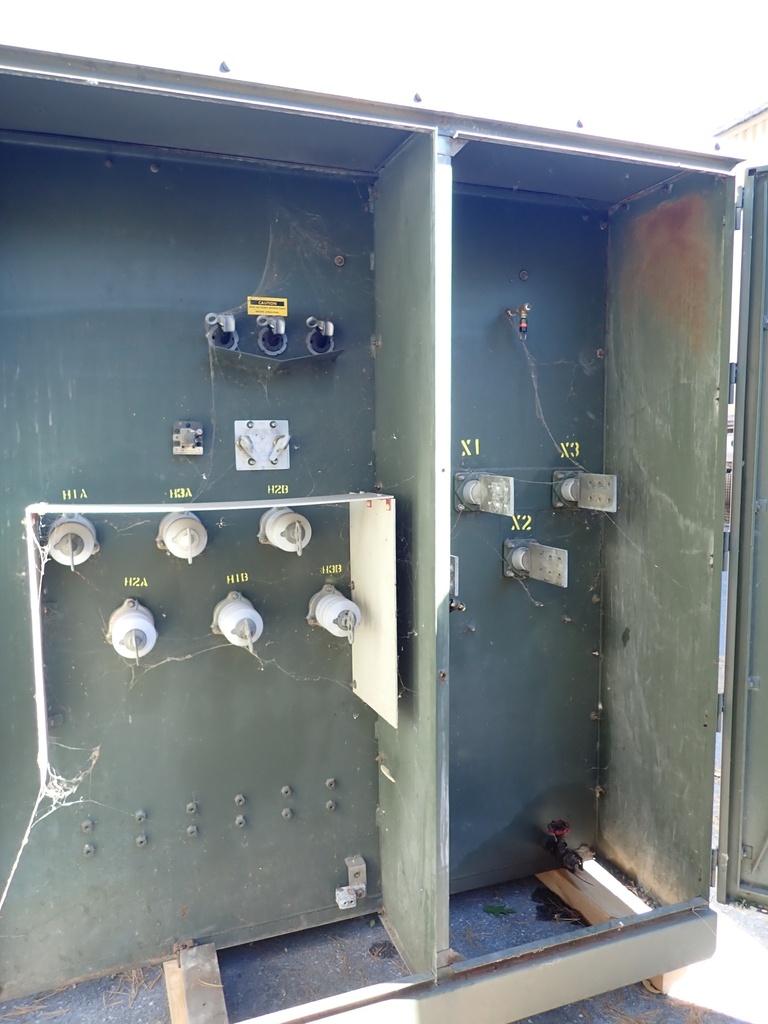

Class OA, 65 Deg C Rise, Live Front, Loop Feed, All Aluminium Windings,

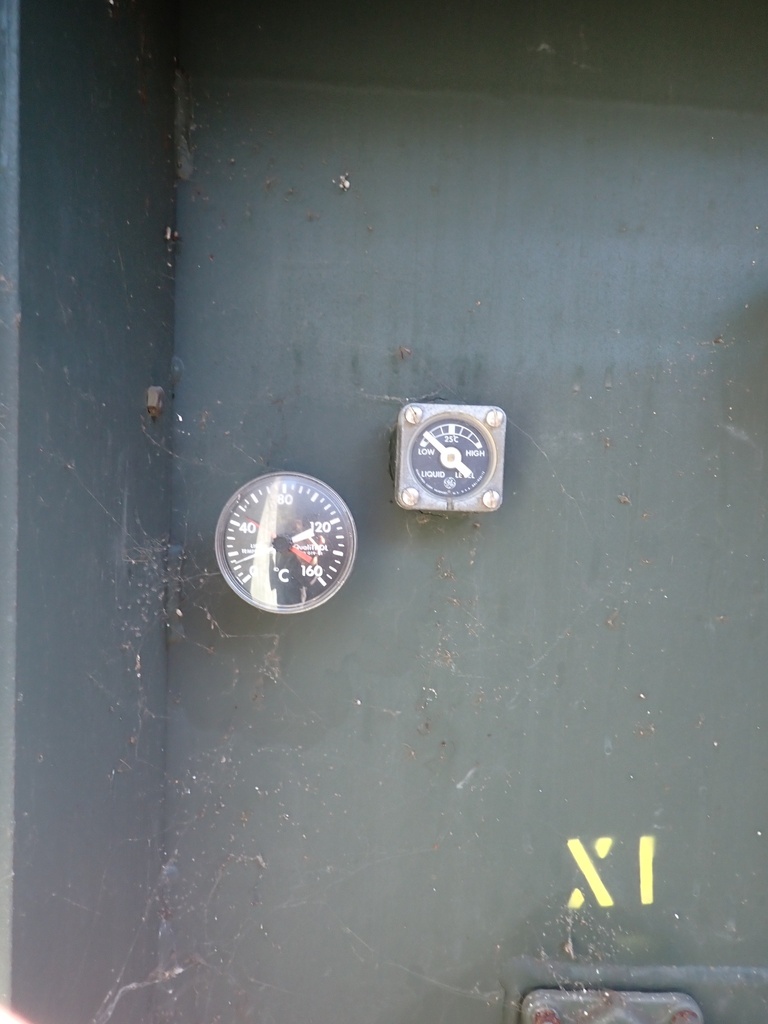

Loop Feed Switch, Tap Changer, Expulsion Fuse, Liquid Temp Gauge,
Liquid Level Gauge, Drain and Sample Valve, Pressure Relief Valve, 5.87% Imp
Taps: 13090-12780-12470-12160-11850
HV: 12470 Delta 95kV BIL
LV: 480Y/277 30kV BIL
Total Weight: 7400 lbs
Core & Coils: 2200 lbs
Tank & Fittings: 2800 lbs
Liquid (Oil): 2400 lbs (320 Gal)
84"H x 91"L x 88.5"D
