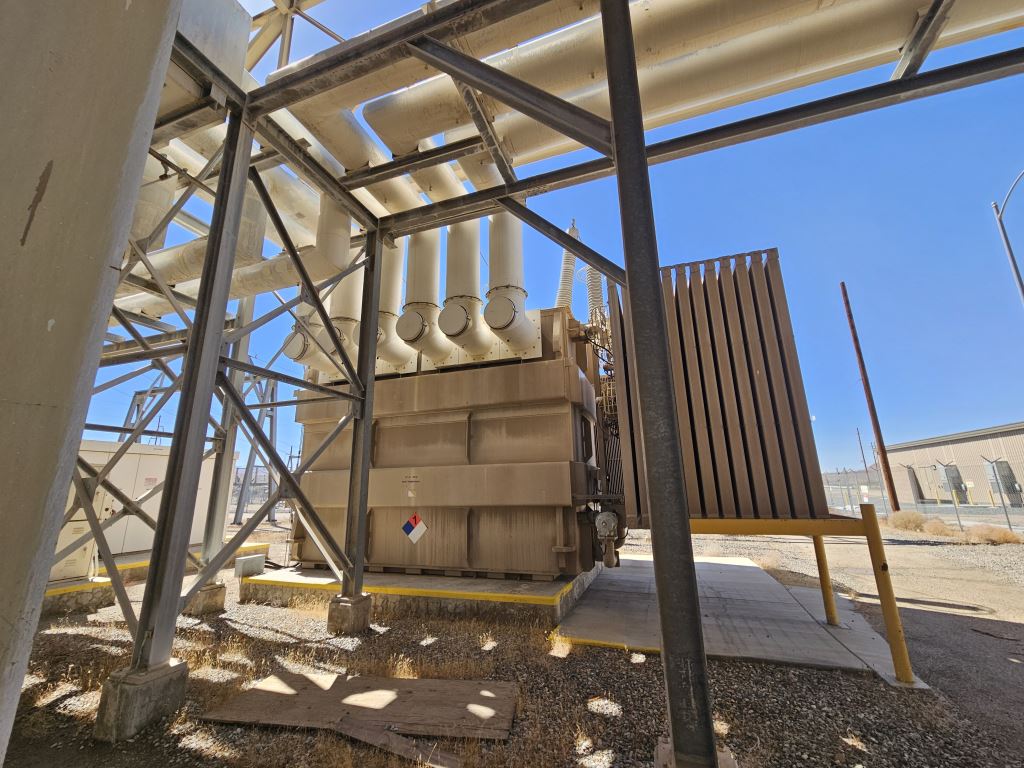

114/152/180/212 MVA, 230000GRDY - 13800D x 13800D GE Split Secondary Substation Transformer

KVA: 114000/152000/180000/212000 KVA

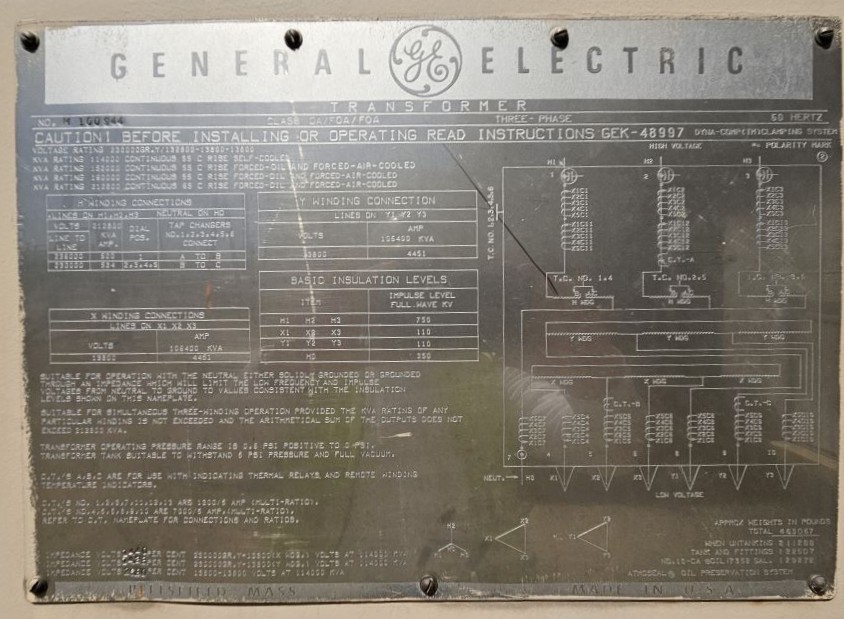

Manufacturer: General Electric
Primary - First: 230000 V
Primary - First Vector: Wye
Secondary - First: 13800 V
Secondary - First Vector: Delta
Phase: 3
HERTZ: 60
CLASS: OA/FOA/FOA
TEMPERATURE RISE: 55/65 °C
IMPEDANCE: 14.40/14.38
Multiple Secondary?: Yes
Primary - First BIL: 750 kV
Secondary - Second: 13800 V
Secondary - Second Vector: Delta
Secondary - First BIL: 110 kV
Secondary - Second BIL: 110 kV
HV BUSHING LOCATION: Top
LV BUSHING LOCATION: Side
CORE & COIL WEIGHT: 211288 lb
TANK & FITTINGS WEIGHT: 122507 lb
FLUID WEIGHT: 120272 lb
FLUID GALLONS: 17358 gal (US)
TOTAL WEIGHT: 463057 lb
FLUID TYPE: Mineral Oil
LIQUID LEVEL GAUGE: Yes
DRAIN & TEST VALVE: Yes
TEMPERATURE WINDING GAUGE: Yes
Conservator: Yes
