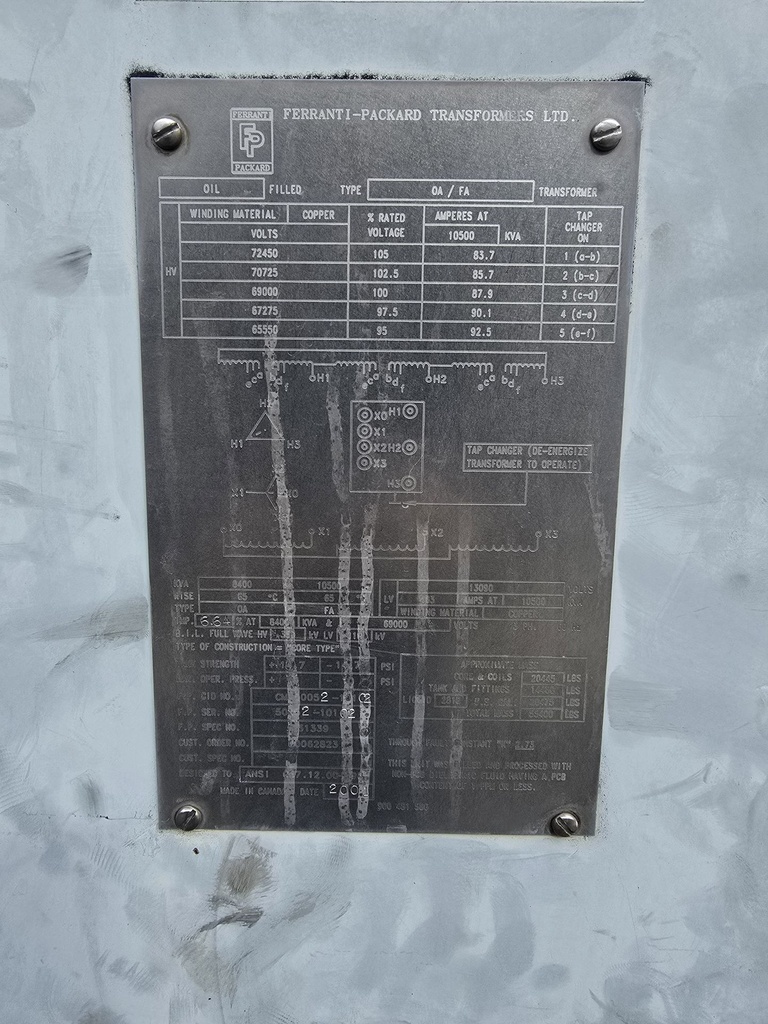

8.4/10.5 MVA 69000D - 13090Y Ferranti-Packard Substation Transformer
Product Number:
046087
Full Product Description
One (1) 8.4/10.5 MVA Ferranti-Packard Substation Transformer
60 Hz, 3 Ph, . % Impedance, 65 Deg C Rise, OA/FA,
All Copper Windings, Winding Temp Gauge, Liquid Temp
Gauge, Liquid Level Gauge, Vacuum Pressure Gauge, Pressure
Release Valve, Drain & Sample Valve
HV: 69000 Delta BIL: 350 KV
LV: 13090 Wye BIL: 110 KV
Taps: 72450-70725-69000-67275-65550
Total Weight: 55400 Lbs
Core & Coils: 20445 Lbs
Tank & Fitt: 14480 Lbs
Liquid-Oil: 20475 Lbs (2818 Gal)
Dimensions: 148" H x 111"W x 144"D
60 Hz, 3 Ph, . % Impedance, 65 Deg C Rise, OA/FA,
All Copper Windings, Winding Temp Gauge, Liquid Temp
Gauge, Liquid Level Gauge, Vacuum Pressure Gauge, Pressure
Release Valve, Drain & Sample Valve
HV: 69000 Delta BIL: 350 KV
LV: 13090 Wye BIL: 110 KV
Taps: 72450-70725-69000-67275-65550
Total Weight: 55400 Lbs
Core & Coils: 20445 Lbs
Tank & Fitt: 14480 Lbs
Liquid-Oil: 20475 Lbs (2818 Gal)
Dimensions: 148" H x 111"W x 144"D
