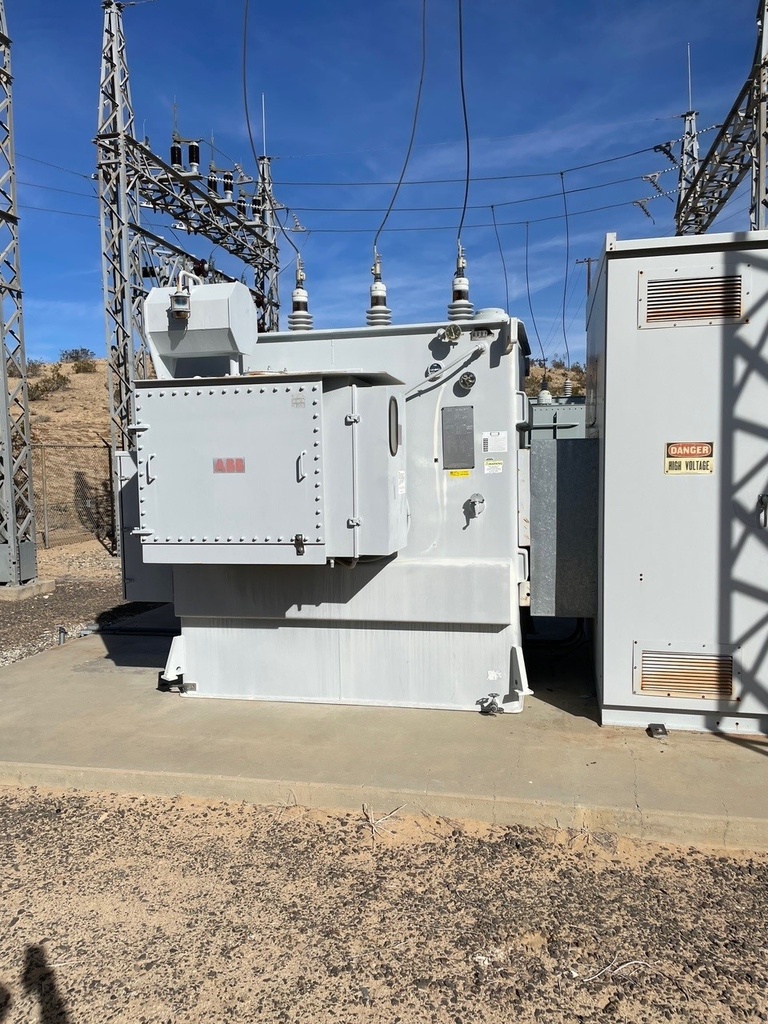

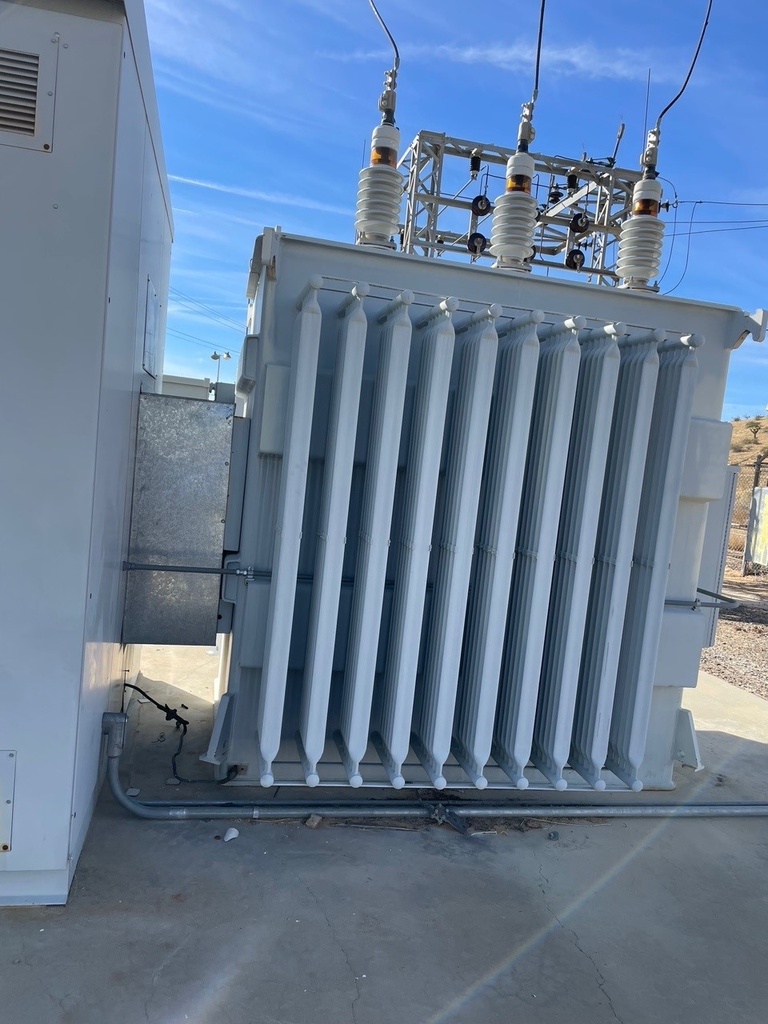

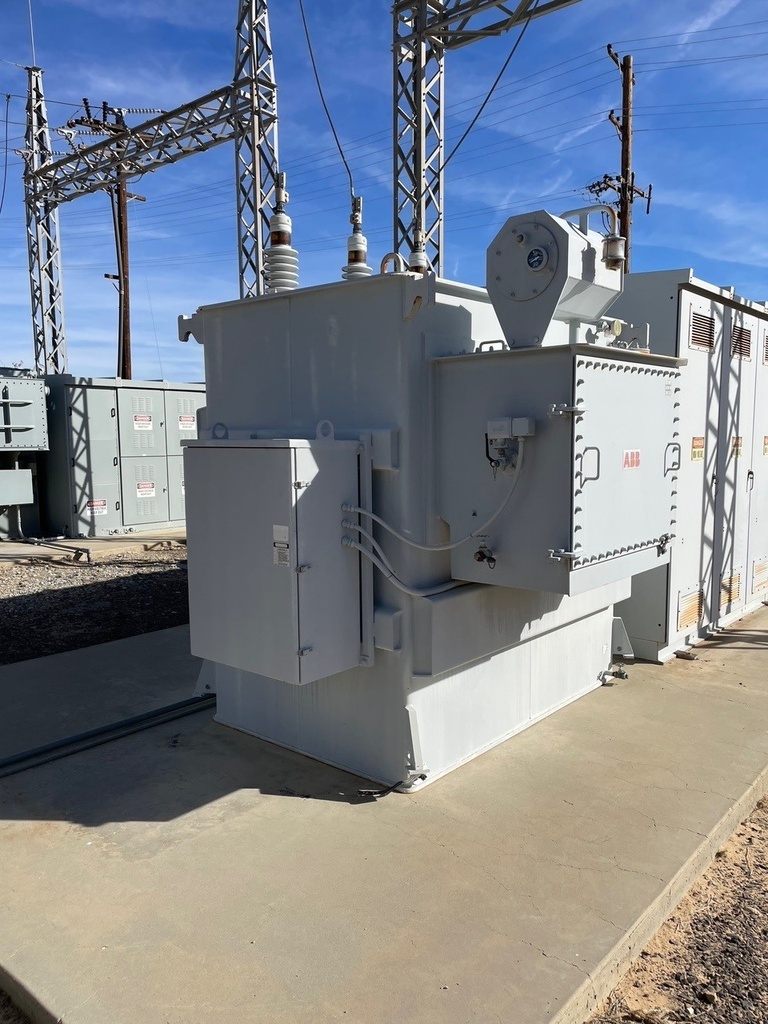

2500 KVA, 34500D - 12470Y ABB LTC Substation Transformer

JVT-3932

One (1) 2500 KVA ABB Load Tap Changing Substation Transformer
3 Ph, 60 Hz, OA, Type RSL, 65 Deg C Rise,
6.75% Impedance, All Copper Windings, Liquid Temp Gauge,
Liquid Level Gauge, Winding Temp Gauge, Pressure Gauge,
Pressure Release Valve, Drain & Sample Valve

HV: 34500 Delta BIL: 200 KV
TAPS: 36230-35360-34500-33640-32760
LV: 12470 Wye/7200 BIL: 110 KV
TAPS: +/- 0.625% in 32 Steps

Total Weight: 35930 LBS
Core & Coils: 14301 LBS
Tank & Fitt.: 8734 LBS
Liquid-Oil: 12895 LBS (1719 GAL)

Dimensions: Coming Soon
