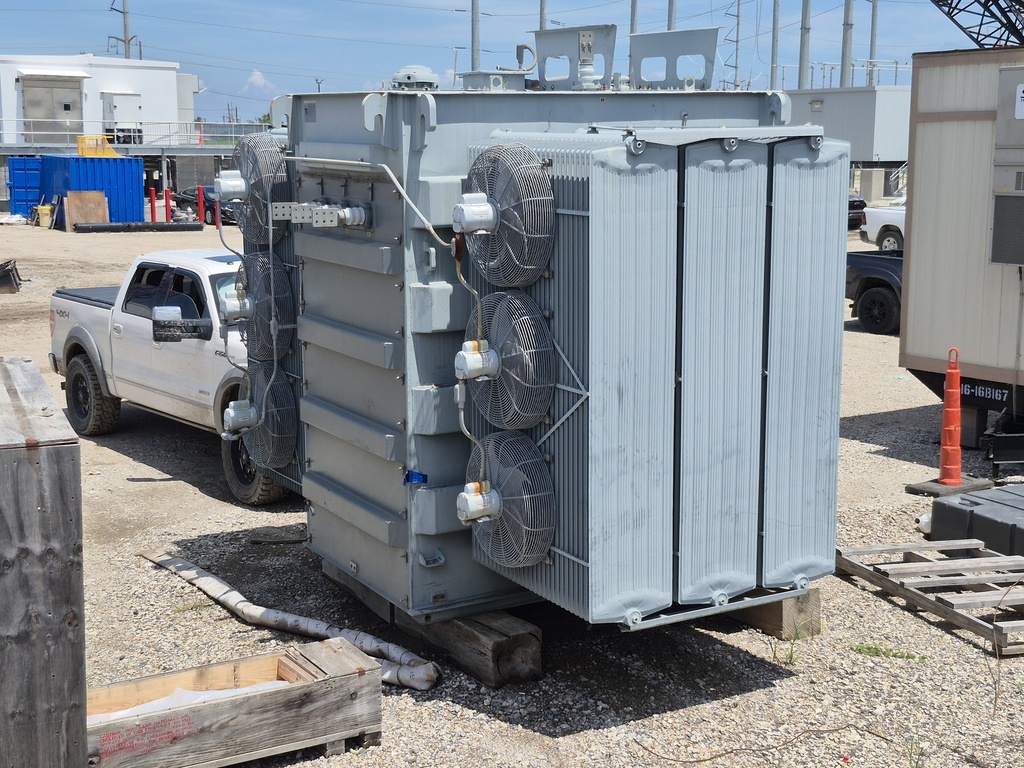

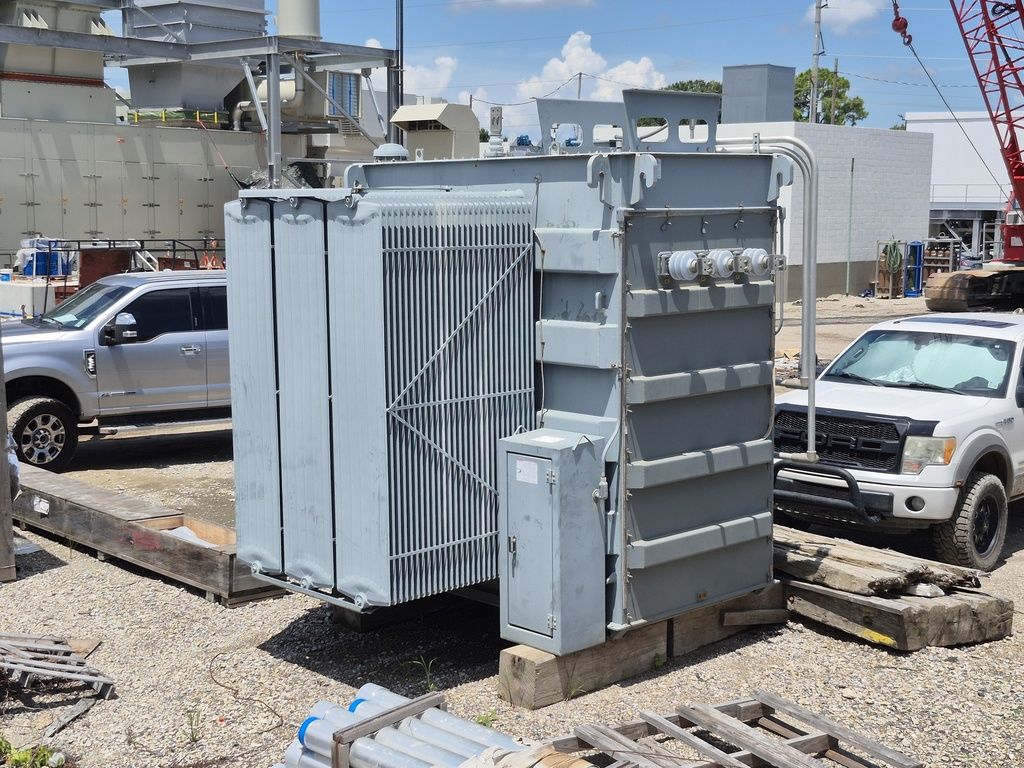

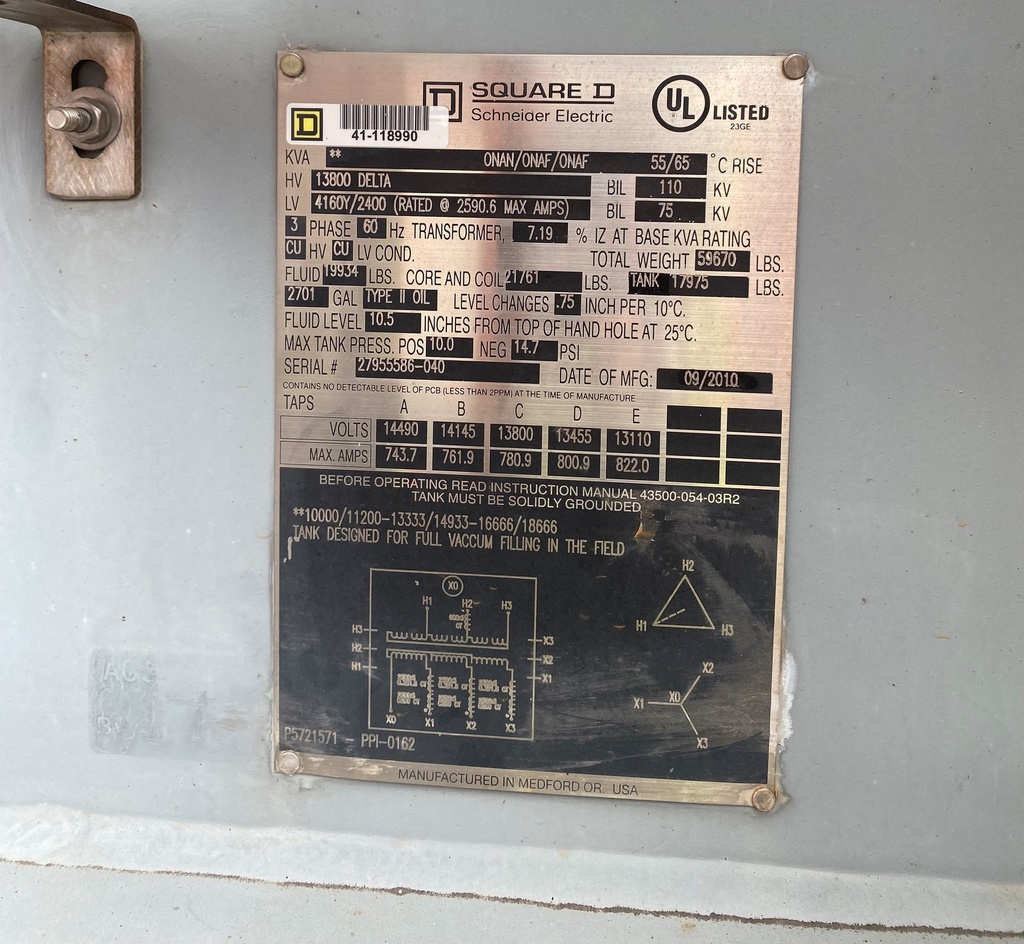

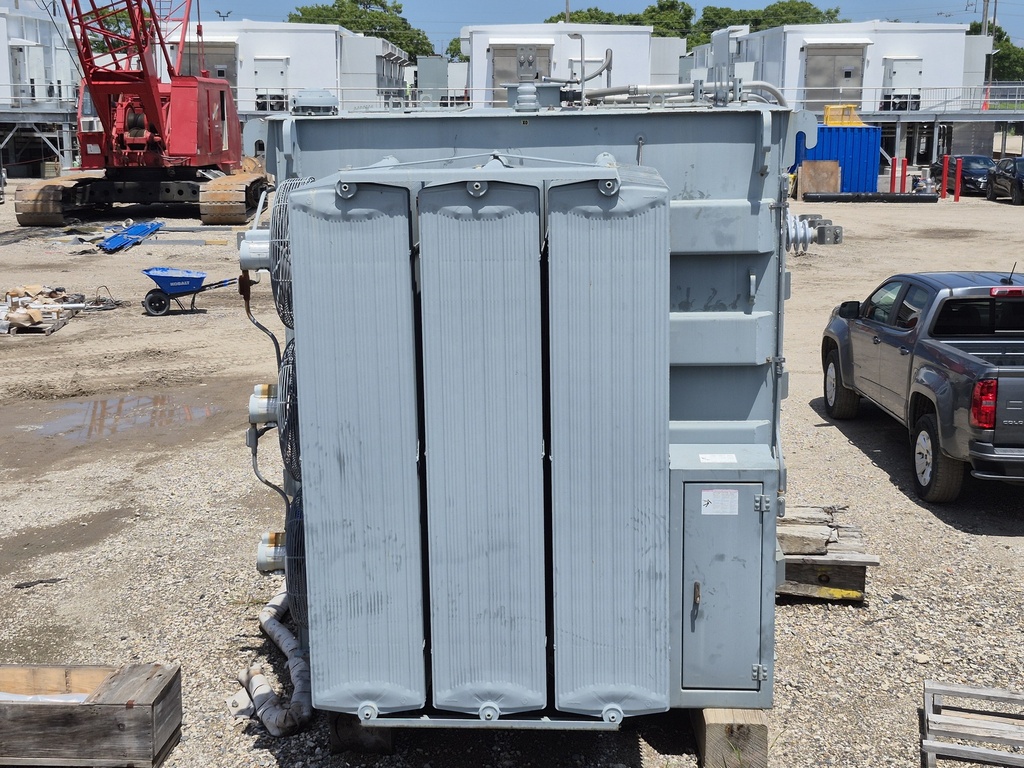

10 MVA 13.8KV D - 4160Y Square D Substation Transformer
Product Number:
046060
Full Product Description
T-6333
One (1) 10/11.2/13.3/14.9/16.6/18.6 MVA Square D Substation Transformer
3 Ph, 60 Hz, 55/65 Deg C rise, ONAN/ONAF/ONAF, 7.19% Impedance,
All Copper Windings, Full Length ATC's, Winding Temp Gauge,
Liquid Temp Gauge, Liquid Level Gauge, Pressure Gauge,
Pressure Release Device, Drain & Sample Valve
HV: 13800 Delta BIL: 110 KV
LV: 4160Wye/2400 BIL: 75 KV
Taps: 14490-14145-13800-13455-13110
Total Weight: 59670 lbs
Core & Coils: 21761 lbs
Tank & Fitt.: 17975 lbs
Liquid-Oil: 19934 lbs (2701 Gal)
Dimensions (Shipping & Overall): 150.5"W x 163.25"L x 167.25"H
One (1) 10/11.2/13.3/14.9/16.6/18.6 MVA Square D Substation Transformer
3 Ph, 60 Hz, 55/65 Deg C rise, ONAN/ONAF/ONAF, 7.19% Impedance,
All Copper Windings, Full Length ATC's, Winding Temp Gauge,
Liquid Temp Gauge, Liquid Level Gauge, Pressure Gauge,
Pressure Release Device, Drain & Sample Valve
HV: 13800 Delta BIL: 110 KV
LV: 4160Wye/2400 BIL: 75 KV
Taps: 14490-14145-13800-13455-13110
Total Weight: 59670 lbs
Core & Coils: 21761 lbs
Tank & Fitt.: 17975 lbs
Liquid-Oil: 19934 lbs (2701 Gal)
Dimensions (Shipping & Overall): 150.5"W x 163.25"L x 167.25"H
