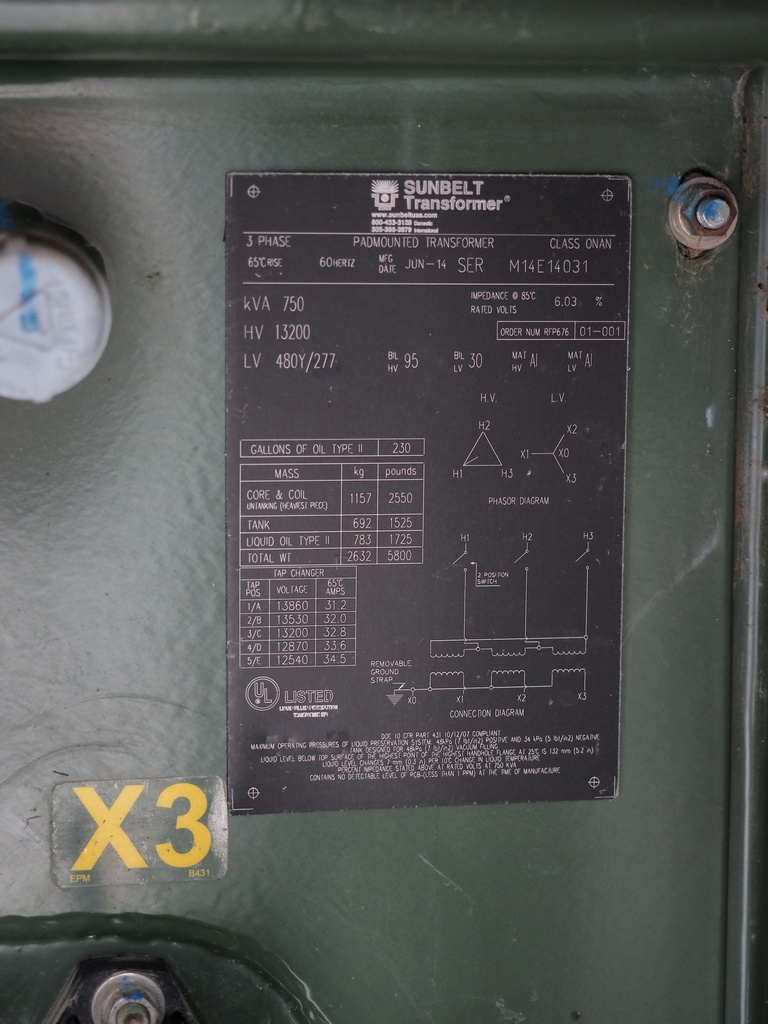

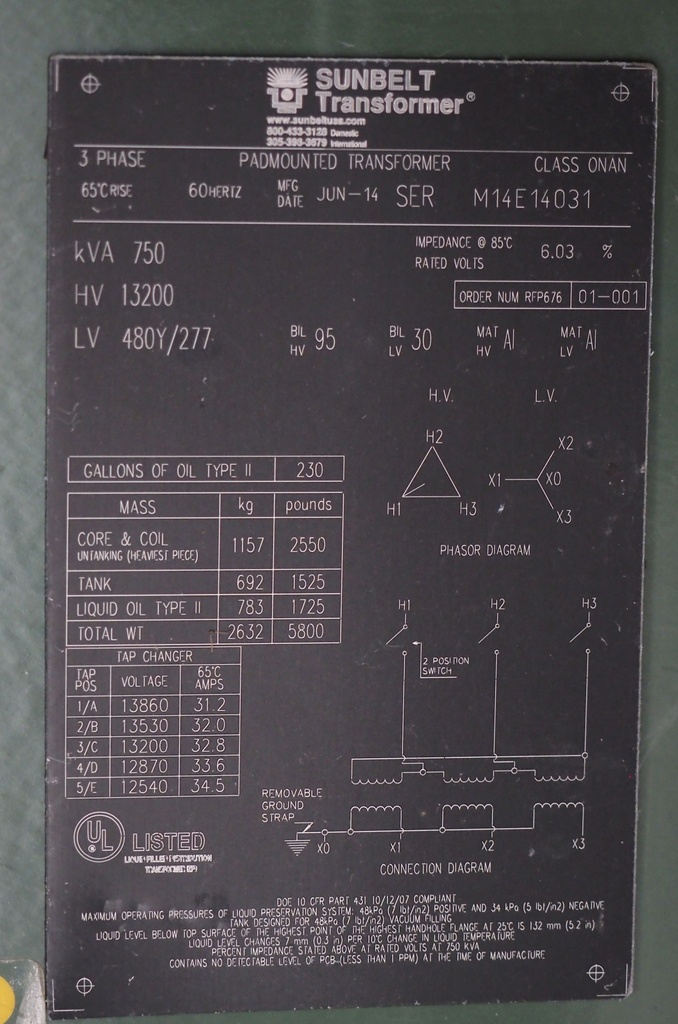

750 KVA 13200D- 480Y/277 Sunbelt Pad-mount Transformer, Live Front, Radial Feed
Padmount Transformer
Product Number:
046043
Full Product Description
750 KVA Sunbelt Pad-Mount Transformer, 3 Ph, 60hz,
65 Deg C Rise, Class ONAN, Live Front, Radial Feed,
Liquid Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge,
Drain and Sample Valve, Tap Changer, All AL windings
Taps: 13860-13530-13200-12870-12540
HV: 13200 Delta 95kV BIL
LV: 480Y/277 WYE 30kV BIL
Total Weight: 5800 lbs
Core & Coils: 2550 lbs
Tank & Fitt: 1525 lbs
Liquid (Oil): 1725 lbs (230 Gal)
65 Deg C Rise, Class ONAN, Live Front, Radial Feed,
Liquid Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge,
Drain and Sample Valve, Tap Changer, All AL windings
Taps: 13860-13530-13200-12870-12540
HV: 13200 Delta 95kV BIL
LV: 480Y/277 WYE 30kV BIL
Total Weight: 5800 lbs
Core & Coils: 2550 lbs
Tank & Fitt: 1525 lbs
Liquid (Oil): 1725 lbs (230 Gal)
