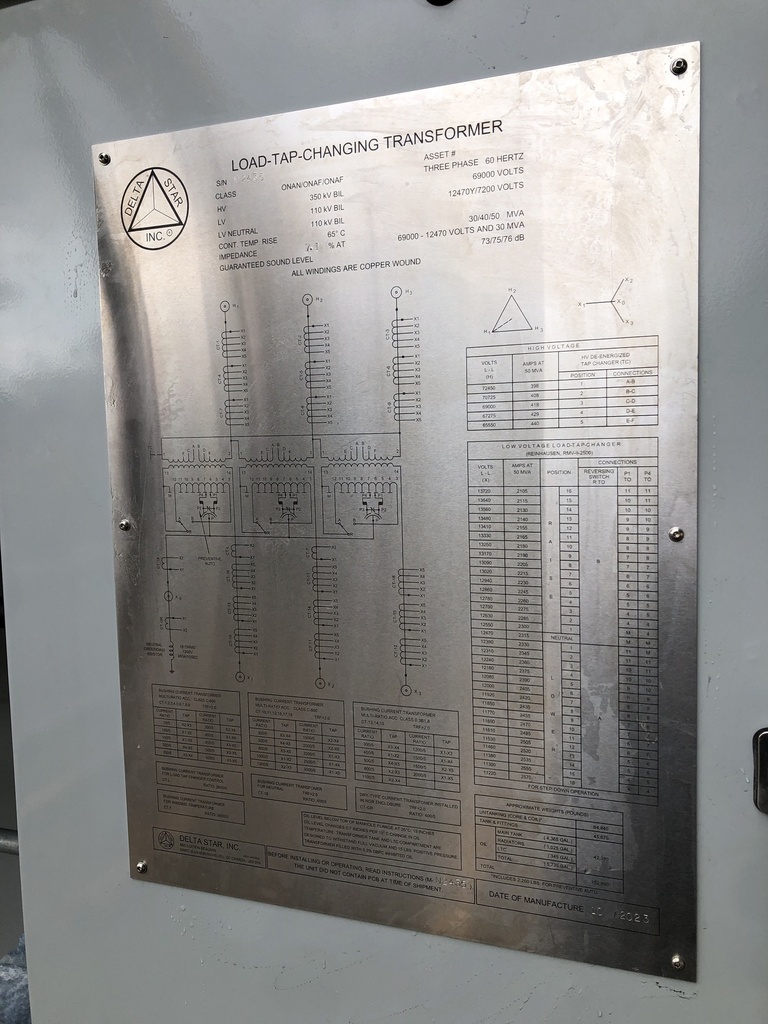

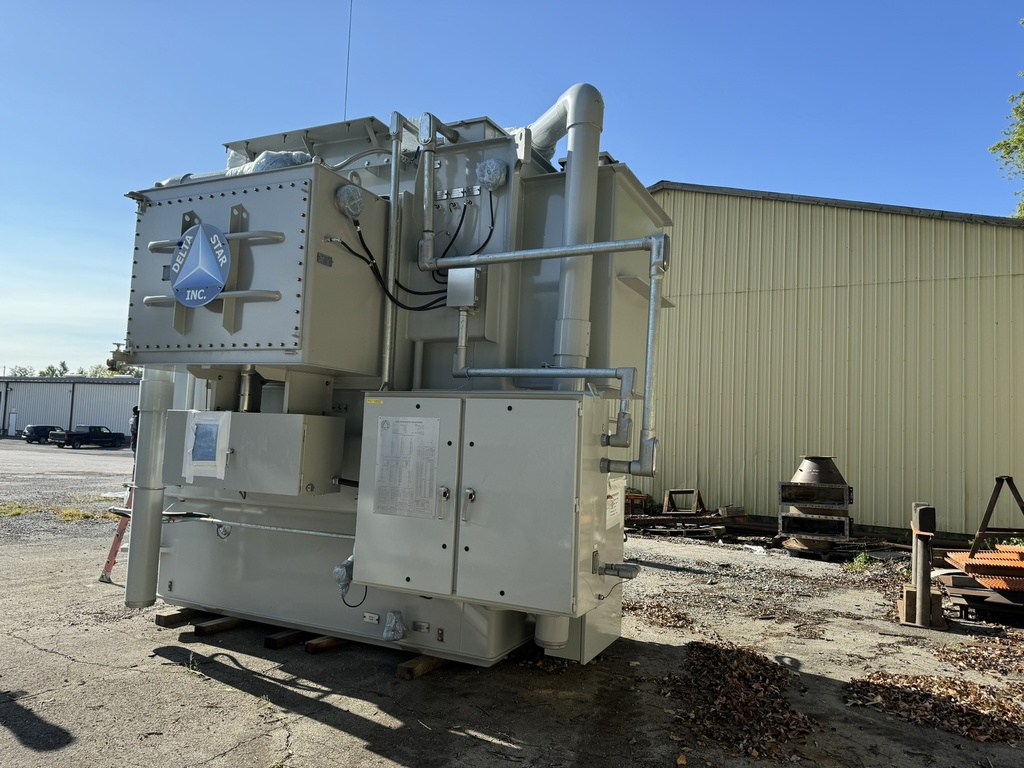

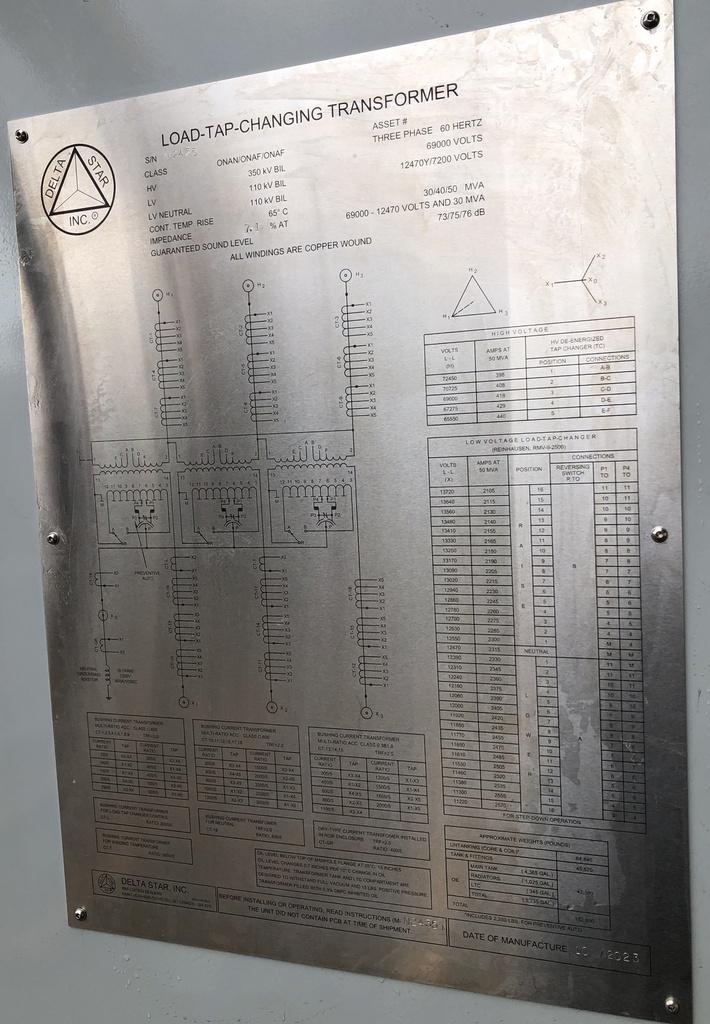

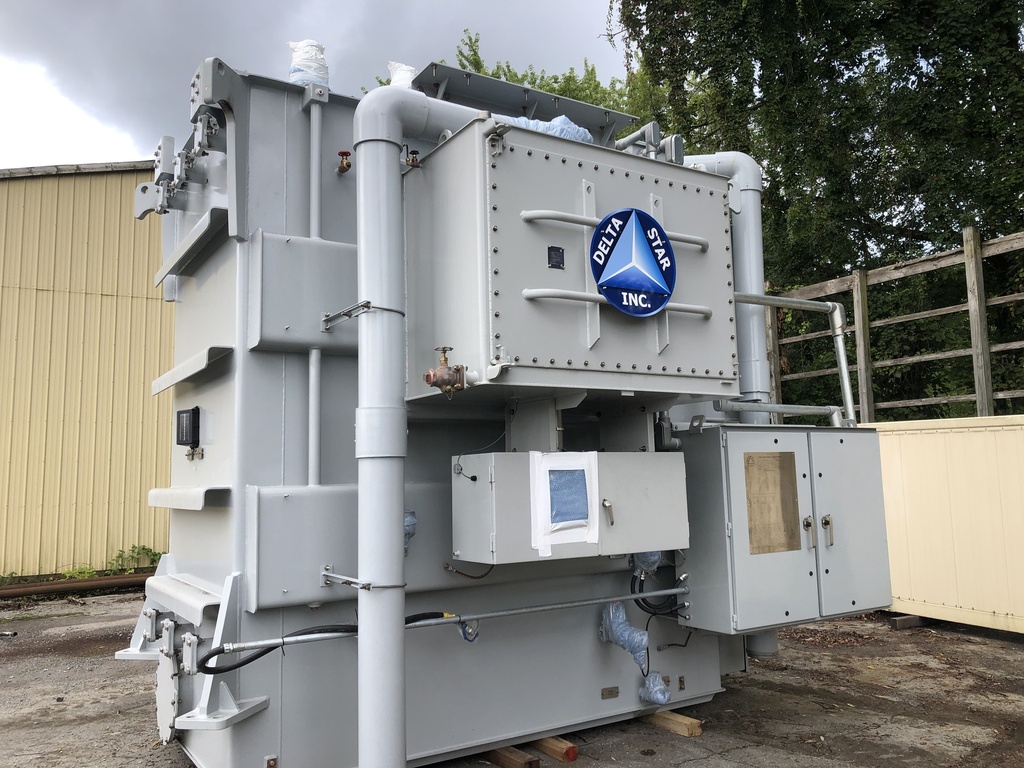

30/40/50 MVA 69000D - 12470Y LTC Delta Star Substation Transformer

One (1) 30/40/50 MVA LTC Delta Star Substation Transformer,
60 Hz, 3 ph, ONAN/ONAF/ONAF, 65 Deg C Rise, 7.1% Impedance,
All Copper Windings, LTC, Liquid Level Gauge, Liquid Temp Gauge,
Winding Temp Gauge, Pressure Gauge, Pressure Release Valve,
Drain & Sample Valve

HV: 69000 Delta BIL: 350 KV
LV: 12470Wye/7200 BIL: 110 KV

HV Taps: 72450-70725-69000-67275-65550

LTC Taps: +/- 0.625% in 32 Steps

Total Weight: 152890 lbs
Core & Coils: 64840 lbs
Tank & Fitt.: 45670 lbs
Liquid-Oil: 42380 lbs (5735 GAL)

Shipping Dimensions: 167.75"H x 179.25"W x 125.5"D

Overall Dimensions: 197.75"H x 257.5"W x 203.5"D
