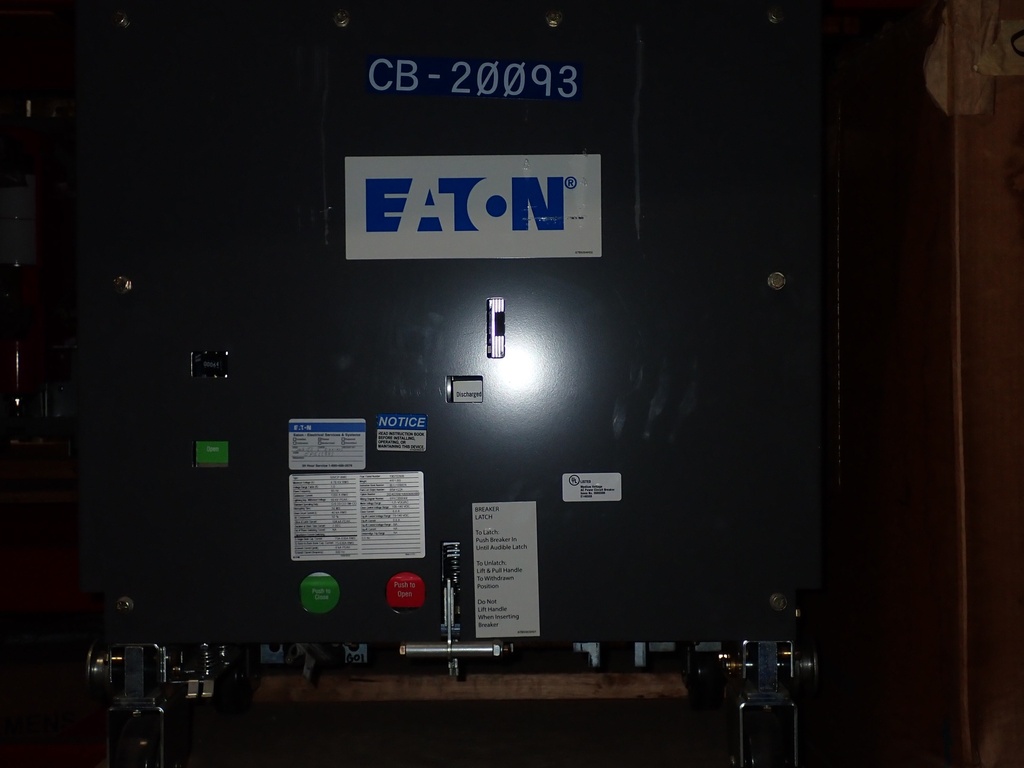

1200 Amp 4.76 kV Eaton Vacuum Circuit Breaker, 50VCP-W40, 125 VDC C+T
Vacuum Circuit Breaker
Product Number:
046011
Full Product Description
ONE (1)- 1200 Amp Eaton Vacuum Circuit Breakers

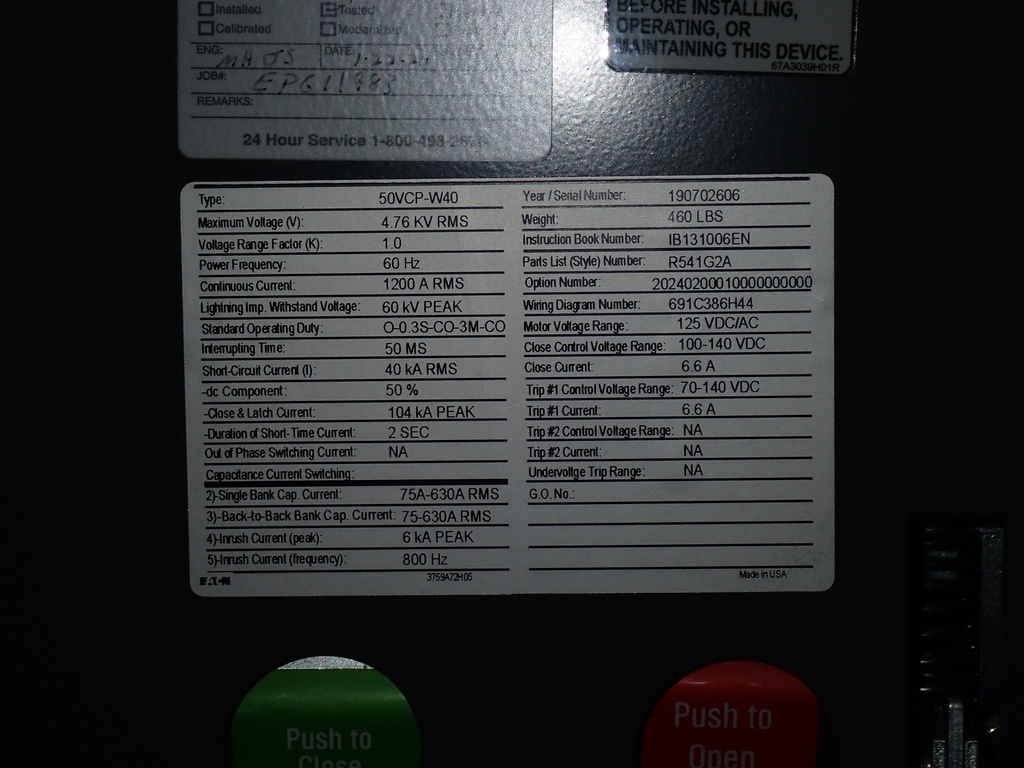

Type 50VCP-W40
4.76 KV Max
60 HZ
60 KV BIL
40 KA Short Circuit
1.0 Voltage Range Factor
104 KA Close & Latch
125 VDC Close & Trip
Standard Operating Duty: O-0.3S-CO-3M-CO
Has 4 additional wheels for an auto-racking mech
Wiring Diagram: 691C386H44
Inst. Book: IB131006EN
Weight: 460 LBS
Draw Out
Type 50VCP-W40
4.76 KV Max
60 HZ
60 KV BIL
40 KA Short Circuit
1.0 Voltage Range Factor
104 KA Close & Latch
125 VDC Close & Trip
Standard Operating Duty: O-0.3S-CO-3M-CO
Has 4 additional wheels for an auto-racking mech
Wiring Diagram: 691C386H44
Inst. Book: IB131006EN
Weight: 460 LBS
Draw Out
