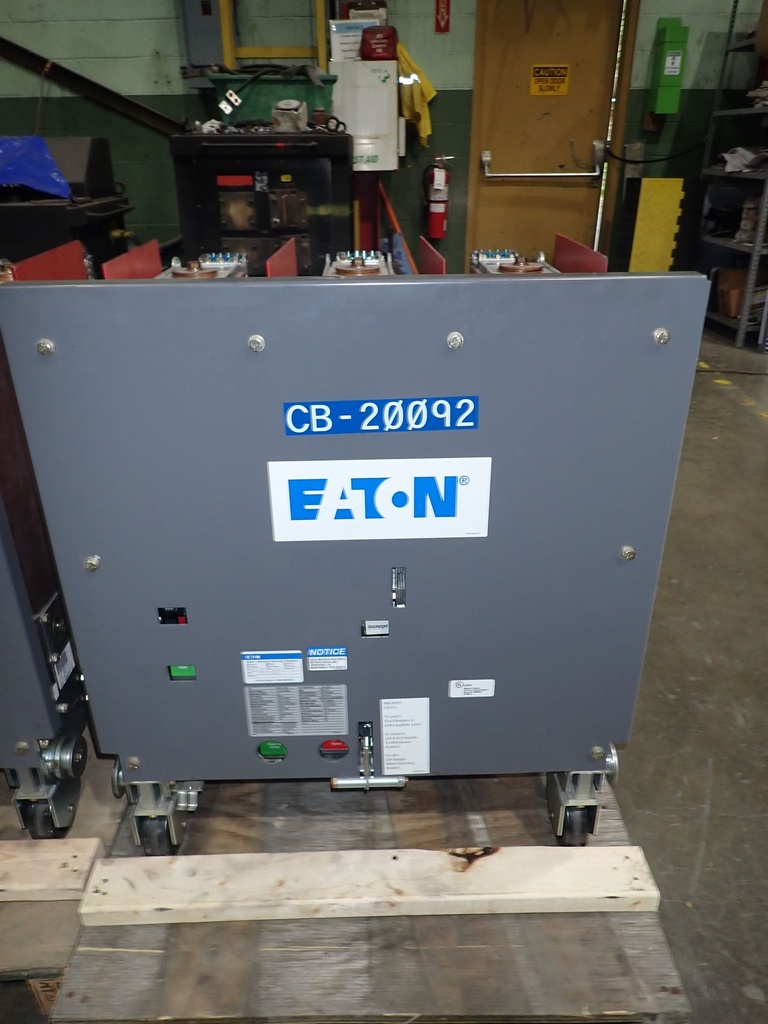

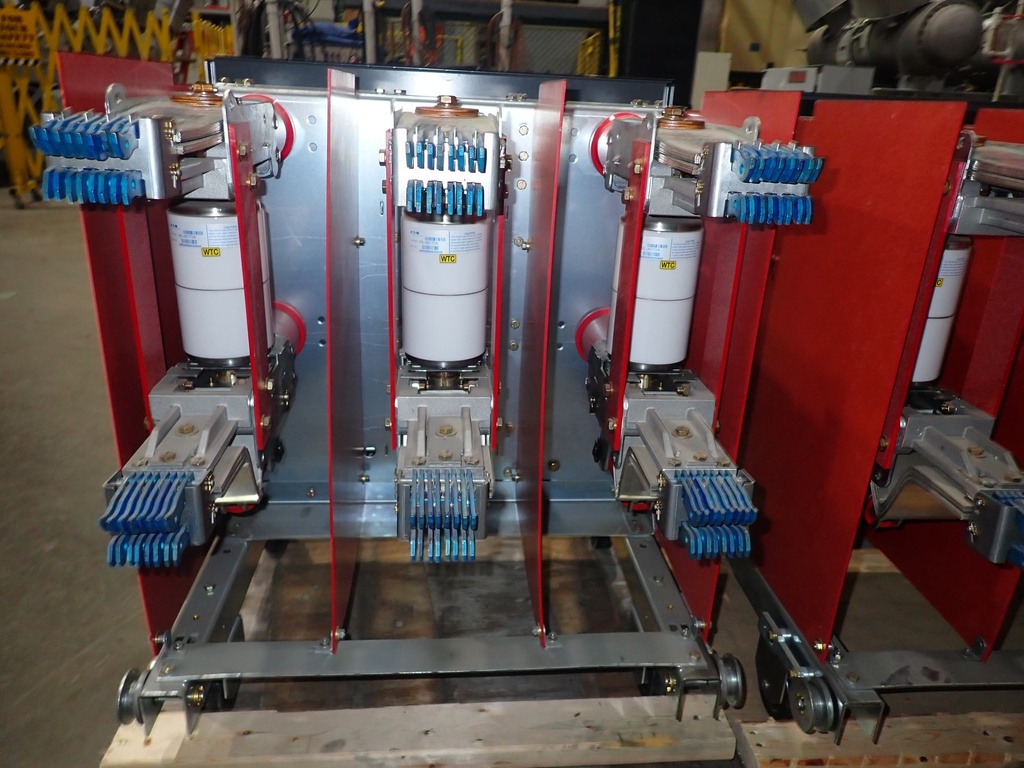

1200 Amp 4.76 kV Eaton Vacuum Circuit Breaker, 50VCP-W40, 125 VDC C+T
Vacuum Circuit Breaker
Product Number:
046010
Full Product Description

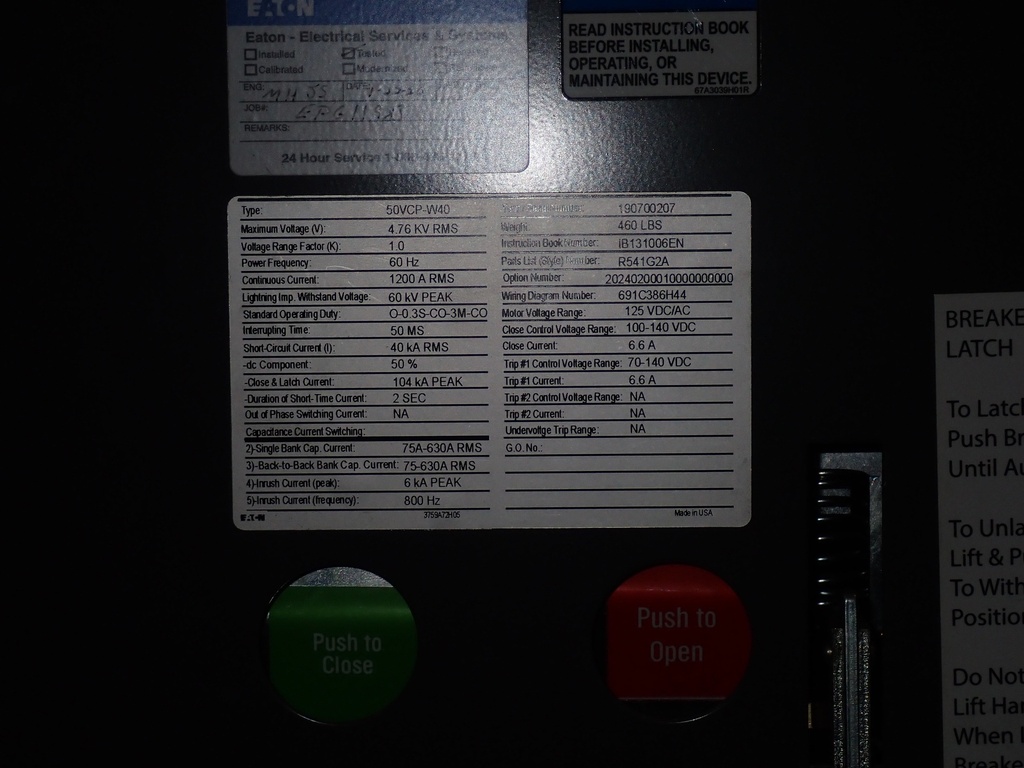

ONE (1)- 1200 Amp Eaton Vacuum Circuit Breakers
Type 50VCP-W40
4.76 KV Max
60 HERTZ
60 KV BIL
50 MS INTERRUPTING TIME
40 KA Short Circuit
1.0 Voltage 'K' Range Factor
104 KA Close & Latch
125 VDC Close & Trip
125 VDC/AC Motor Voltage Range
Has 4 additional wheels for an auto-racking mech
Wiring Diagram: 691C386H44
WEIGHT: 460 LBS
Inst. Book: IB131006EN
Draw Out
Type 50VCP-W40
4.76 KV Max
60 HERTZ
60 KV BIL
50 MS INTERRUPTING TIME
40 KA Short Circuit
1.0 Voltage 'K' Range Factor
104 KA Close & Latch
125 VDC Close & Trip
125 VDC/AC Motor Voltage Range
Has 4 additional wheels for an auto-racking mech
Wiring Diagram: 691C386H44
WEIGHT: 460 LBS
Inst. Book: IB131006EN
Draw Out
