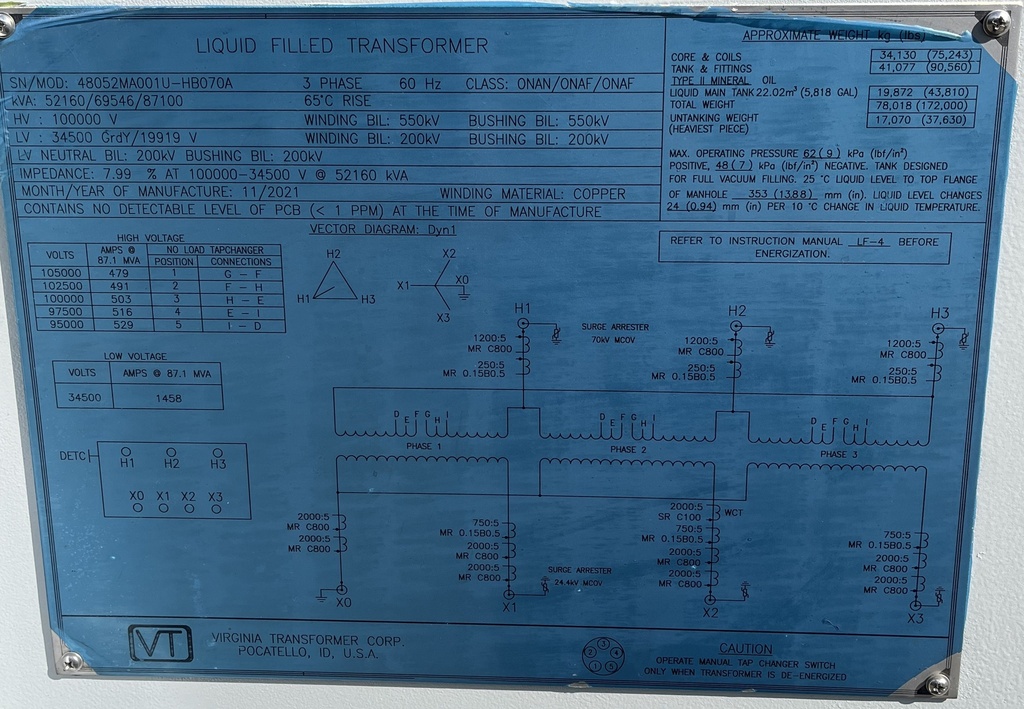

52160/69546/87100 KVA, 100KV D - 34.5KV GRDY Virginia Substation Transformer

KVA: 52160/69546/87100 KVA
Manufacturer: Virginia
Type: Substation
Phase: Three
HERTZ: 60
CLASS: ONAN/ONAF/ONAF
TEMPERATURE RISE: 65 °C
IMPEDANCE: 7.99
Primary - First: 100000 V
Primary - First Vector: Delta
Primary - First BIL: 550 kV
Secondary - First: 34500 V
Secondary - First Vector: Wye
Secondary - First BIL: 200 kV
HV BUSHING LOCATION: Top
LV BUSHING LOCATION: Top
HV ARRESTERS: Yes
HV ARRESTERS KV: 90 kV
LV ARRESTERS: Yes
LV ARRESTER KV: 30 kV
STANDARD TAPS: 105000-102500-100000-97500-95000
CORE & COIL WEIGHT: 75243 lb
TANK & FITTINGS WEIGHT: 90560 lb
FLUID WEIGHT: 43810 lb
FLUID GALLONS: 5818 gal (US)
TOTAL WEIGHT: 172000 lb
TOTAL DIMENSIONS: 217"H x 216"D x 194"W
SHIPPING DIMENSIONS: 158"H x 94"D x 194"W
FLUID TYPE: Mineral Oil
LIQUID LEVEL GAUGE: Yes
DRAIN & TEST VALVE: Yes
TEMPERATURE WINDING GAUGE: Yes
