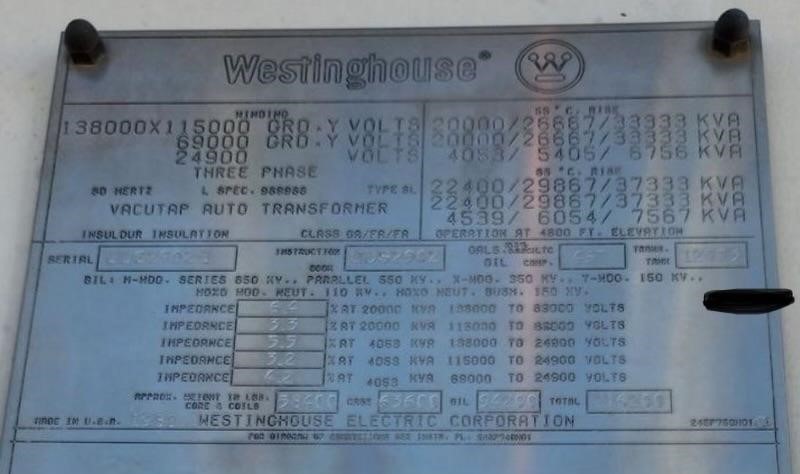

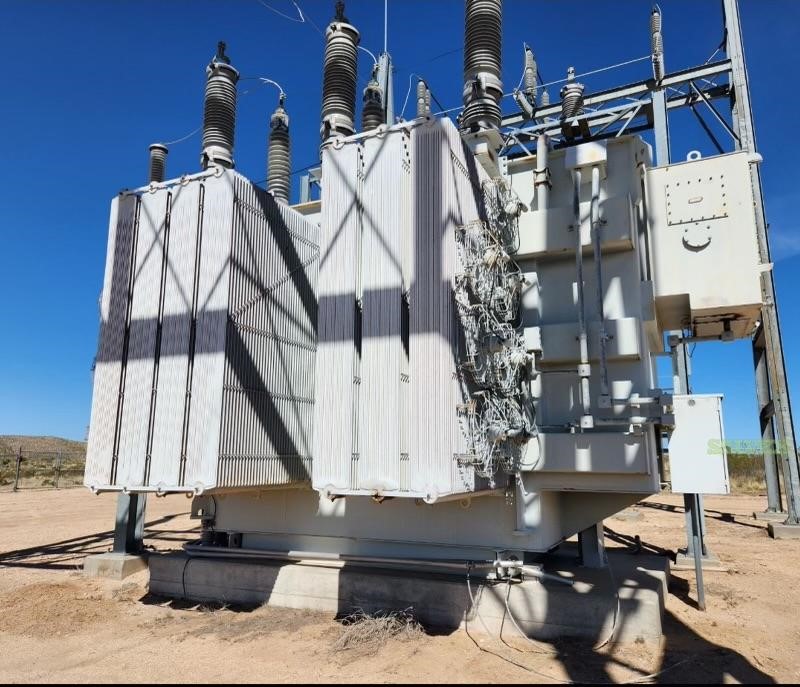

20/26.6/33.3MVA 138KV x 115KV GRDY - 69000 GRDY Westinghouse Autotransformer with 24.9KV Tertiary

KVA: 20000/26667/33333 KVA
Manufacturer: Westinghouse
Type: SL
Phase: Three
HERTZ: 60
CLASS: OA/FA/FA
TEMPERATURE RISE: 55/65 °C
IMPEDANCE: 6.4
Dual Primary?: Yes
Primary - First: 138000 kV
Primary - Second: 115000 kV
Primary - First Vector: Wye
Primary - Second Vector: Wye
Primary - First BIL: 650 kV
Primary - Second BIL: 550 kV
Secondary - First: 69000 kV
Secondary - First Vector: Wye
Secondary - First BIL: 350 kV
HV BUSHING LOCATION: Top
LV BUSHING LOCATION: Top
HV ARRESTERS: Yes
On load tap changer: Yes
CORE & COIL WEIGHT: 58400 lb
TANK & FITTINGS WEIGHT: 63600 lb
TOTAL WEIGHT: 216200 lb
FLUID TYPE: Mineral Oil
LIQUID LEVEL GAUGE: Yes
DRAIN & TEST VALVE: Yes
TEMPERATURE WINDING GAUGE: Yes
