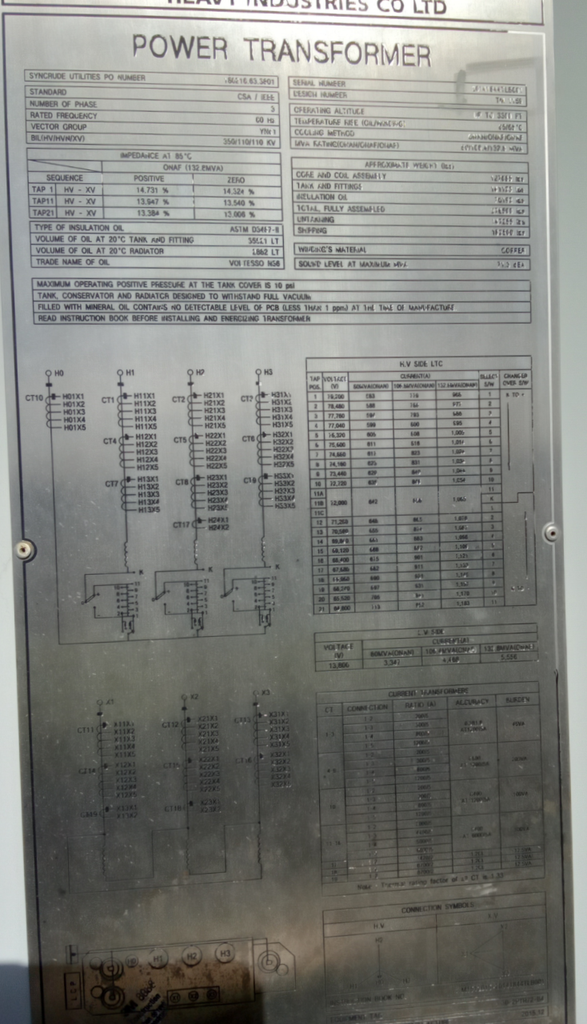

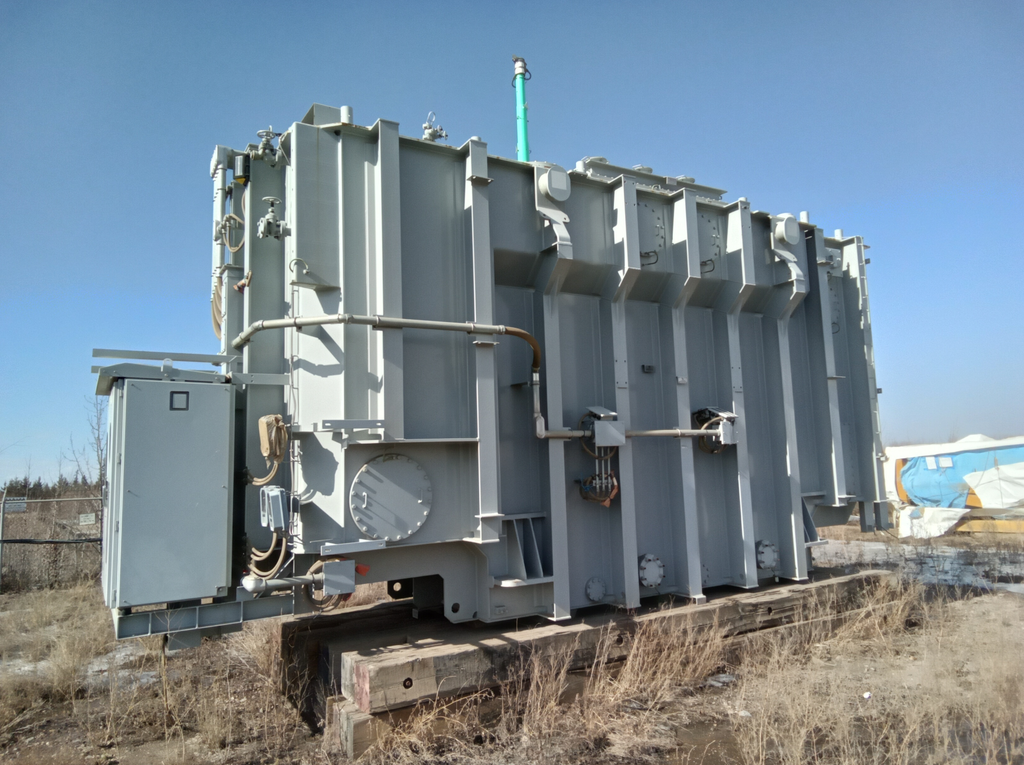

80/106.4/132.8MVA, 7200Y - 13800D Hyundai GSU Substation Transformer
Substation Transformer
Product Number:
045871
Full Product Description
KVA: 80000/106400/132800 KVA
Manufacturer: Hyundai
Phase: Three
HERTZ: 60
CLASS: ONAN/ONAF/ONAF
TEMPERATURE RISE: 65 °C
IMPEDANCE: 13.947
UL/CSA Rated: CSA
Primary - First: 7200 V
Primary - First Vector: Wye
Primary - First BIL: 110 kV
Secondary - First: 13800 V
Secondary - First Vector: Delta
Secondary - First BIL: 350 kV
HV BUSHING LOCATION: Top
LV BUSHING LOCATION: Top
On load tap changer: Yes
HIGH VOLTAGE TAPS: +/- 20 X 0.625%
GENERATOR STEP-UP: Yes
CORE & COIL WEIGHT: 127685 lb
TANK & FITTINGS WEIGHT: 141123 lb
FLUID WEIGHT: 75192 lb
TOTAL WEIGHT: 276500 lb
FLUID TYPE: Mineral Oil
LIQUID LEVEL GAUGE: Yes
DRAIN & TEST VALVE: Yes
TEMPERATURE WINDING GAUGE: Yes
Conservator: Yes
