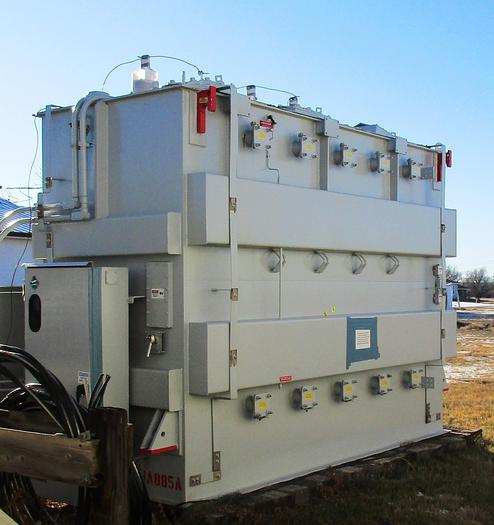

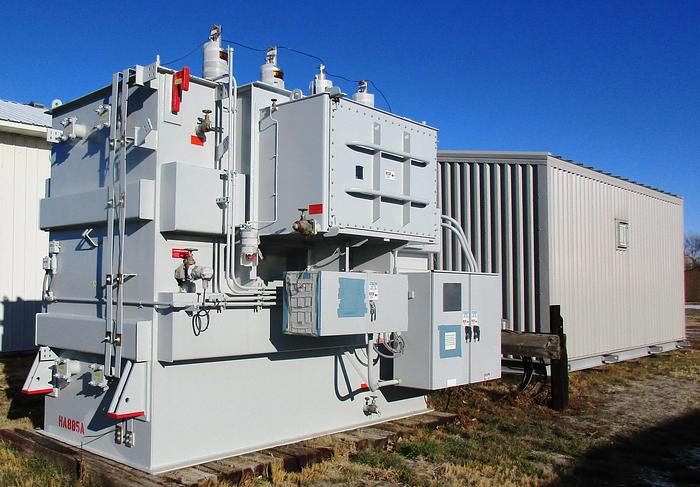

20/26.66/33.33 MVA, 115000D - 6900GRDY Virginia Substation Transformer, UNUSED

KVA: 20000/26660/33330 KVA
Manufacturer: Virginia Transformer
Type: Automatic Load Tap Changing
Phase: Three
HERTZ: 60
CLASS: ONAN/ONAF/ONAF
TEMPERATURE RISE: 65 °C
IMPEDANCE: 9.43
Primary - First: 115000 V
Primary - First Vector: Delta
Primary - First BIL: 550 kV
Secondary - First: 6900 V
Secondary - First Vector: Wye
Secondary - First BIL: 110 kV
HV BUSHING LOCATION: Top
LV BUSHING LOCATION: Top
STANDARD TAPS: 120750-117875-115000-112125-109250
On load tap changer: Yes
LOW VOLTAGE TAPS: +/- 16 X 0.625%
CORE & COIL WEIGHT: 50540 lb
TANK & FITTINGS WEIGHT: 40900 lb
FLUID WEIGHT: 39750 lb
FLUID GALLONS: 5297 gal (US)
TOTAL WEIGHT: 138000 lb
FLUID TYPE: Mineral Oil
LIQUID LEVEL GAUGE: Yes
DRAIN & TEST VALVE: Yes
TEMPERATURE WINDING GAUGE: Yes
