Full Product Description

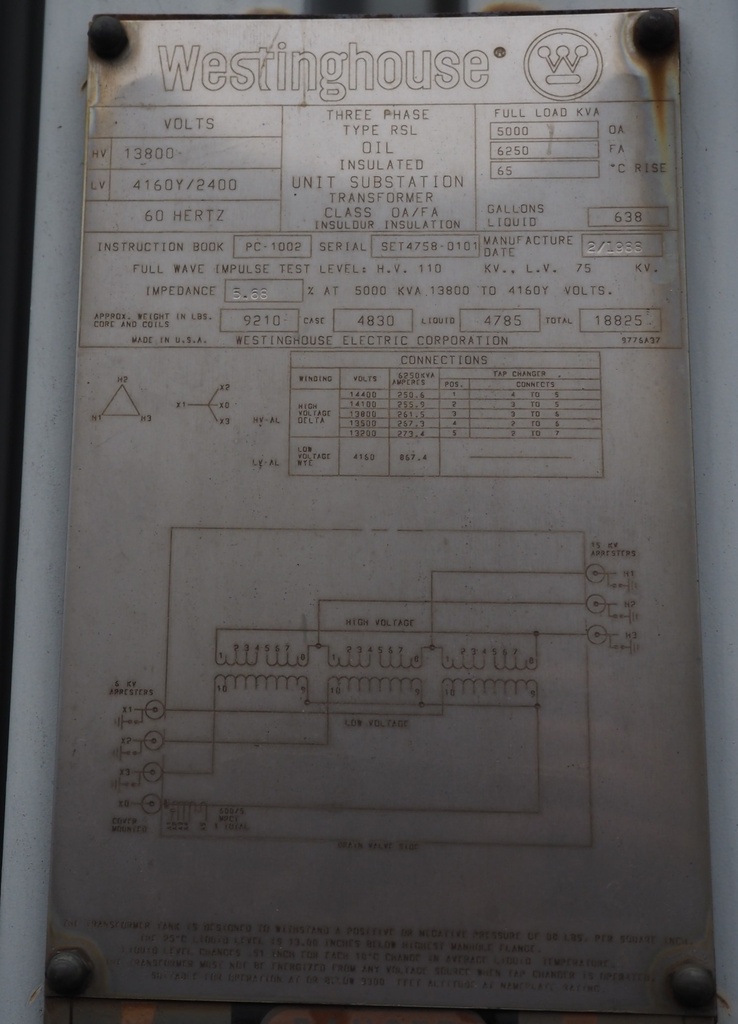

5000/6250 KVA Westinghouse Substation Transformer, All Aluminum Windings, 60hz
3 Ph, 65 Deg C Rise, Class OA/FA, Tap Changer, Liquid Level Gauge, Liquid Temp Gauge
Vacuum Pressure Gauge, Winding Temp Gauge, Drain and Sample Valve, Pressure Relief Device,
15kV HV Arresters, 5kv LV Arresters, 5.68% Imp, LV Side, HV Side, LVN top
HV: 13800 Delta 110kV BIL
LV: 4160 Wye 75kV BIL
TAPS: 14400-14100-13800-13500-13200
Total Weight: 18825lbs
Core & Coils: 4830lbs
Tank & Fittings: 9210lbs
Liquid: 4785lbs (638 gal)

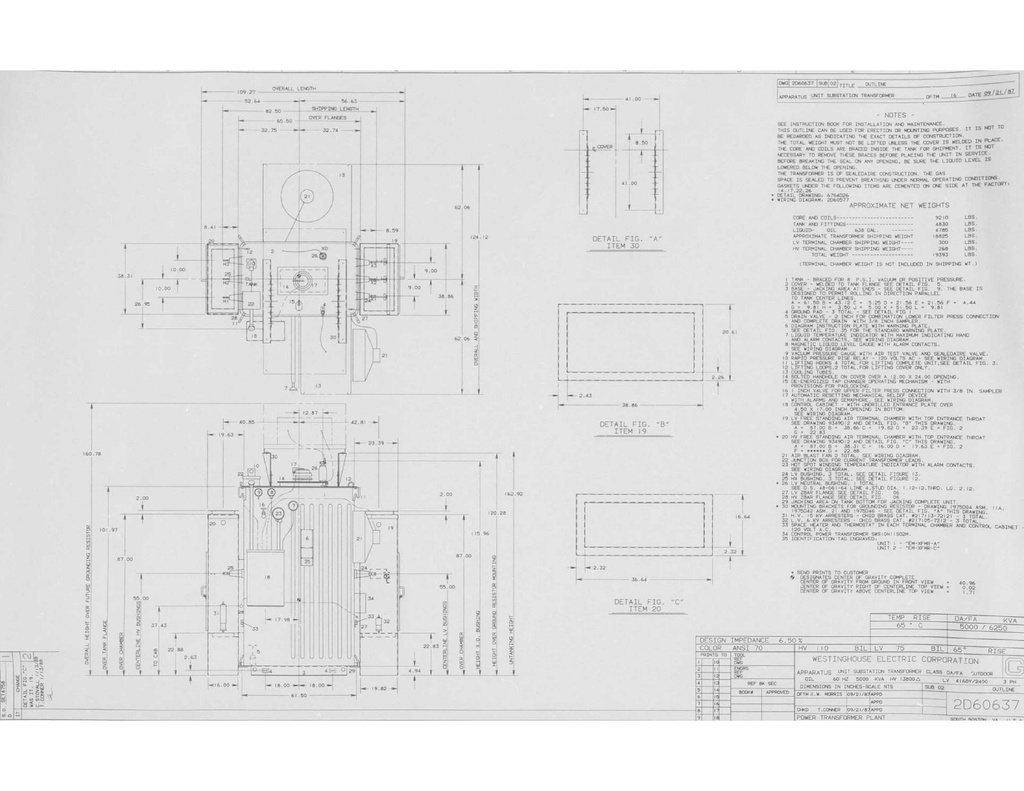

Overall Dimensions: 190.27"L x 124.12"W x 162.92"H
Shipping Height: 82.5"L x 124.12"W x 162.92"H
