  2. 300KVA, 13200D - 480Y Padmount Sunbelt Transformer, LF/LF with Selector Switch

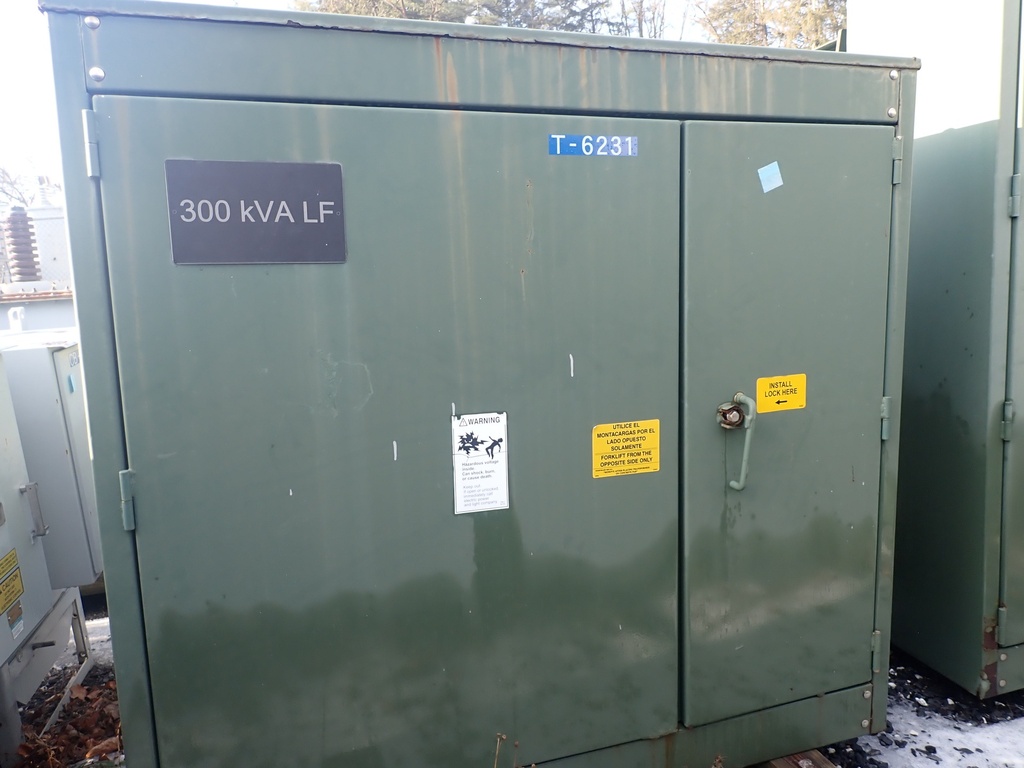

300KVA, 13200D - 480Y Padmount Sunbelt Transformer, LF/LF with Selector Switch

https://belyeapower.redstormlabs.com/web/image/product.template/35462/image_1920?unique=e118c1b

Padmount Transformer

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045857
    Request Quote

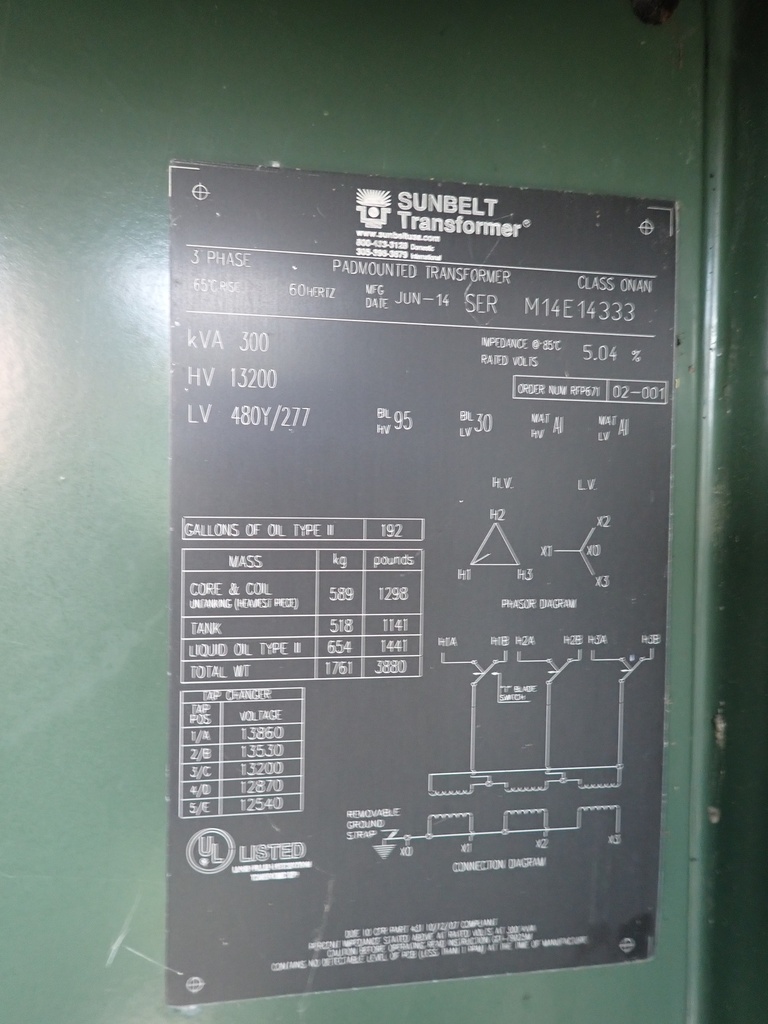

    Full Product Description

    KVA: 300 KVA
    Manufacturer: Sunbelt Transformers
    Type: Padmount
    Phase: Three
    HERTZ: 60
    CLASS: ONAN
    TEMPERATURE RISE: 65 °C
    IMPEDANCE: 5.42 %
    UL/CSA Rated: UL
    Primary - First: 13200 V
    Primary - First Vector: Delta
    Primary - First BIL: 95 kV
    Secondary - First: 480 V
    Secondary - First Vector: Wye
    Secondary - First BIL: 30 kV
    HV Bushing Application: Live Front
    HV Bushing Configuration: Loop Feed
    TAPS: 13860-13530-13200-12870-12540
    CORE & COIL WEIGHT: 1298 lb
    TANK & FITTINGS WEIGHT: 1141 lb
    FLUID WEIGHT: 1441 lb
    FLUID GALLONS: 192 gal (US)
    TOTAL WEIGHT: 3880 lb
    FLUID TYPE: Mineral Oil
    Aluminum Windings
