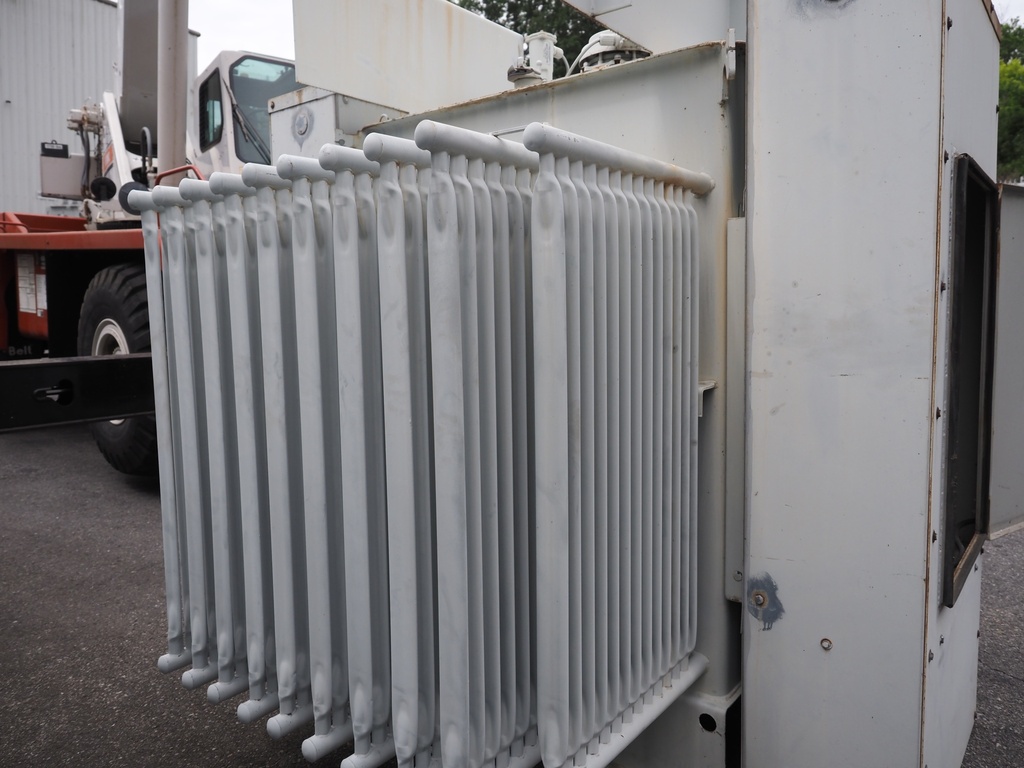

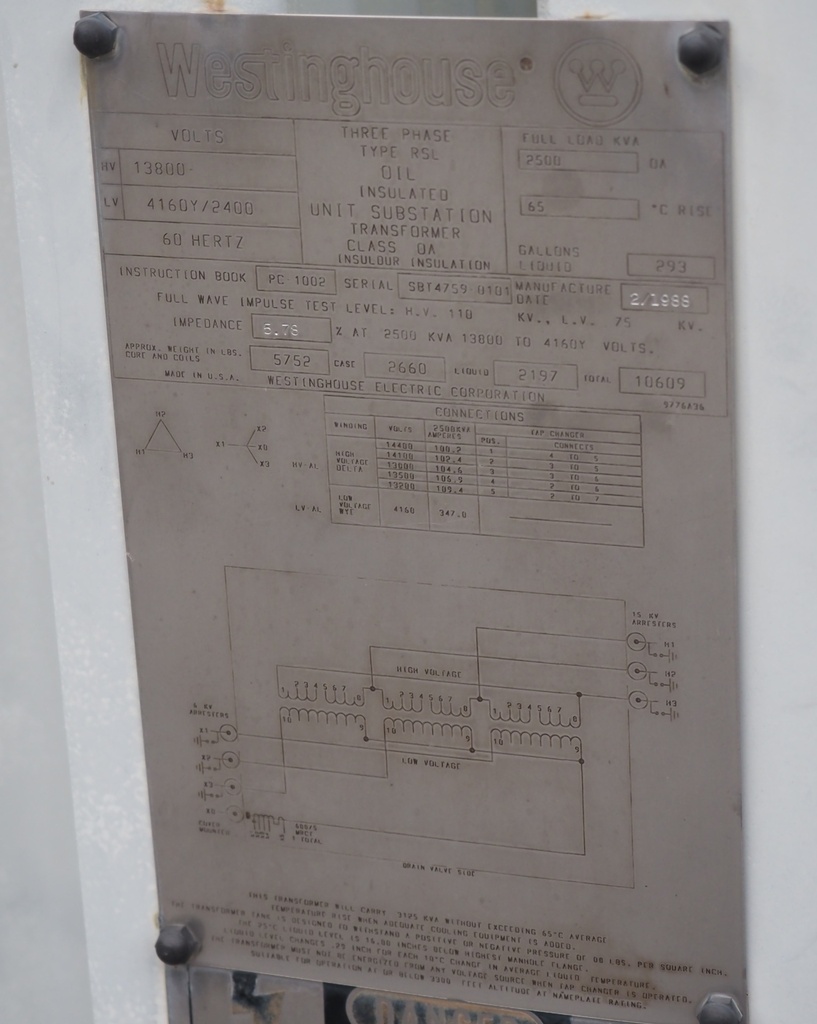

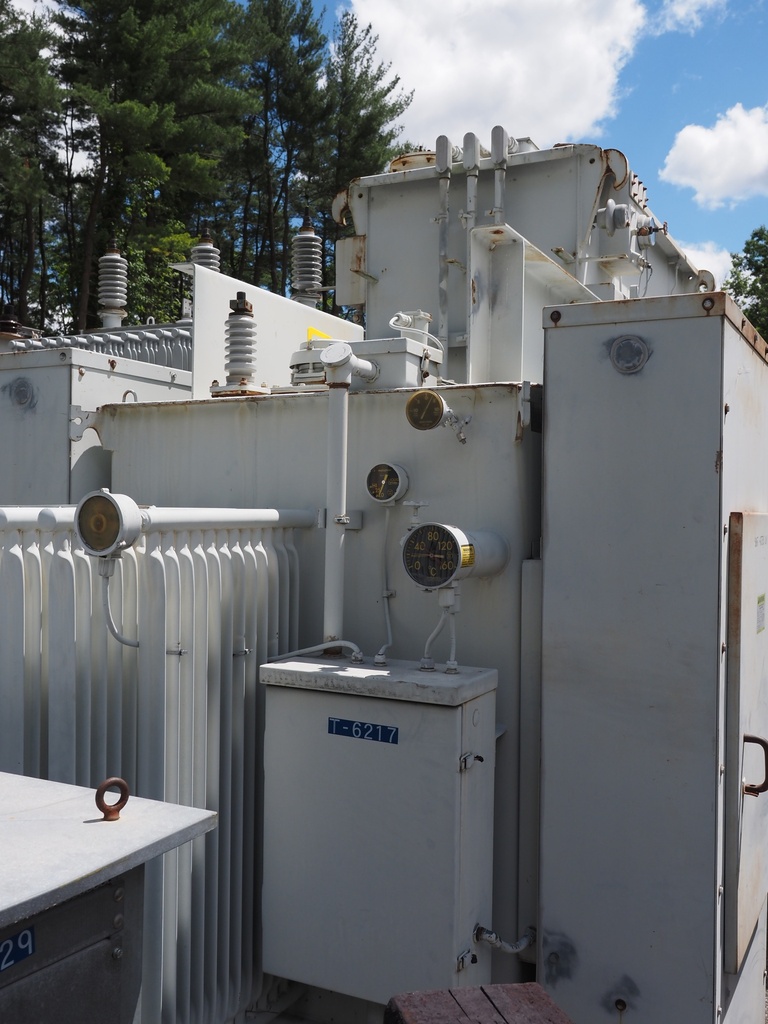

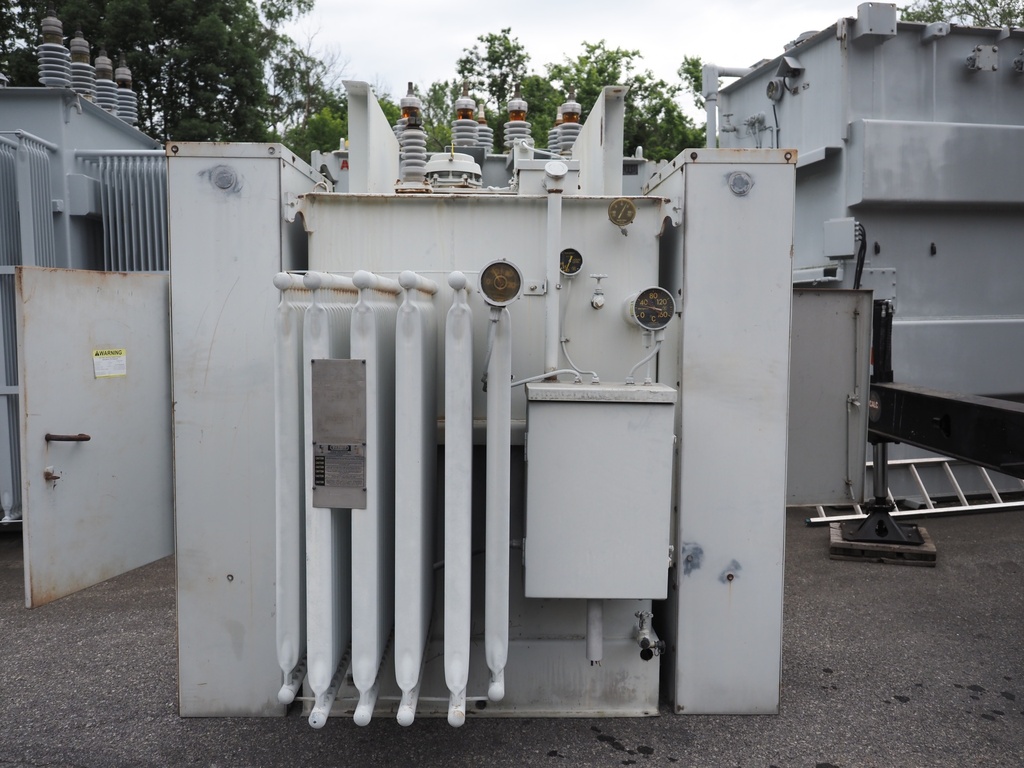

2500 KVA, 13800D 4160Y/2400, Westinghouse, Mineral Oil
Substation Transformer
Product Number:
045833
Full Product Description
2500 KVA Westinghouse Substation Transformer, 60hz, 3 Phase, Class OA,
Liquid Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge, Winding Temp Gauge,
Pressure Relief Device, Drain and Sample Valve, Side x Side, 65 Deg C rise
HV: 13800V Delta 110kV BIL
LV: 4160/2400 Wye 75kV BIL
Taps: 1440-14100-13800-13500-13200
Total Weight: 10609lbs
Tank and Fittings: 2660lbs
Core and Coils: 5752lbs
Liquid (Oil): 2197lbs (293 Gal)
Liquid Level Gauge, Liquid Temp Gauge, Vacuum Pressure Gauge, Winding Temp Gauge,
Pressure Relief Device, Drain and Sample Valve, Side x Side, 65 Deg C rise
HV: 13800V Delta 110kV BIL
LV: 4160/2400 Wye 75kV BIL
Taps: 1440-14100-13800-13500-13200
Total Weight: 10609lbs
Tank and Fittings: 2660lbs
Core and Coils: 5752lbs
Liquid (Oil): 2197lbs (293 Gal)
