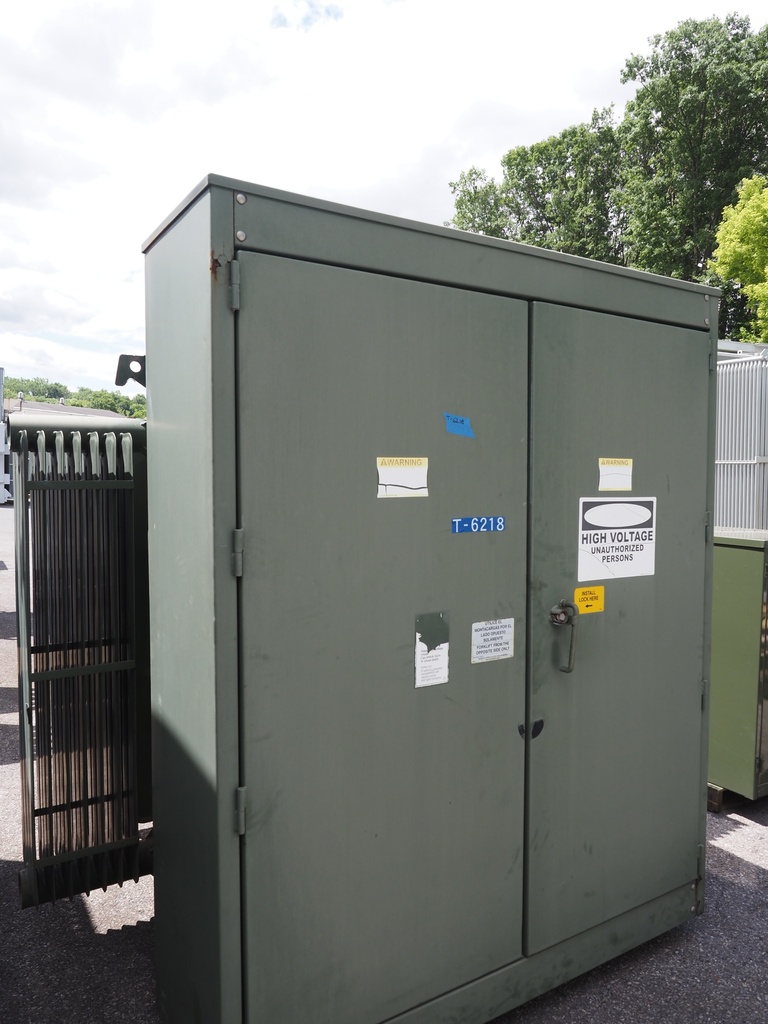

2000 KVA, 13800D 4160 Wye, GE Prolec Pad-Mount, Dead Front, Loop Feed, Copper Windings
Padmount Transformer
Product Number:
045832
Full Product Description
2000 KVA GE Prolec Pad-Mount Transformer, 60hz 3 Phase,
65 Deg C Rise, Class ONAN, Dead Front Loop Feed, All CU Windings,

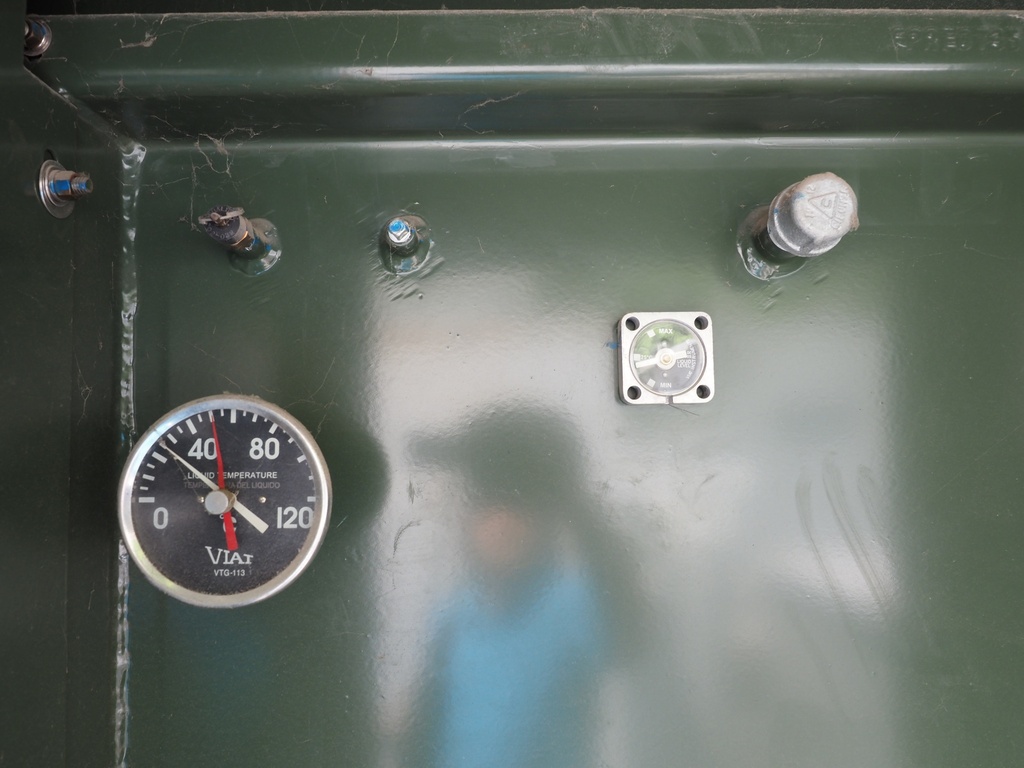

Liquid Level Gauge, Liquid Temp Gauge, Tap Changer, Drain and Sample Valve,
Pressure Relief Device, 5.7% IMP

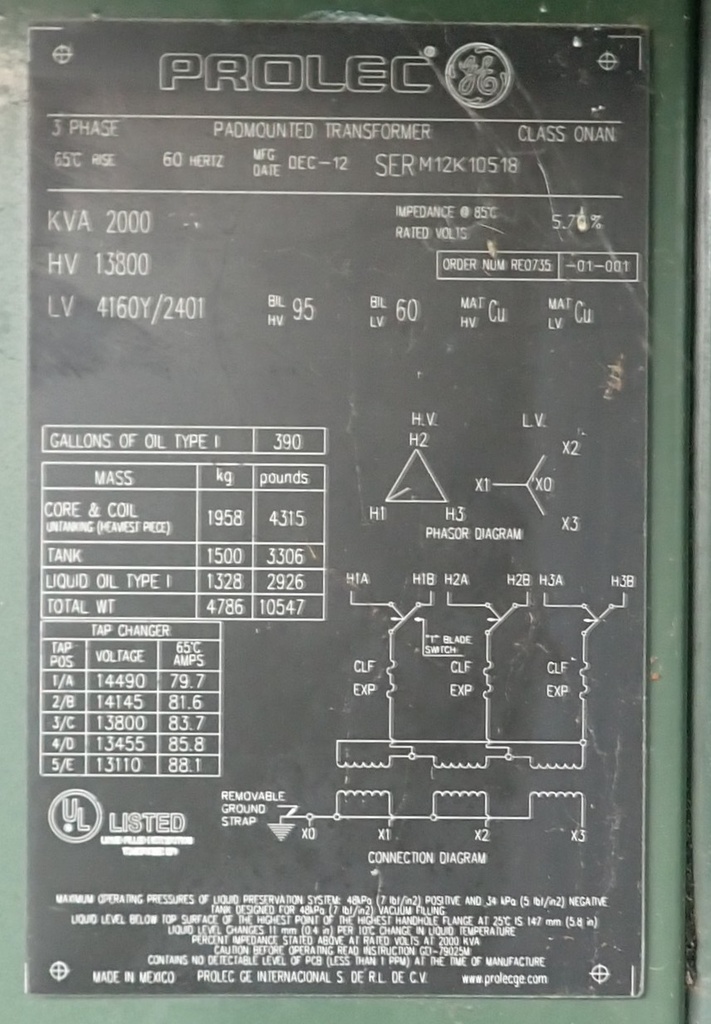

HV: 13800 Delta 95kV BIL
LV: 4160 Wye 60kV BIL
Taps: 14490-14145-13800-13110
Total Weight: 10547lbs
Core and Coils: 4315lbs
Tank & Fittings: 3306lbs
Liquid : 2926lbs (390 gal)
DIMS: 91"H x 93"W x 79"D
65 Deg C Rise, Class ONAN, Dead Front Loop Feed, All CU Windings,
Liquid Level Gauge, Liquid Temp Gauge, Tap Changer, Drain and Sample Valve,
Pressure Relief Device, 5.7% IMP
HV: 13800 Delta 95kV BIL
LV: 4160 Wye 60kV BIL
Taps: 14490-14145-13800-13110
Total Weight: 10547lbs
Core and Coils: 4315lbs
Tank & Fittings: 3306lbs
Liquid : 2926lbs (390 gal)
DIMS: 91"H x 93"W x 79"D
