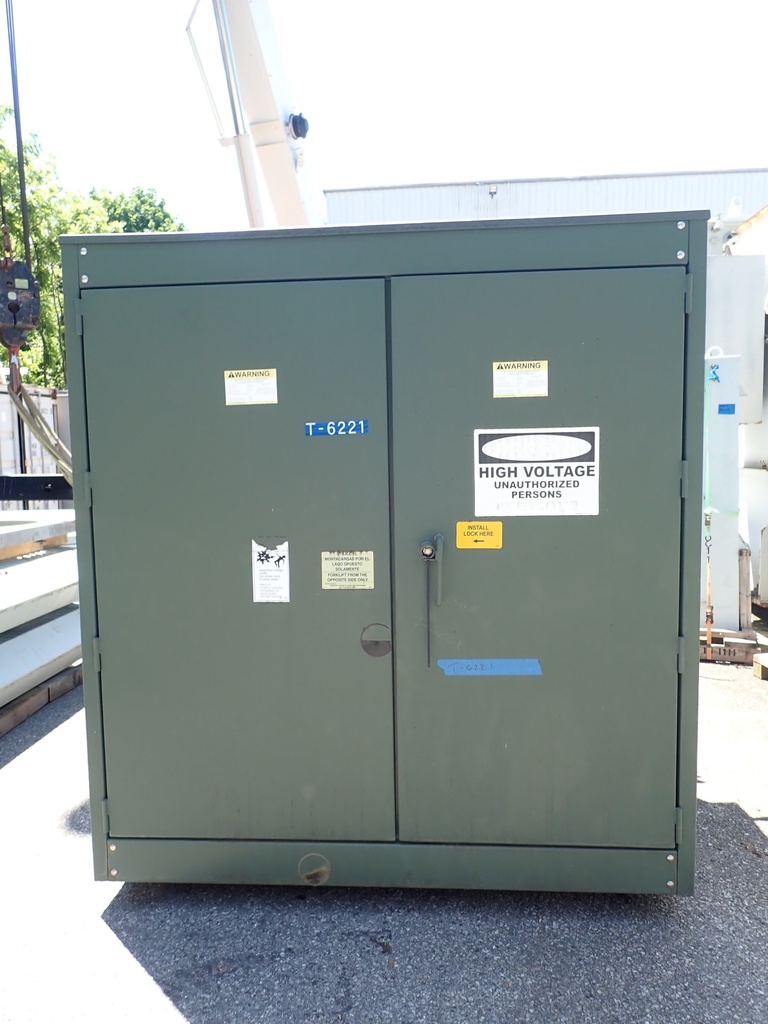

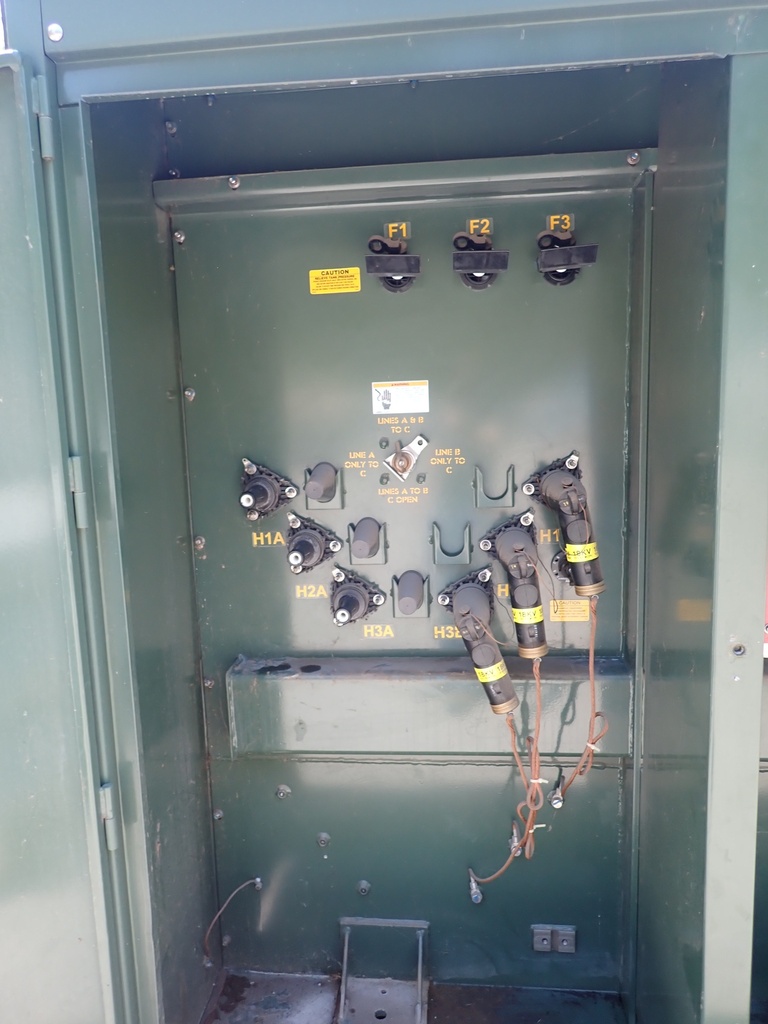

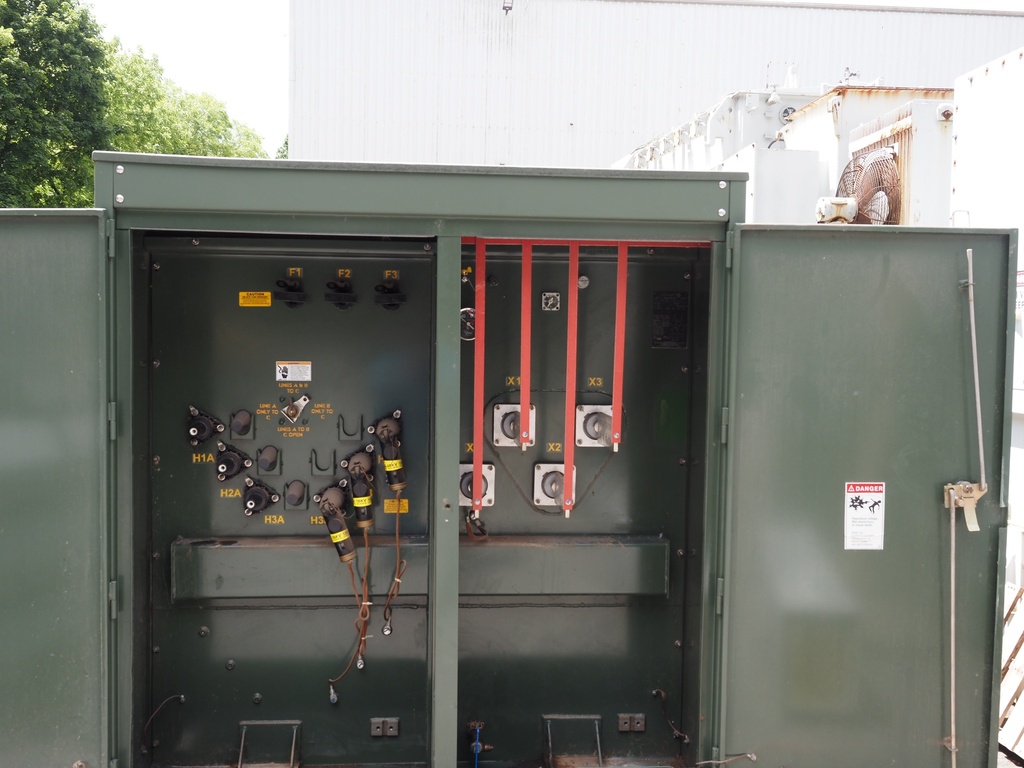

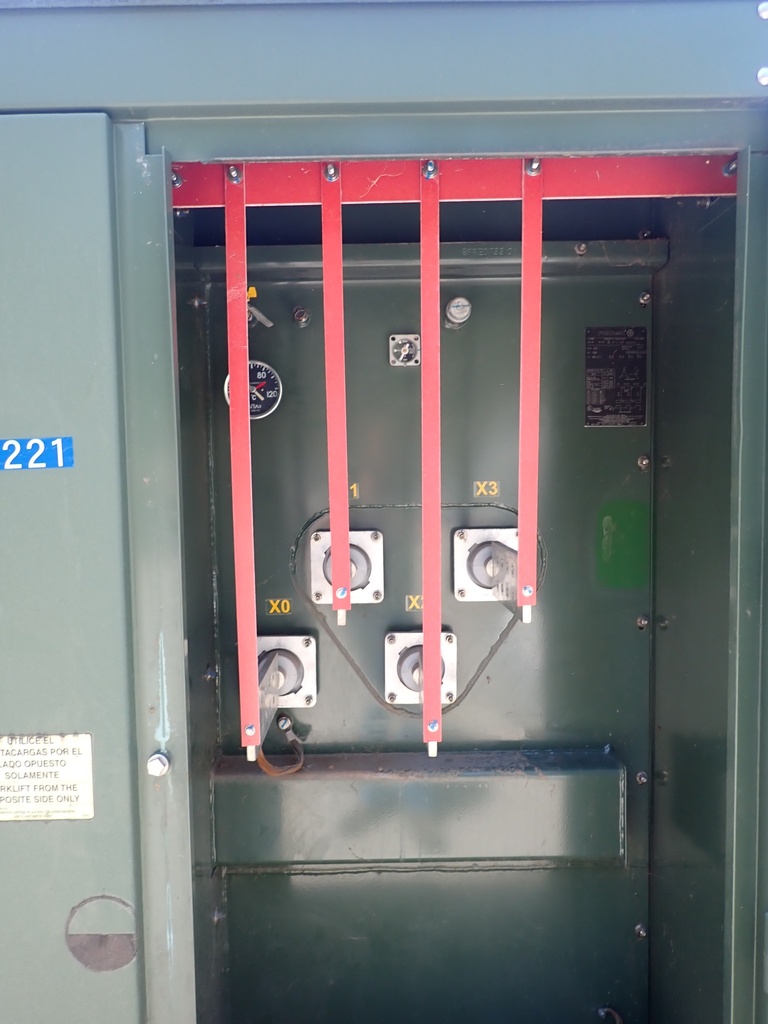

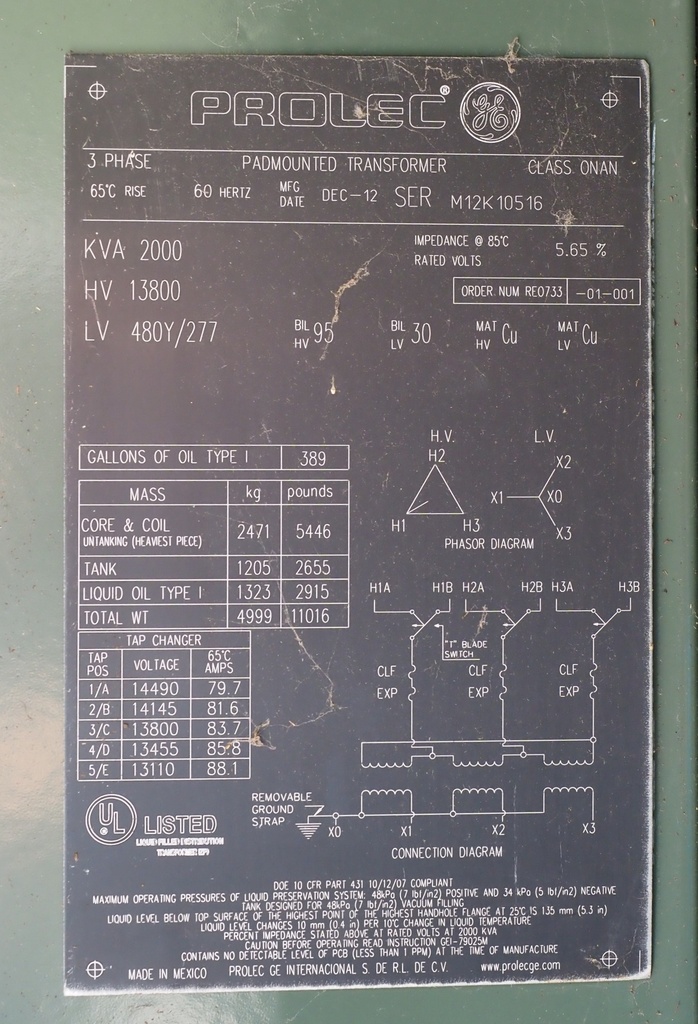

2000 KVA 13800D 480Y GE Prolec Transformer, Dead Front, Loop Feed

2000 KVA GE Prolec Pad-Mount Transformer, Dead Front, Loop Feed, ONAN
Liquid Temperature Gauge, Liquid Level Gauge, Drain and Sample Valve,
Pressure Relief Valve, 5.65% Imp, MFG 2012, All Copper Windings

HV: 13800 Delta 95kV BIL
LV: 480 Wye 30kV BIL

Taps: 14490-14145-13800-13455-13110

Total Weight: 11016lbs
Core and Coils: 5446lbs
Tank & FIttings: 2665lbs
Liquid: 2915lbs (389 gal)

DIMS: 81"H x 72"W x 74"D
