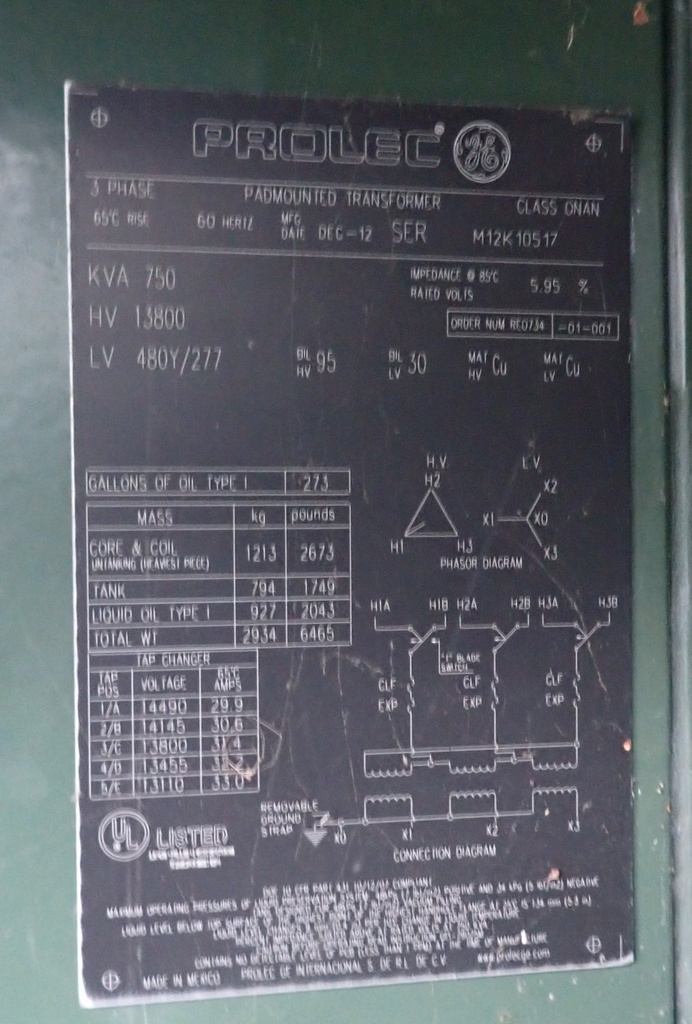

750 KVA 13800D 480Y GE Prolec Transformer, Dead Front, Loop Feed
Padmount Transformer
Product Number:
045816
Full Product Description
750 KVA GE Prolec Pad-Mount Transformer, Dead Front, Loop Feed, ONAN
Liquid Temperature Gauge, Liquid Level Gauge, Drain and Sample Valve,
Pressure Relief Valve, All Copper Windings, 5.95% Imp, MFG 2012
HV: 13800 Delta 95kV BIL
LV: 480 Wye 30kV BIL
Taps: 14490-14145-13800-13455-13110
Total Weight: 6465lbs
Core and Coils: 2673lbs
Tank & FIttings: 1749lbs
Liquid: 2043lbs (273 gal)
DIMS: 76"H x 66"W x 62"D
