  2. 3000 KVA 13200Y 480D, ERMCO, Dead Front, Loop Feed,

3000 KVA 13200Y 480D, ERMCO, Dead Front, Loop Feed,

https://belyeapower.redstormlabs.com/web/image/product.template/35408/image_1920?unique=e118c1b

Padmount Transformer

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045803
    Request Quote

    Full Product Description

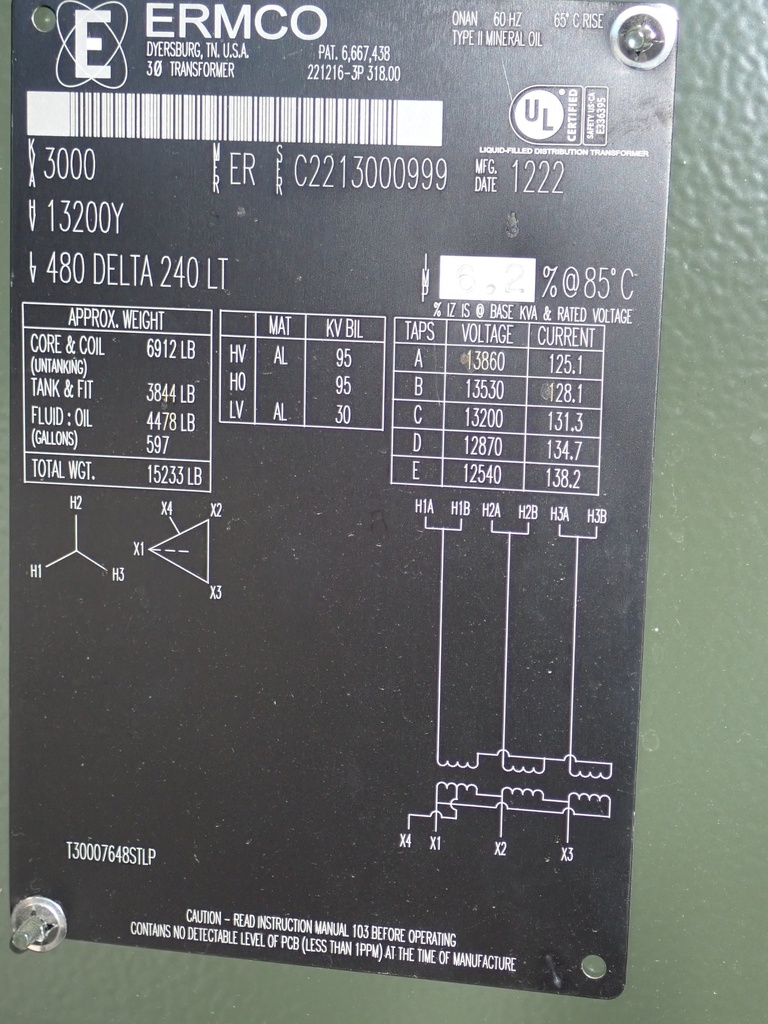

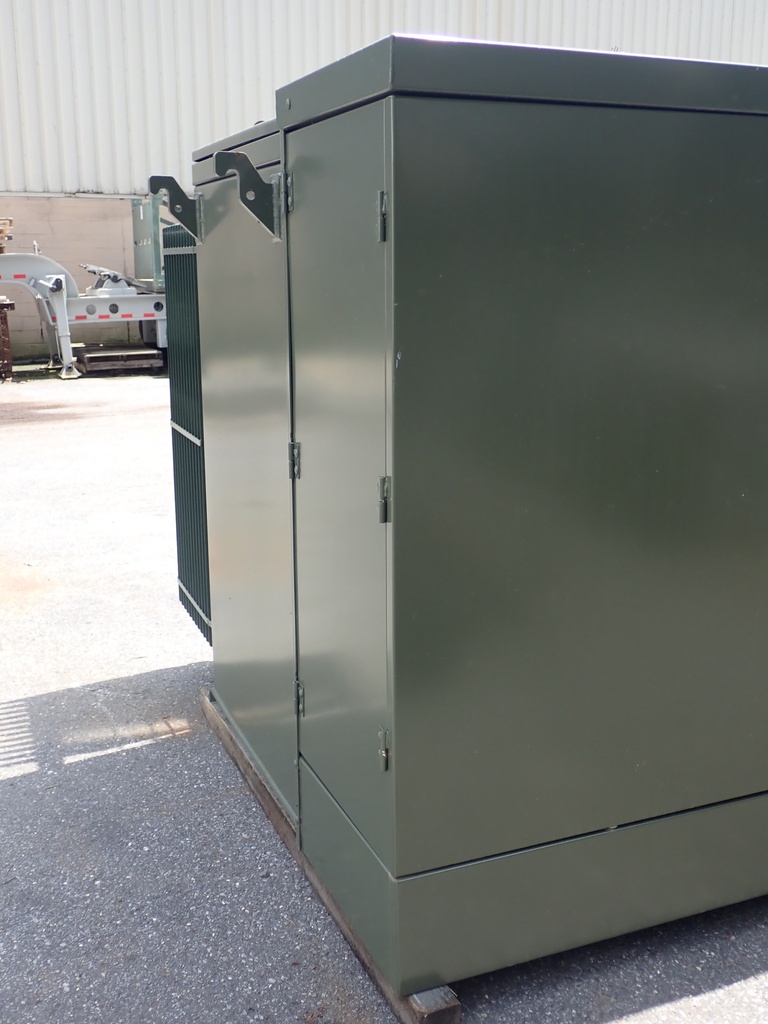

    3000 KVA ERMCO Pad-Mount Transformer, 3 PH, 65 Deg C Rise, Class ONAN

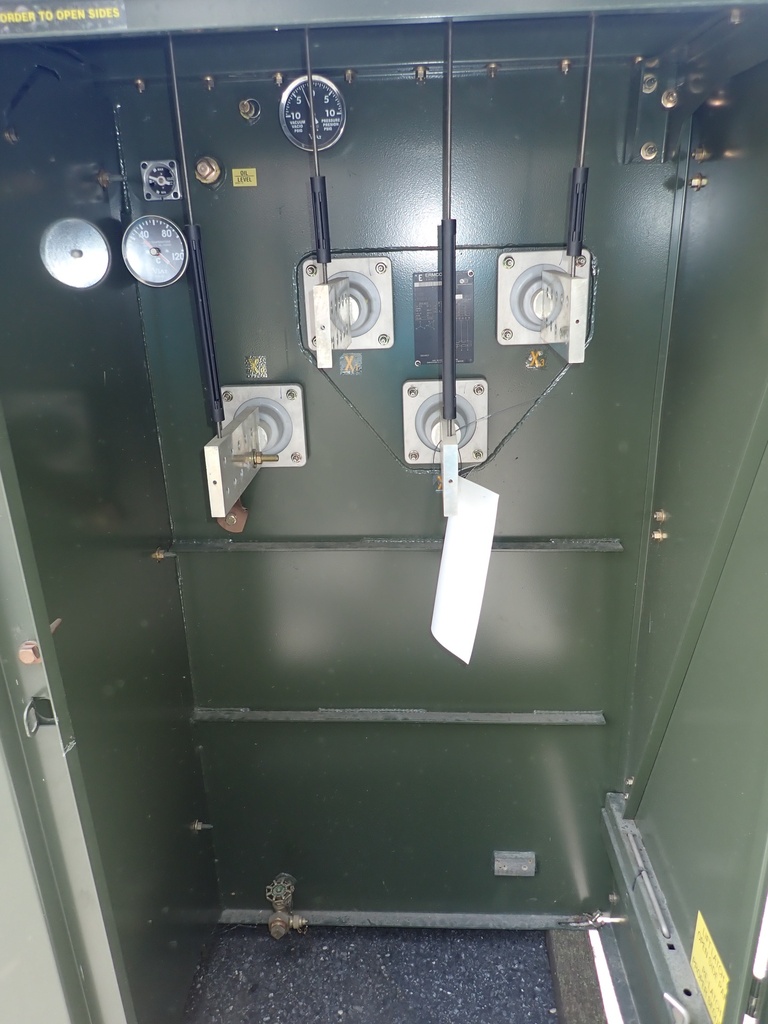

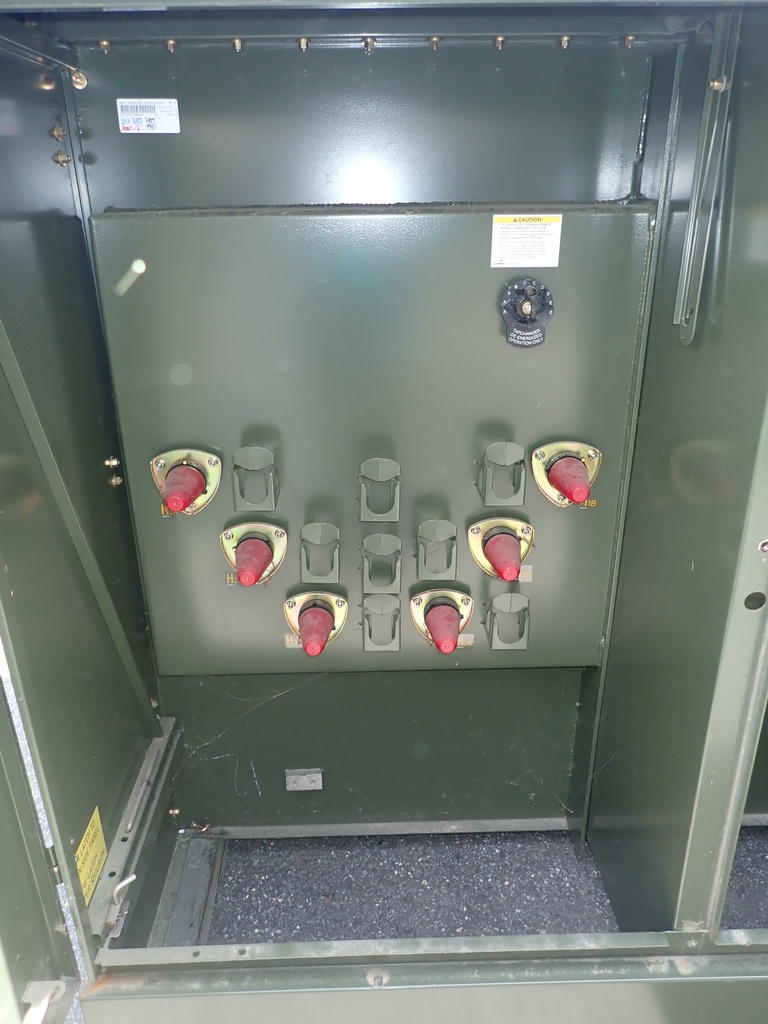

    All AL Windings, Dead Front, Loop Feed, Tap Changer, Liquid Temp Gauge,
    Liquid Level Gauge, Drain and Sample Valve, Vacuum Pressure Gauge, IMP 6.2%

    HV: 13200 Wye 95kV BIL
    LV: 480 Delta 30kV BIL

    TAPS: 13860-13530-13200-12870-12540

    Total Weight: 15233lbs
    Core and Coil: 6912lbs
    Tank & FItt: 3844lbs
    Liquid (oil): 4478lbs (597 gal)
