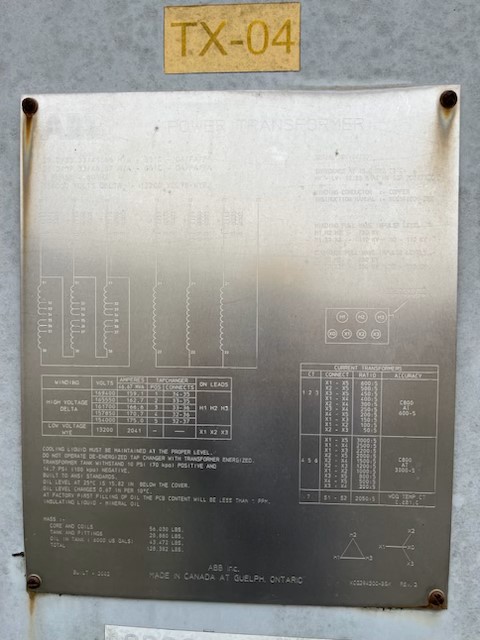

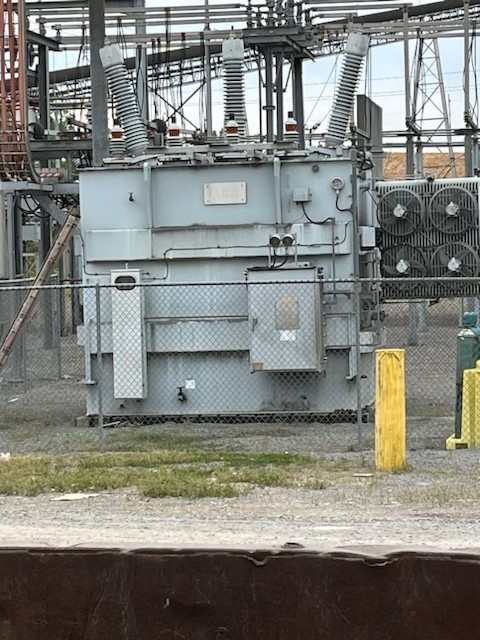

25/46.67 MVA, 154KV D - 13200Y ABB Substation Transformer

KVA: 25000/46670 KVA
Manufacturer: ABB
Phase: Three
HERTZ: 60
CLASS: OA/FA/FA
TEMPERATURE RISE: 55/65 °C
IMPEDANCE: 10.38
Primary - First: 154000 V
Primary - First Vector: Delta
Primary - First BIL: 750 kV
Secondary - First: 13200 V
Secondary - First Vector: Wye
Secondary - First BIL: 110 kV
HV BUSHING LOCATION: Top
HV Air Terminal Chamber: None
LV BUSHING LOCATION: Top
LV Air Terminal Chamber: None
STANDARD TAPS: 169400-165550-161700-157850-154000
CORE & COIL WEIGHT: 56030 lb
TANK & FITTINGS WEIGHT: 28880 lb
FLUID WEIGHT: 43472 lb
FLUID GALLONS: 6000 gal (US)
TOTAL WEIGHT: 128382 lb
FLUID TYPE: Mineral Oil
LIQUID LEVEL GAUGE: Yes
DRAIN & TEST VALVE: Yes
TEMPERATURE WINDING GAUGE: Yes
