7500/9375 Siemens Allis 13800D - 2400Y R-Temp Substation Transformer
Substation Transformer
Product Number:
045725
Full Product Description

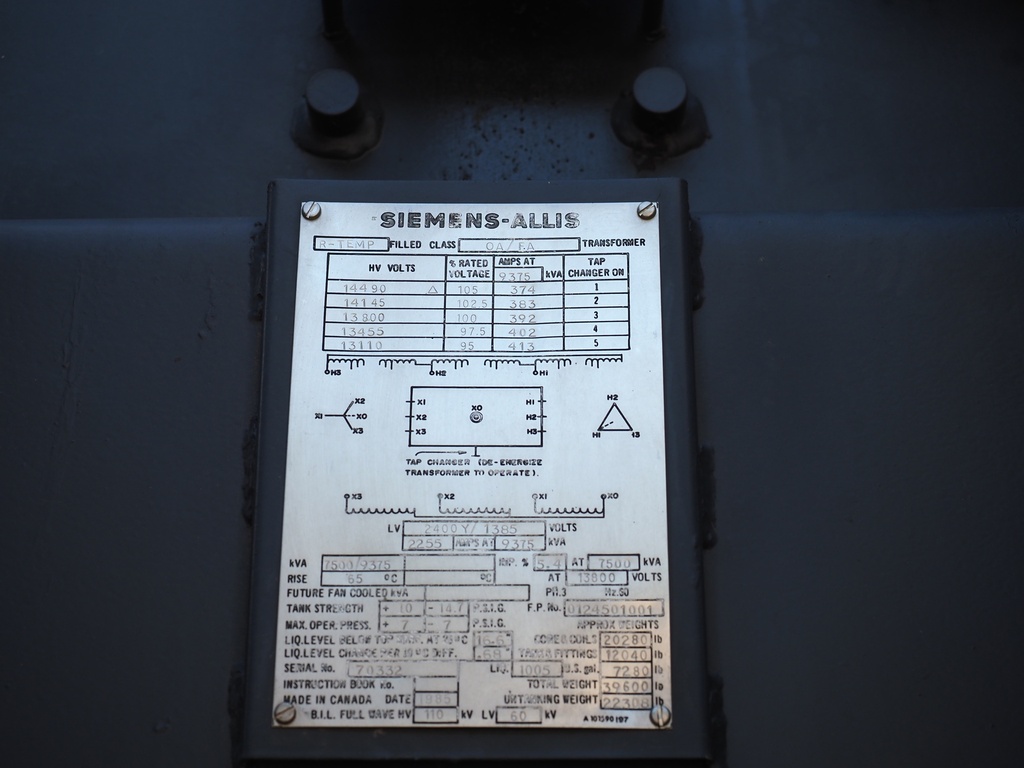

7500/9375 KVA Siemens-Allis R-Temp Substation Transformer, 3 Phase,

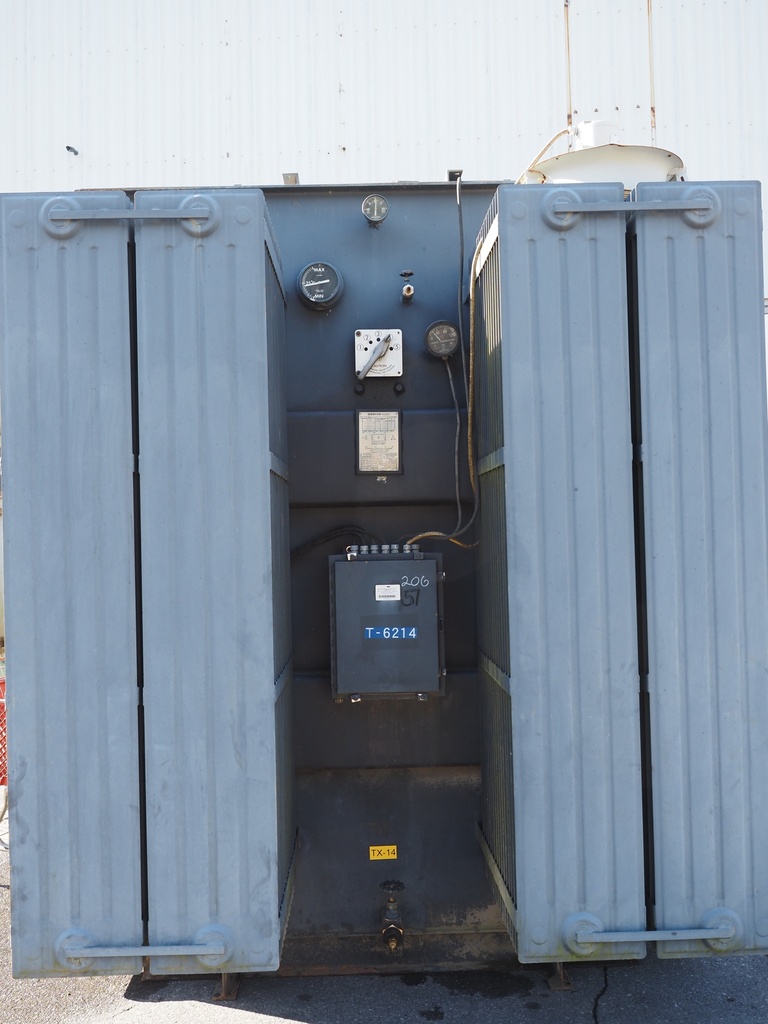

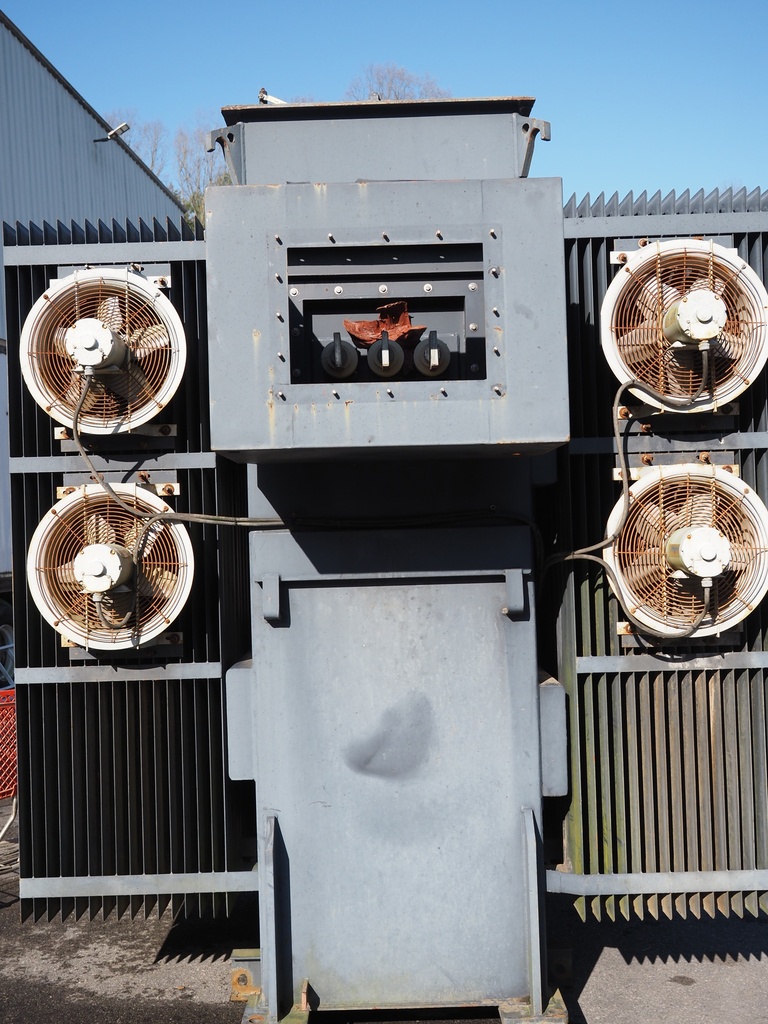

Class OA/FA, 65 Deg C Rise, 60hz, Tap Changer, Liquid Temp Gauge, Liquid Level Gauge,

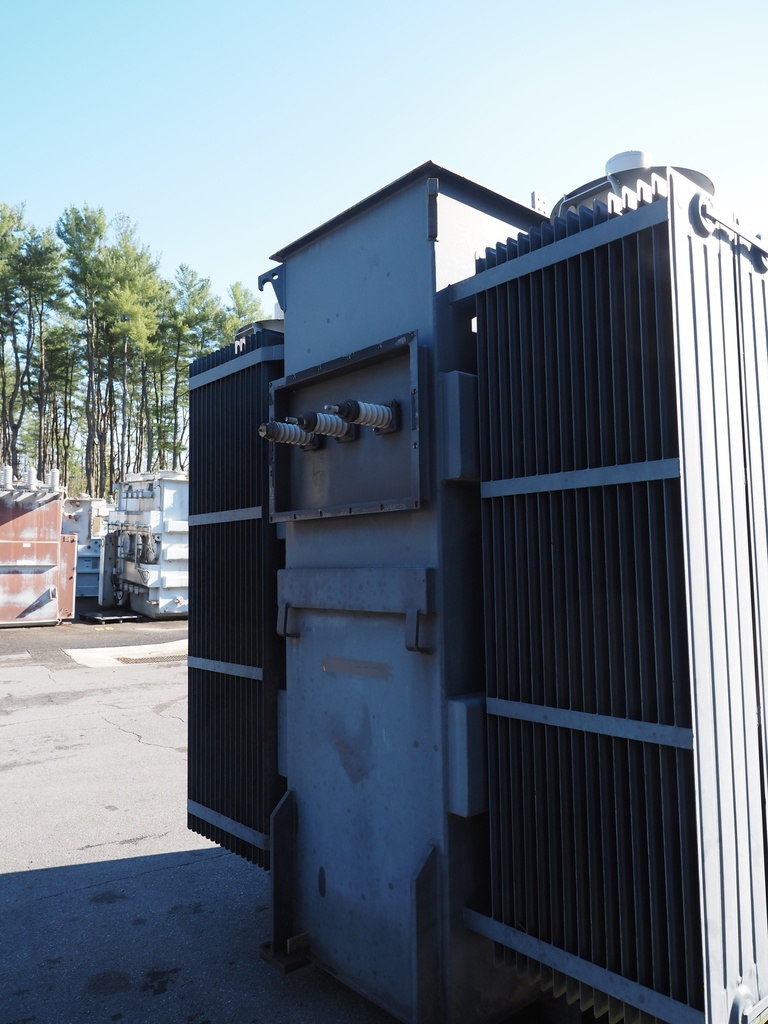

Drain and Sample Valve, Pressure Relief Device, Side x Side, Neutral top
HV: 13800 Delta 110kV BIL
LV: 2400/1385 Wye 60kV BIL
Taps: 14490-14145-13800-13455-13110
Total Weight: 39600lbs
Core and Coils: 21280lbs
Tank and Fittings: 12140lbs
Liquid: 7280lbs (1005 gal)
DIMS: 121" H x 115" W x 99" D
