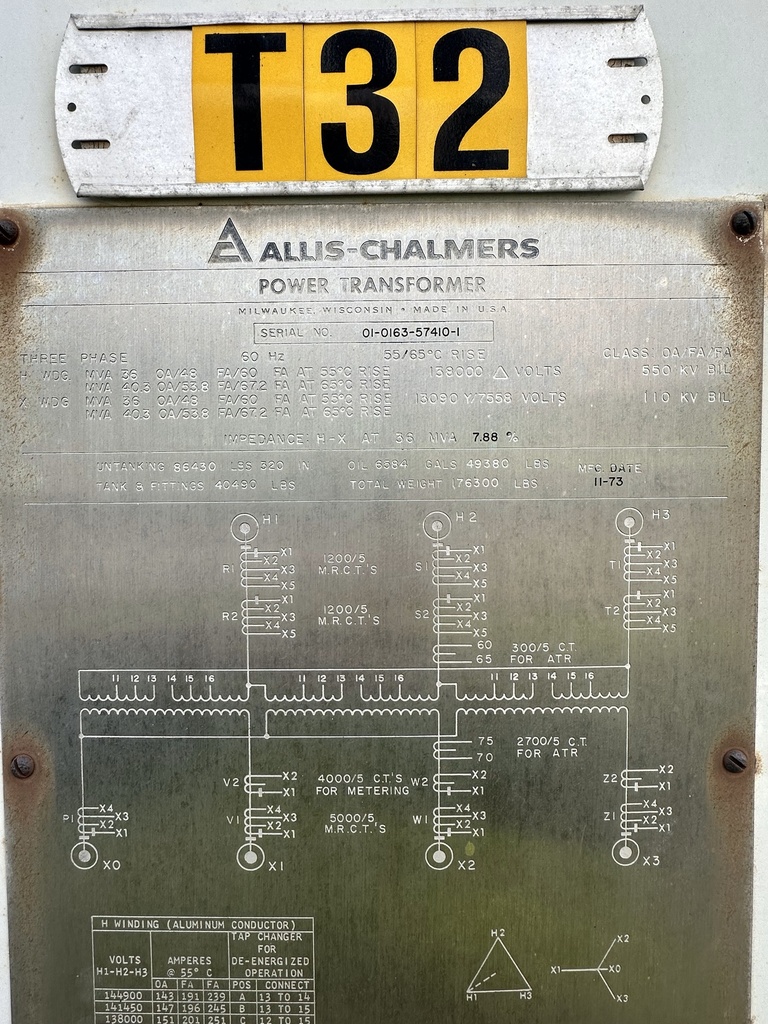

36/67.2 MVA 138000D - 13090Y Allis-Chalmers Power Transformer

KVA: 36000//67200 KVA
Manufacturer: Allis-Chalmers
Type: Power Transformer
Phase: Three
HERTZ: 60
CLASS: OA/FA/FA
TEMPERATURE RISE: 55/65 °C
IMPEDANCE: 7.88%
Primary - First: 138000 V
Primary - First Vector: Delta
Primary - First BIL: 550 kV
Secondary - First: 13090 V
Secondary - First Vector: Wye
Secondary - First BIL: 110 kV
HV BUSHING LOCATION: Side
LV BUSHING LOCATION: Side
STANDARD TAPS: 144900-141450-138000-134550-131100
CORE & COIL WEIGHT: 86430 lb
TANK & FITTINGS WEIGHT: 40490 lb
FLUID WEIGHT: 49380 lb
FLUID GALLONS: 6584 gal (US)
TOTAL WEIGHT: 176300 lb
FLUID TYPE: Mineral Oil
DRAIN & TEST VALVE: Yes
