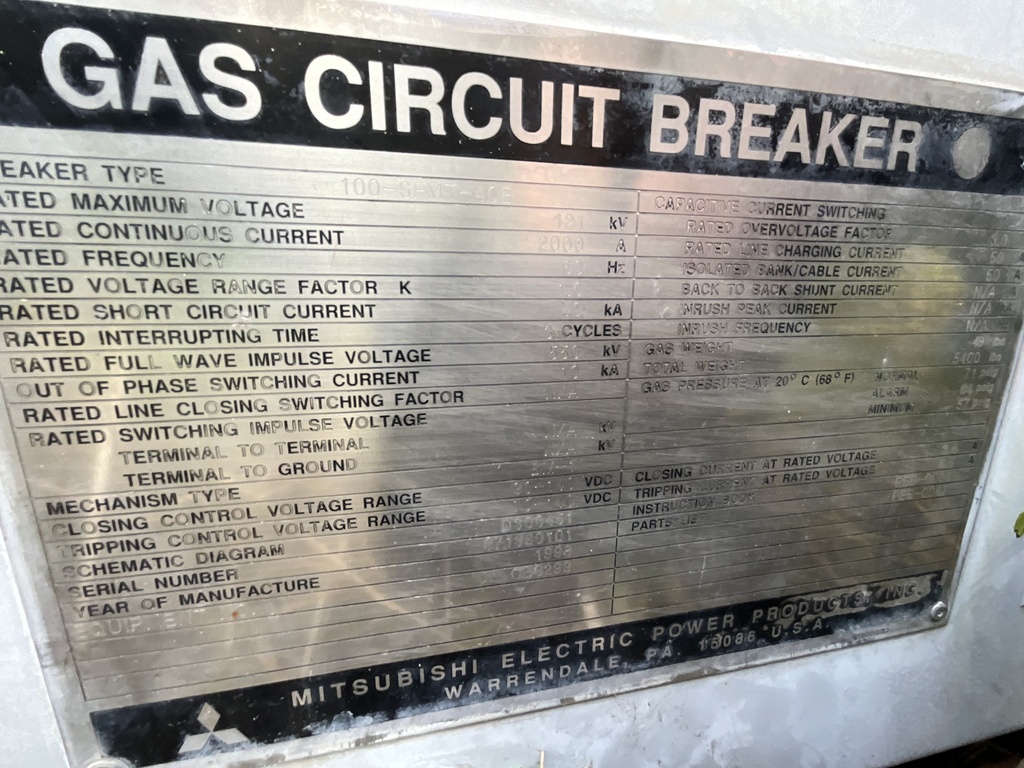

2000A 121KV Mitsubishi 100-SFMT-40E SF6 Circuit Breaker, 40 KAIC
SF6 Circuit Breaker
Product Number:
045684
Full Product Description
Manufacturer: Mitsubishi
Voltage: 121000 V
Frame Current - Amperage: 2000 Amp
Interrupting: 40 Kiloamp
Model/Style Number: 100-SFMT-40E
Close And Trip: 125 VDC
Basic Insulation Level: 550 KV
HERTZ: 60
Phase: 3
Interupt Cycle: 3
Range Factor "K": 1.0
Weight With Gas: 5400 lb
Weight Without Gas: 5351 lb
Pounds of Gas: 49 lb
Operating Mechanism: BM-1
Mechanism Function: Spring Charged
Mechanism Close & Trip: 125 VDC
MRCT - Multi Radio CT: Yes
CT #1 Quantity: 6
CT Ratio #1: 2000:5A
Manual: PEB-0066
