39200/52300/65300KVA, Ohio Transformer, 115000V, Delta, 13800V, Wye
Substation Transformer
Product Number:
045677
Full Product Description

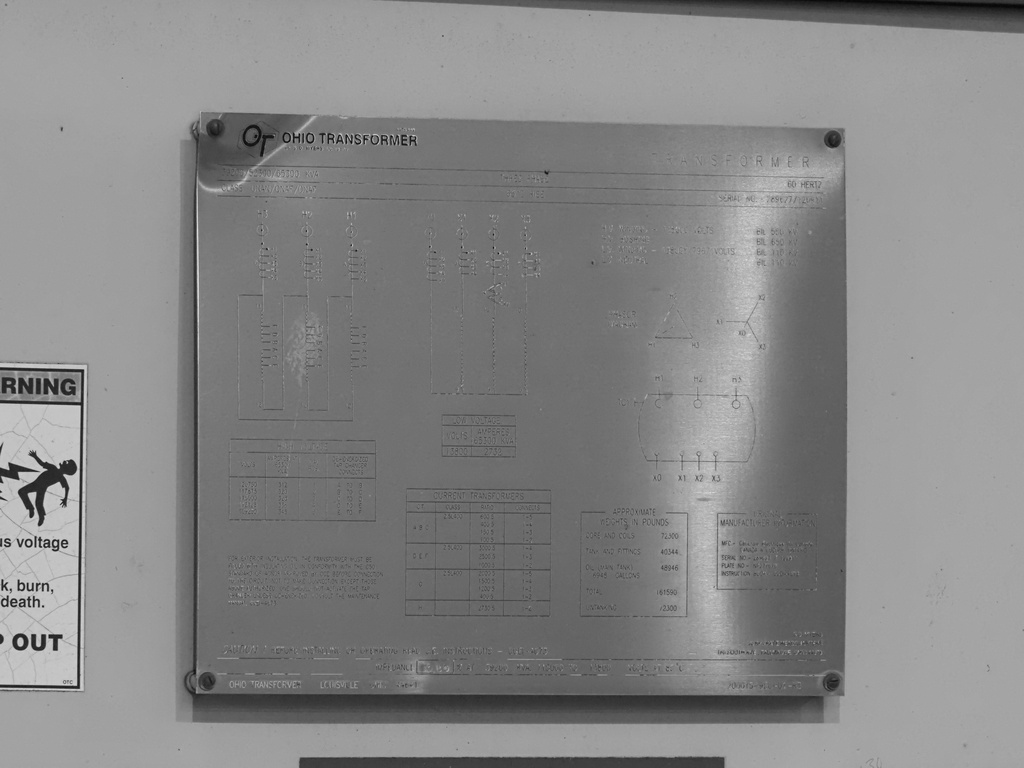

One (1) Ohio Transformer Company 39.2/52.3/65.3 MVA Substation Transformer,
3 Phase, 60hz, Class ONAN/ONAN/ONAF, 65 Deg C Rise, Liquid Level Gauge,
Drain and Sample Valve, Winding Temp Gauge,
S/N: 289627/120911, 10.35% Impedance
HV: 115kv D BIL: 550kV
LV: 13800 Wye BIL: 110kV
Taps: 120750-117875-115000-112125-109250
Total Weight: 161590lbs
Core and Coil: 72300lbs
Tank and Fittings: 40344lbs
Fluid Weight: 48946lbs (6948 gal)
