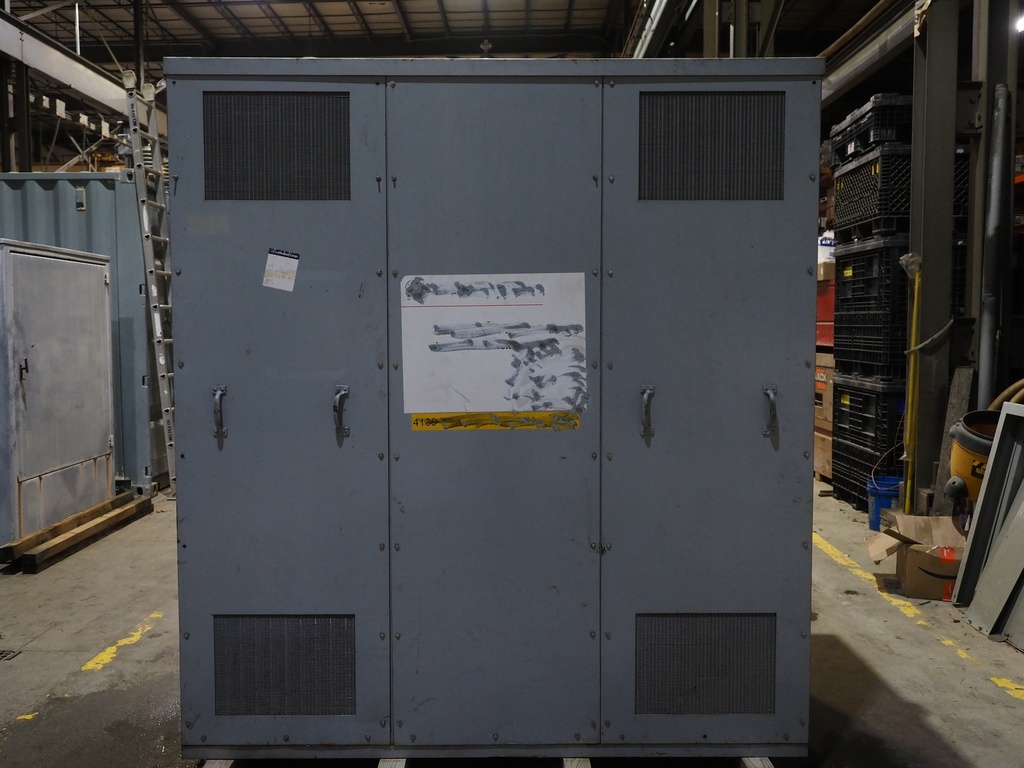

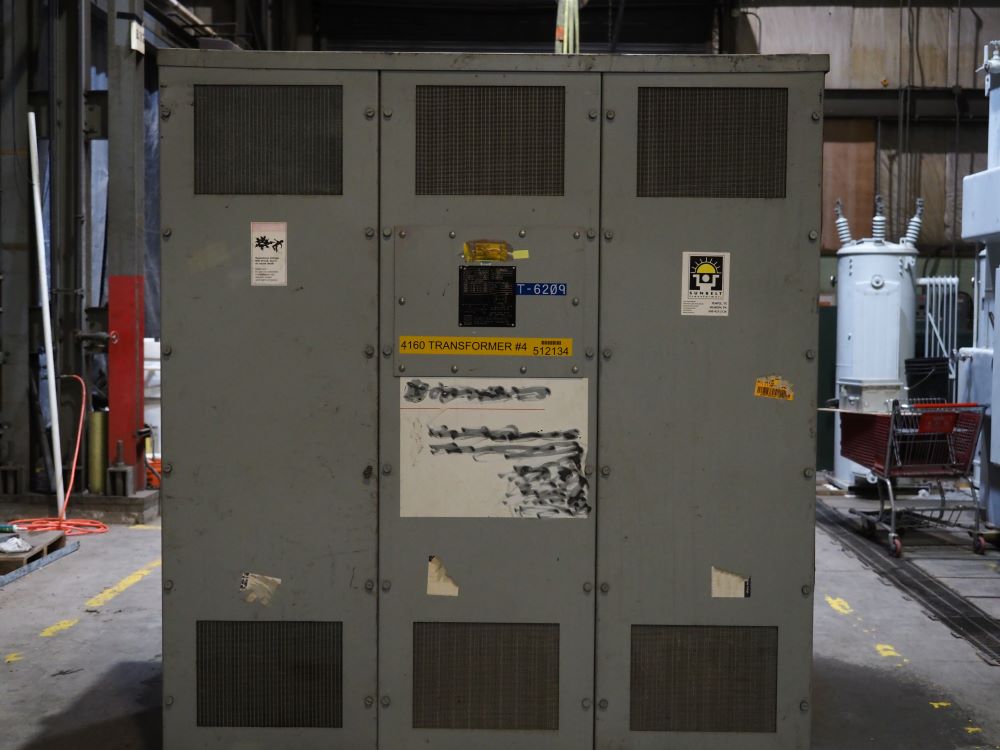

1000 KVA, Pri 4160 D, Sec 480 Y, ITE/Sunbelt, Open Wound, Indoor

One (1) 1000 KVA ITE/Sunbelt Dry Type Transformer, Indoor, 150 Deg C Rise,

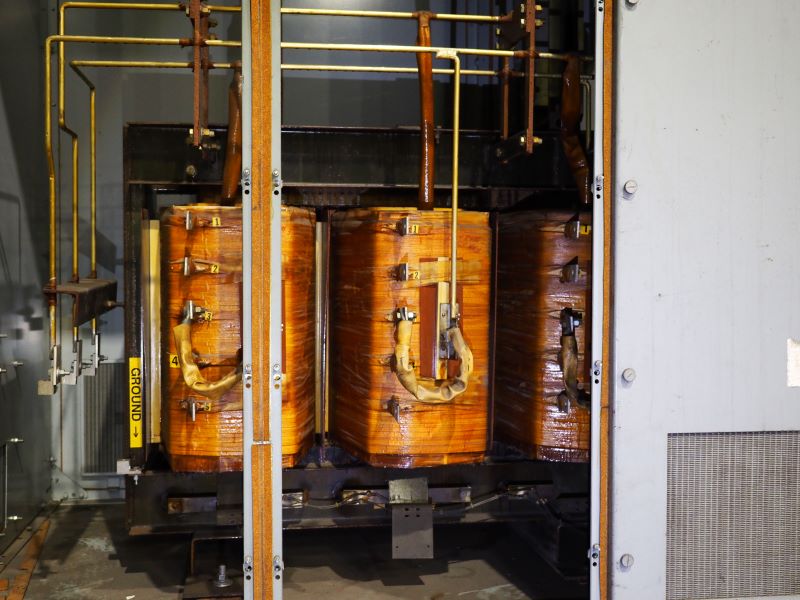

Open Wound Core, Class AA, 3 Ph, 60HZ, Aluminum Windings, 5.8% Imp,

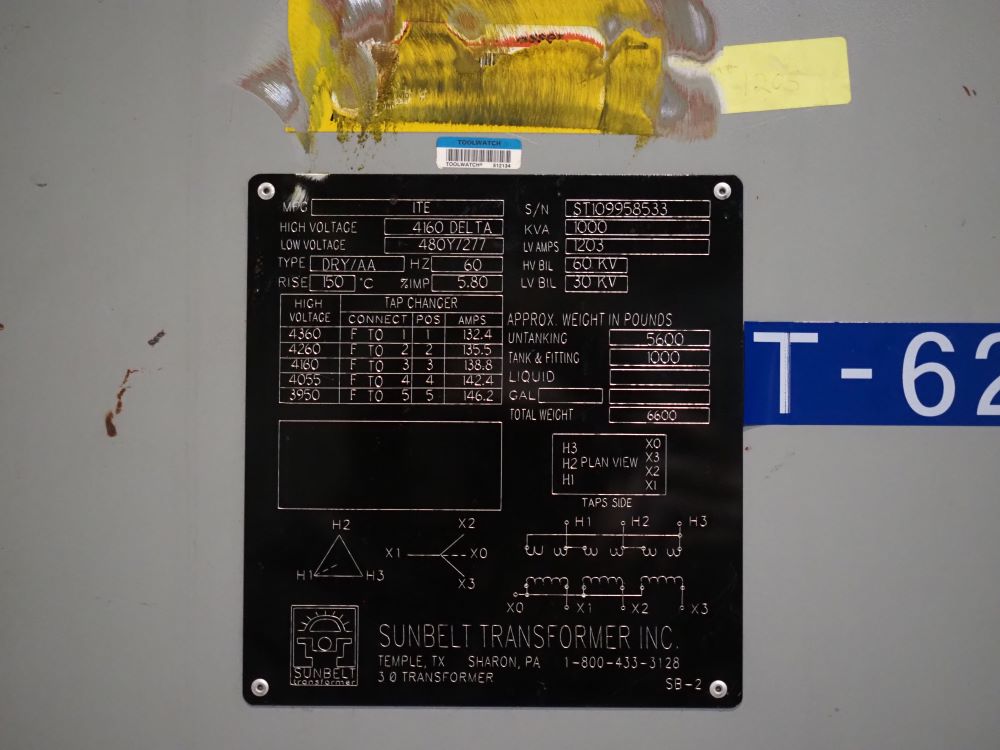

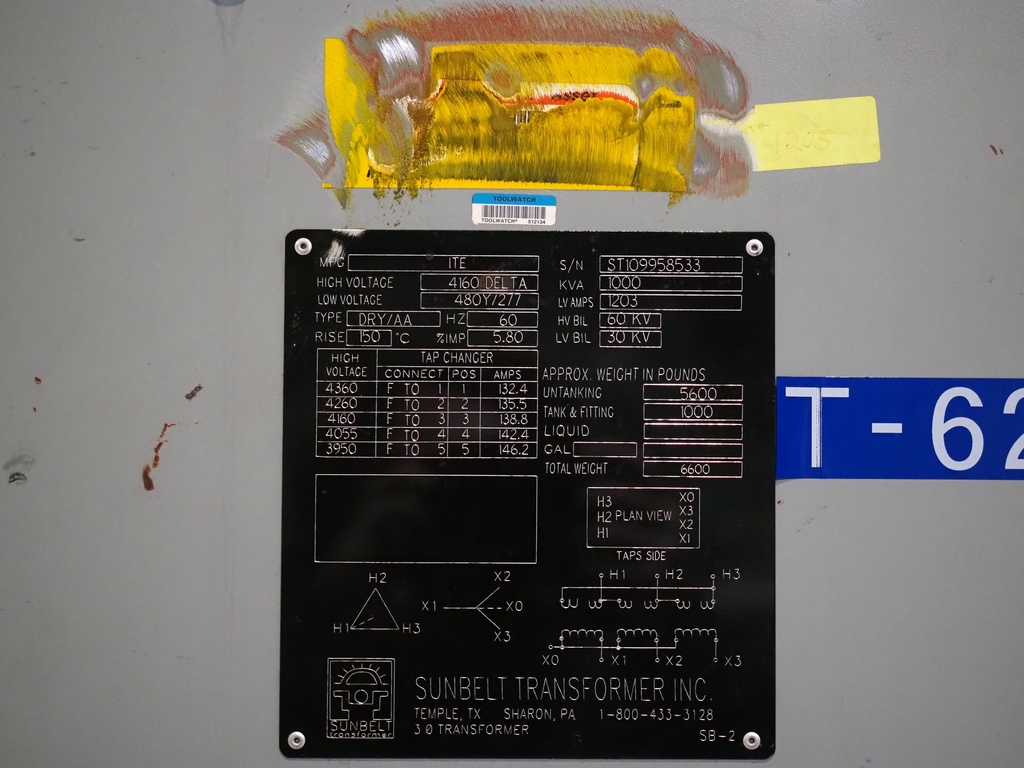

HV: 4160 Delta 60kV BIL
LV: 480Y/277 30kV BIL

TAPS: 4360-4260-4160-4055-3950

Total Weight: 6600lbs
Core and Coils: 5600lbs
Tank & Fitts: 1000lbs

Overall DIMs: 90"H x 84"L x 55"D

Core Dims: 78.5"H x 61"L x 40"D
