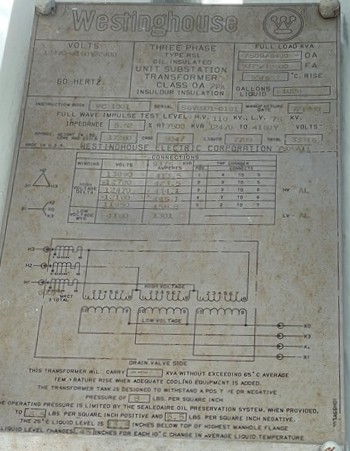

7500/8400 KVA, Pri 12470 D, Sec 4160 Y, WESTINGHOUSE SUBSTAITON TRANSFORMER

JVT-3924

ONE (1) 7500/8400 KVA WESTINGHOUSE SUBSTATION TRANSFORMER,
60 HZ, 55/65 DEG C RISE, 3 PH, 5.52% IMPEDANCE, OA/FA,
SIDE-SIDE BUSHINGS, FULL ATC ON HV SIDE, THROAT ON LV
SIDE, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE,
VACUUM PRESSURE GAUGE, PRESSURE RELEASE VALVE, DRAIN &
SAMPLE VALVE,

HV: 12470 DELTA BIL: 110 KV
LV: 4160 WYE/2400 BIL: 75 KV

TAPS: 13090-12780-12470-12160-11850

TOTAL WEIGHT: 33016 LBS
CORE & COILS: 17260 LBS
TANK & FITT.: 8047 LBS
LIQUID-OIL: 7700 LBS (1026 GAL)

DIMENSIONS: 11'w x 8'4"L x 8'H
