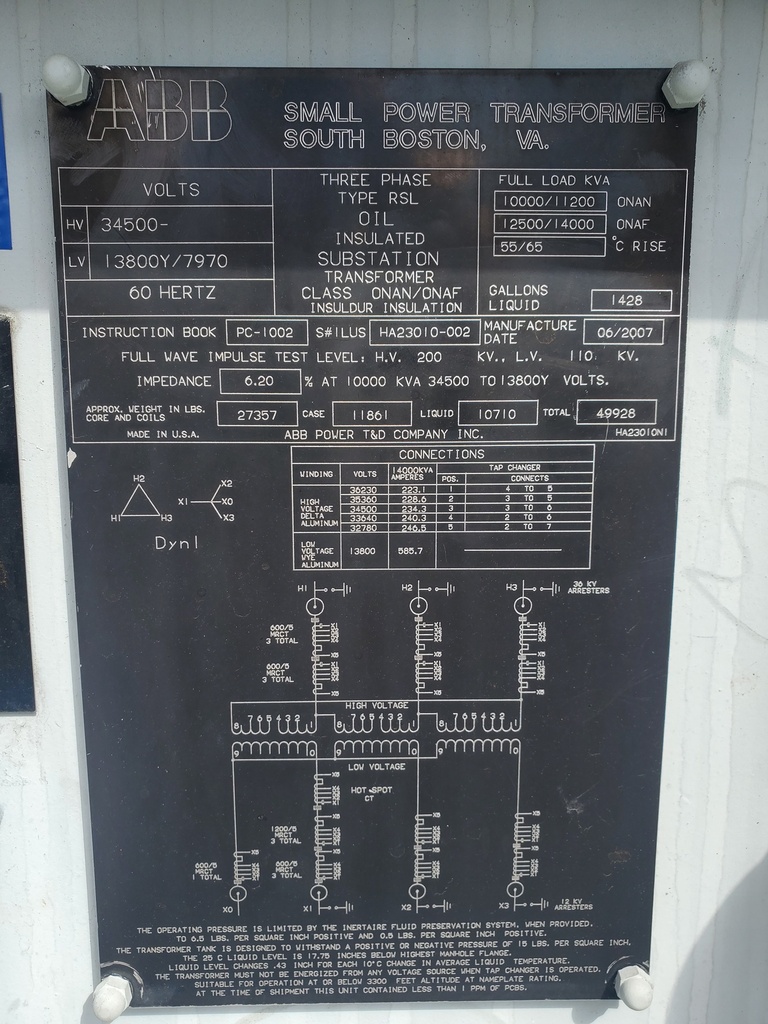

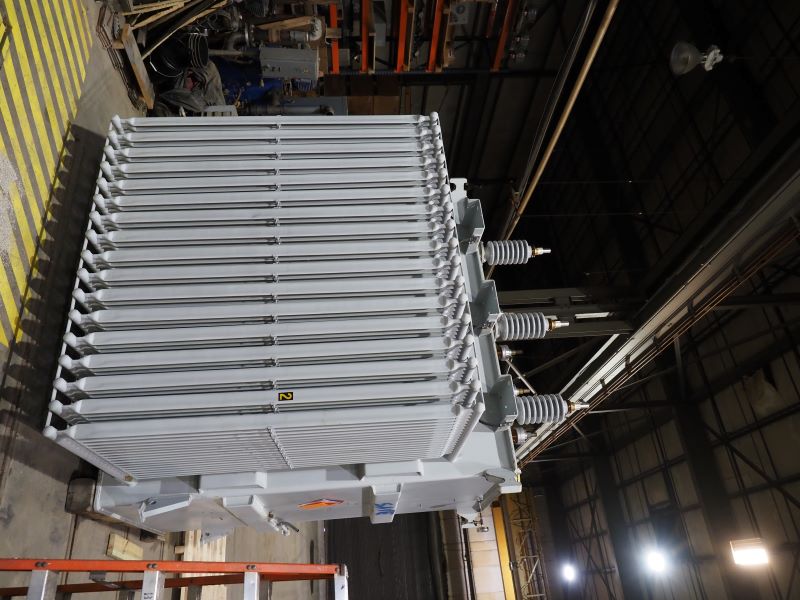

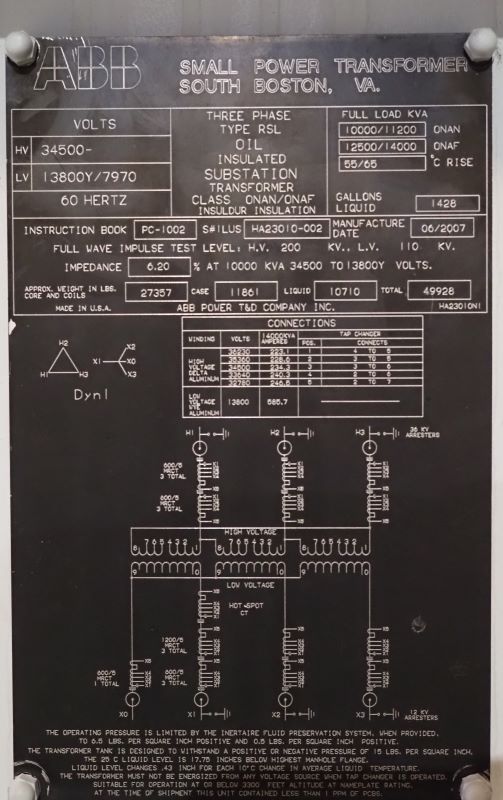

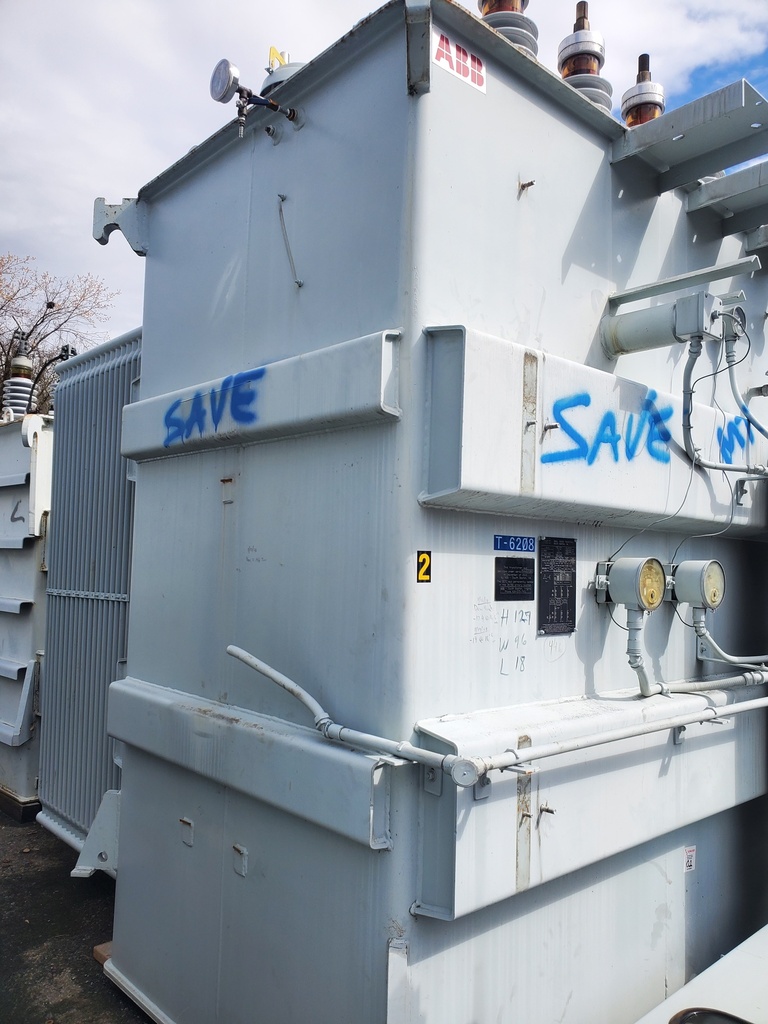

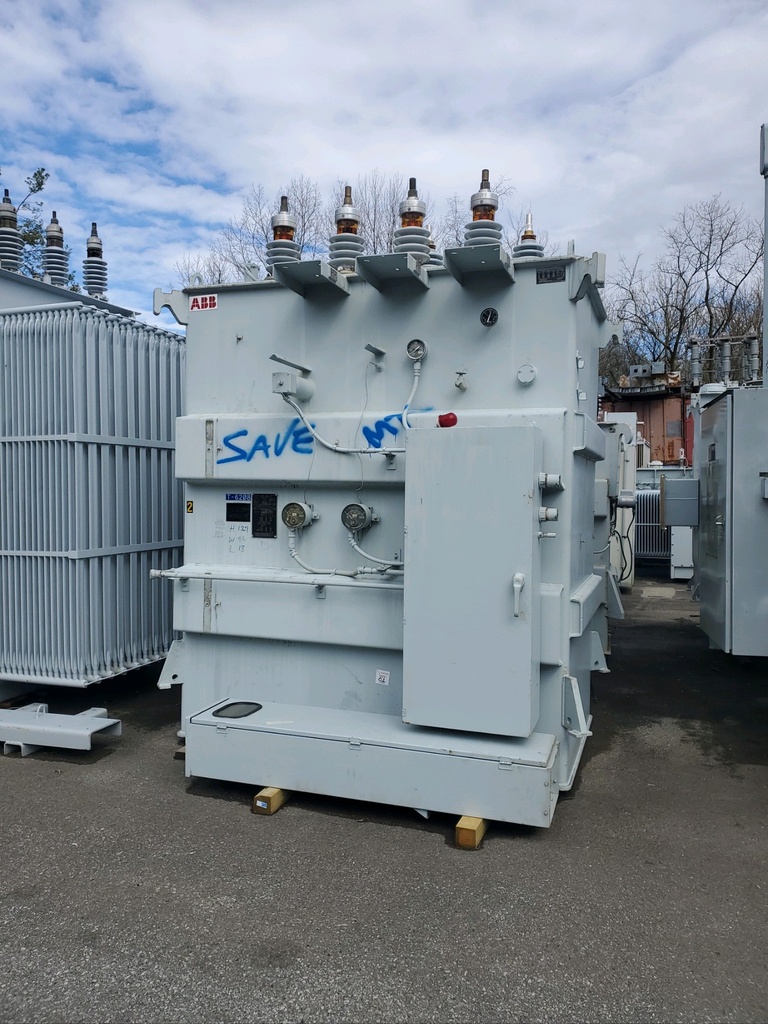

10000/14000 KVA, Pri 34500 D, Sec 138000 Y, 2007, ABB Substation Transformer

One (1) 10/11.2/12.5/14 MVA ABB Substation Transformer, 3 Phase, 60hz,
55/55/65/65 Deg C Rise, ONAN/ONAN/ONAF/ONAF, LV 3x 1200:5 MRCTs,
LV 3x 600:5 MRCTs, HV 6x MRCTs 600:5, Netural 1x 600:5 MRCT,
36kV HV Arresters, 12kV LV Arrestesr, Winding Temp Gauge, Liquid Temp
Gauge, Liquid Level Gauge, Vacuum Press Gauge, Pressure Relief Device,
Drain and Sample Valve,

HV: 34500D BIL: 200kV
LV: 13800Y/7970 BIL: 110kV

TAPS: 36230-35360-34500-33640-32780
