  2. 2500 KVA, Pri 13800 D, Sec 480 Y, 2010, ABB, Dead Front Loop Feed,

2500 KVA, Pri 13800 D, Sec 480 Y, 2010, ABB, Dead Front Loop Feed,

https://belyeapower.redstormlabs.com/web/image/product.template/35173/image_1920?unique=e118c1b

Pad-Mount Transformer

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045568
    Request Quote

    Full Product Description

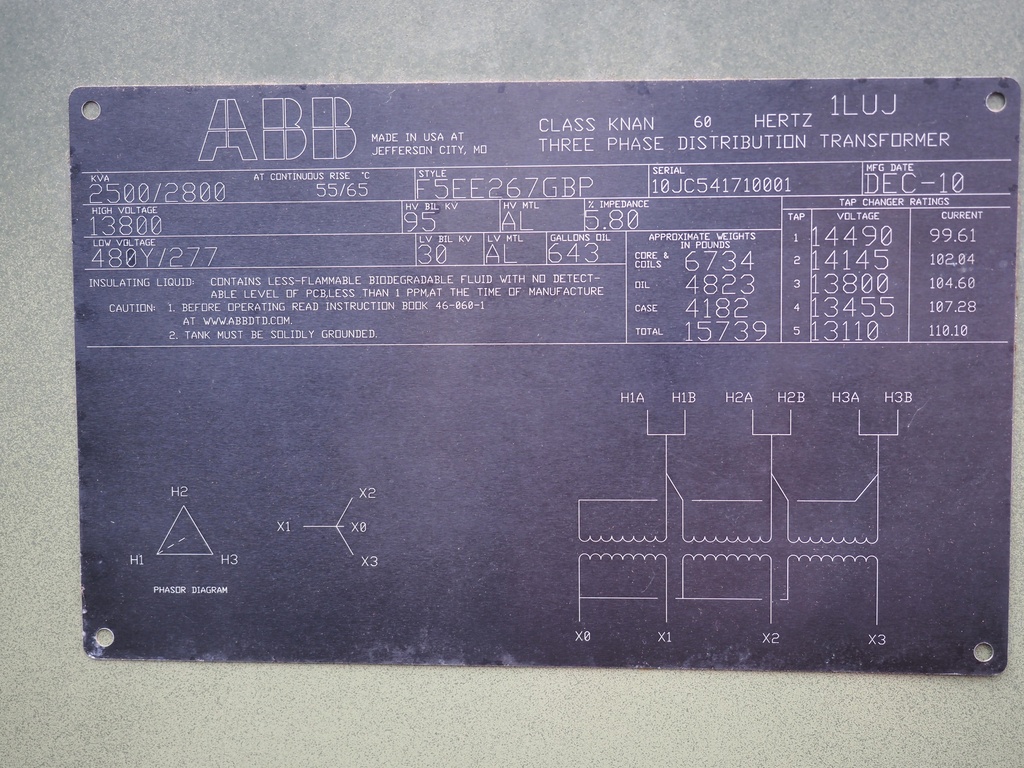

    One (1) 2500/2800 KVA ABB PAD-MOUNT TRANSFORMER, CLASS KNAN, 3 PHASE, 60HZ
    55/65 DEG C RISE, DEAD FRONT LOOP FEED, TAP CHANGER, LIQUID TEMP GAUGE
    LIQUID LEVEL GAUGE, VACUUM PRESSURE GAUGE, TAP CHANGER, DRAIN AND
    SAMPLE VALVE, ALL ALUMINUM WINDINGS, BIOTEMP FLUID

    HV: 13800D 95KV BIL
    LV: 480Y/277 30KV BIL

    TAPS: 14490-14145-13800-13455-13110

    TOTAL WEIGHT: 15379LBS
    CORE AND COILS: 6734LBS
    TANK AND FITTS: 4182LBS
    LIQUID: 4823LBS (643 gal)
