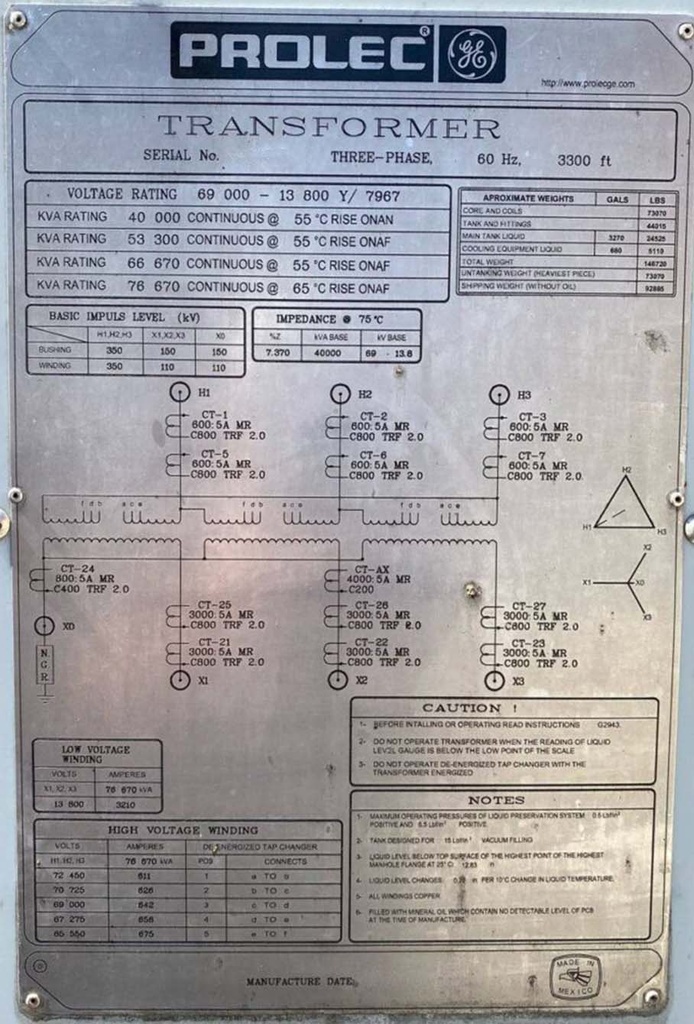

40/53/66/76MVA, 69000 D, Sec 13800 Y, GE PROLEC SUBSTATION TRANSFORMER

ONE (1) 40/53/66/76 MVA GE PROLEC SUBSTATION TRANSFORMER,
60 HZ, 3 PH, 55/65 DEG C RISE, ONAN/ONAF/ONAF, 7.37%
IMPEDANCE, ALL COPPER WINDINGS, LIQUID PRESERVATION
SYSTEM, PRESSURE GAUGE, LIQUID LEVEL GAUGE, LIQUID TEMP
GAUGE, PRESSURE RELEASE VALVE, DRAIN & SAMPLE VALVES,


HV: 69000 DELTA BIL: 350KV
LV: 13800 WYE /7967 BIL: 110KV

TAPS: 72450-70725-69000-67275-65550

TOTAL WEIGHT: 146720 LBS
CORE & COILS: 73070 LBS
TANK & FITT.: 44015 LBS
LIQUID-OIL: MAIN TANK: 24525 LBS (3270 GAL)
COOLING TK: 5110 LBS (680 GAL)
