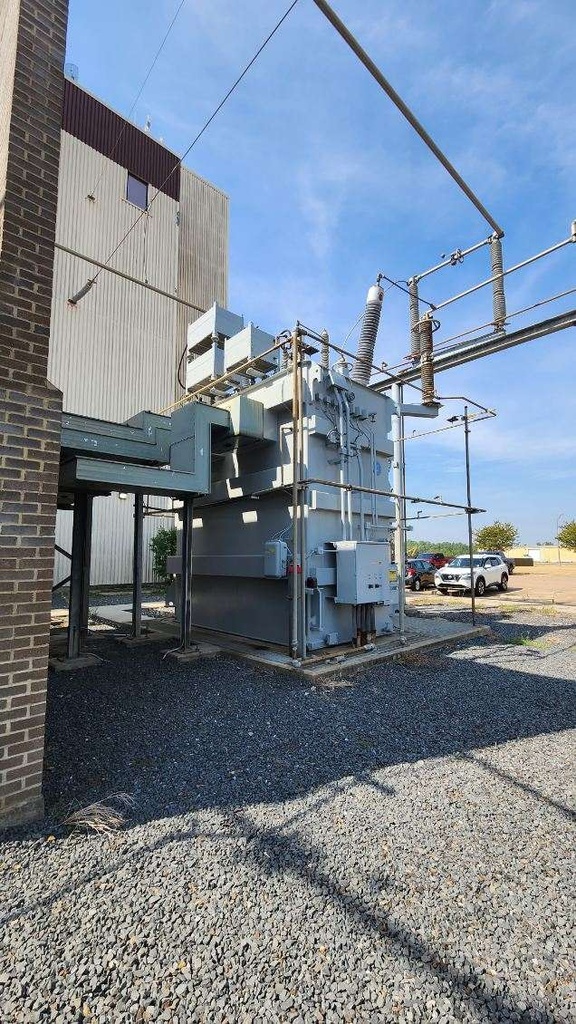

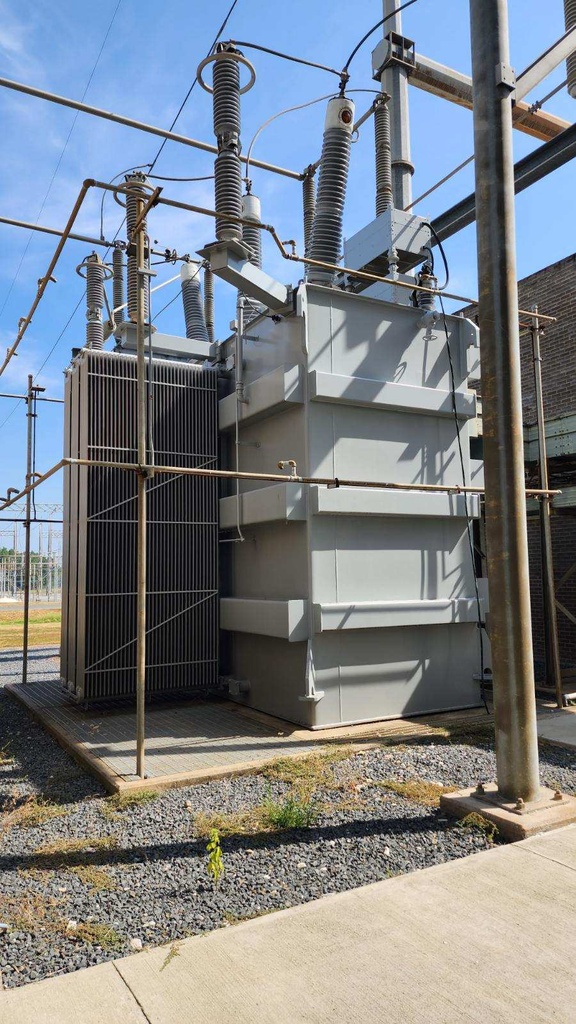

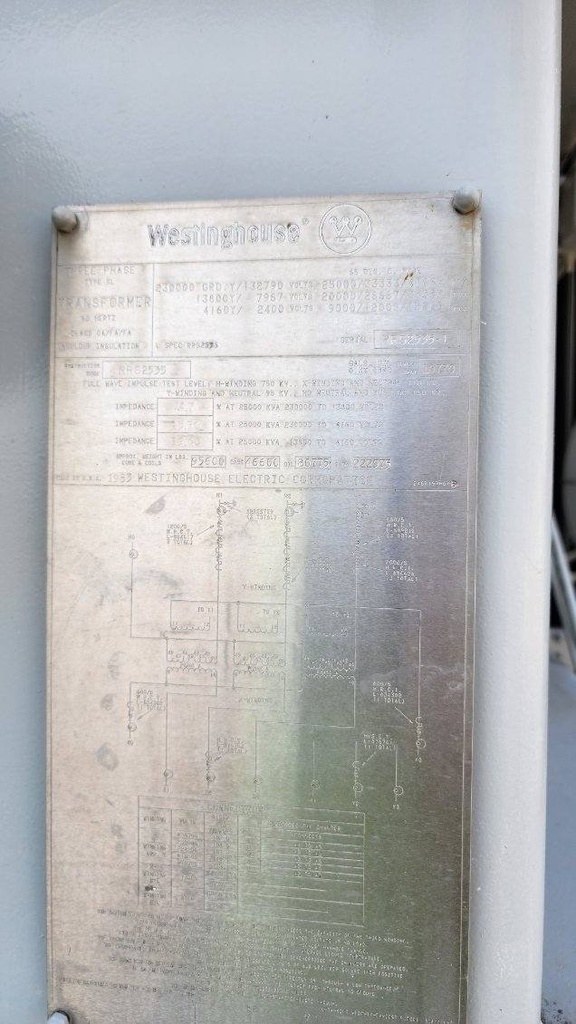

25/41.6MVA, Pri 230000 Y, Sec 13800Y x 4160Y WESTINGHOUSE SUBSTATION TRANSFORMER

ONE (1) 25/41.6 MVA WESTINGHOUSE SUBSTATION TRANSFORMER,
3 PH, 60 HZ, CLASS OA/FA/FA, TYPE SL, TOP-TOP BUSHINGS,
WINDING TEMP GAUGE, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE,
PRESSURE GAUGE, PRESSURE RELIEF VALVE, DRAIN & SAMPLE VALVES

HV: (41667 KVA) 230000 GRDY ( 4.90% IMP) BIL: 750 KV
LV: (33333 KVA) 13800 WYE (13.90% IMP) BIL: 110 KV
LV: (15000 KVA) 4160 WYE (19.10% IMP) BIL: 95 KV

TAPS: 235750-230000-224250-218500-212750

CORE & COILS: 95600 LBS
TANK & FITT.: 46600 LBS
LIQUID-OIL: 80775 LBS (10770 GAL)
TOTAL WEIGHT: 222975 LBS

**THE ARITHMETICAL SUM OF THE LOADS ON ANY TWO WINDINGS MUST NEVER
EXCEED THE CAPACITY OF THE THIRD WINDING**
