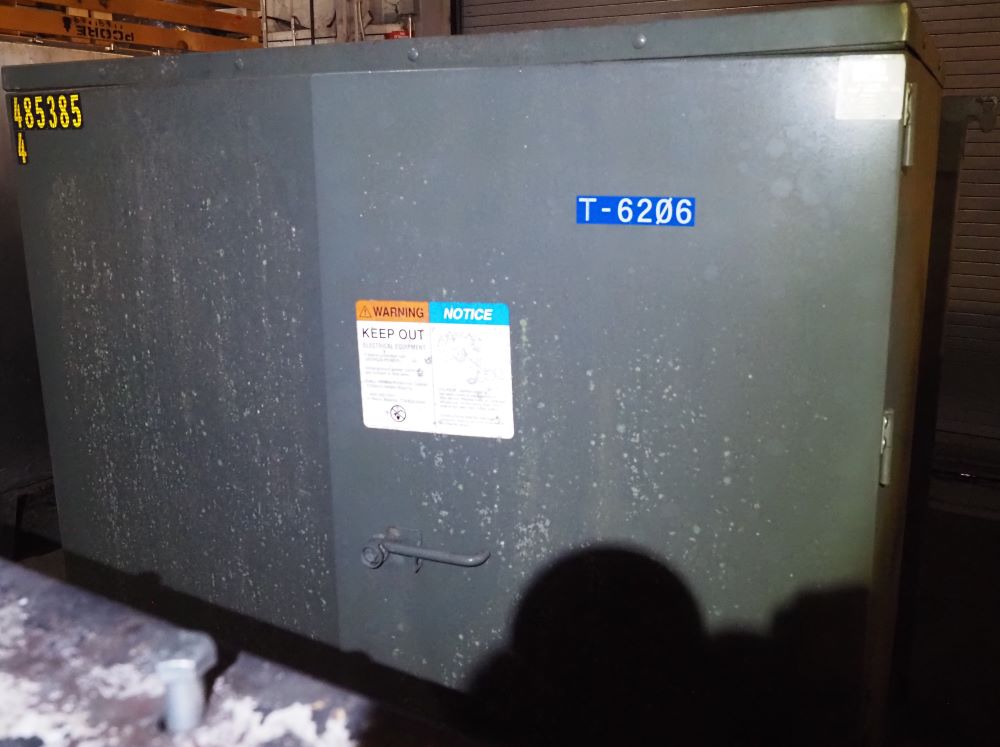

300 KVA, Pri 12470GRDY/7200, Sec 480Y/277, 2006, Dead Front, Loop Feed
Pad-Mount Transformer
Product Number:
045483
Full Product Description
One (1) 300 KVA Howard Industries Pad-Mount Transformer, 3 Phase, 60hz,

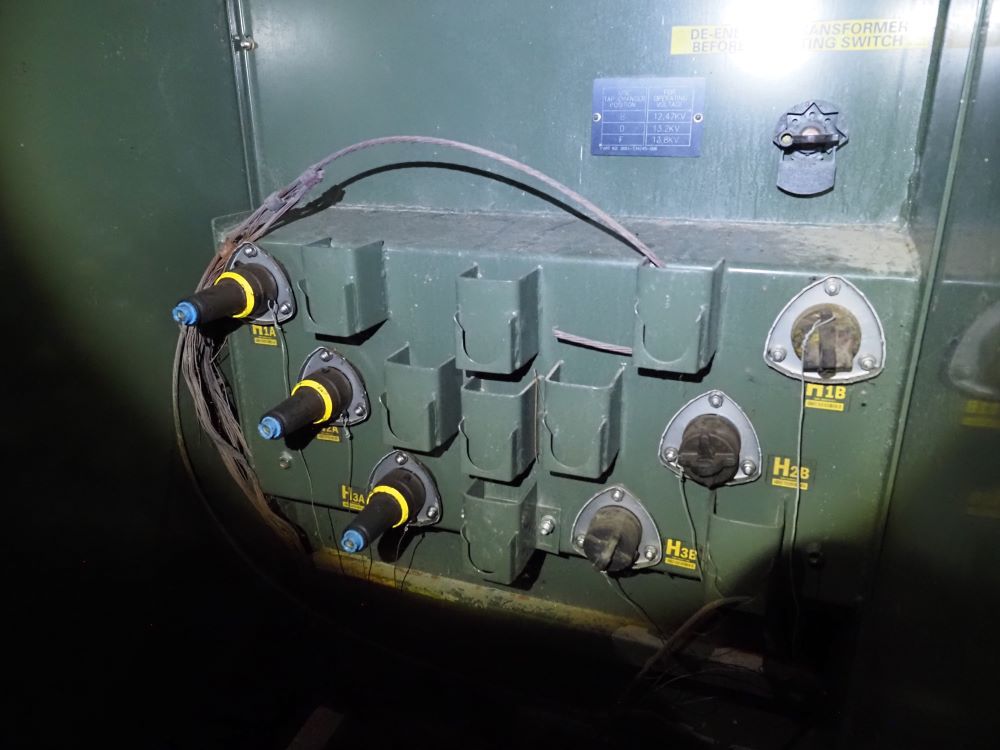

Dead Front, Loop Feed, Liquid Level Gauge, Pressure Relief Valve,
HV Cu Windings, LV Al Windings, Drain & Sample Valve,
25 Amp Bayonet Fuses CLF 100amp HTSS, 3 Position Tap Changer

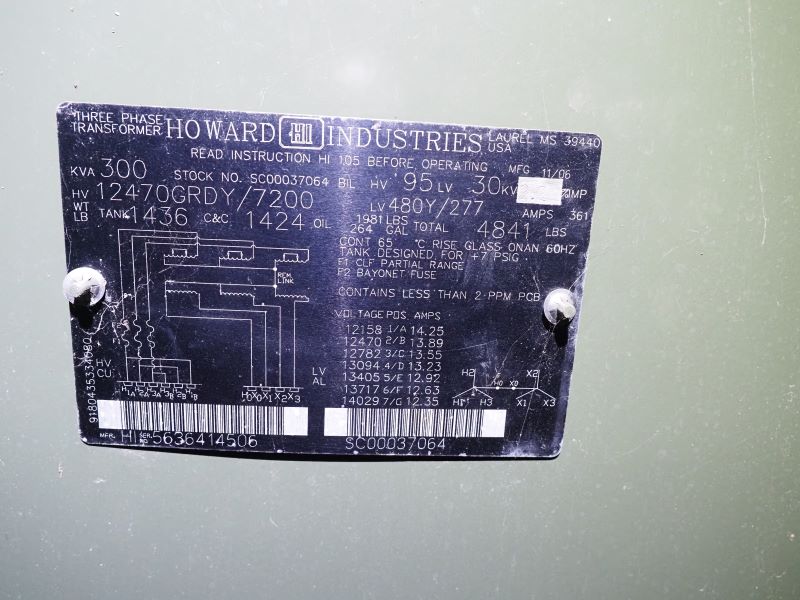

HV: 12470GRDY/7200 BIL: 95kV

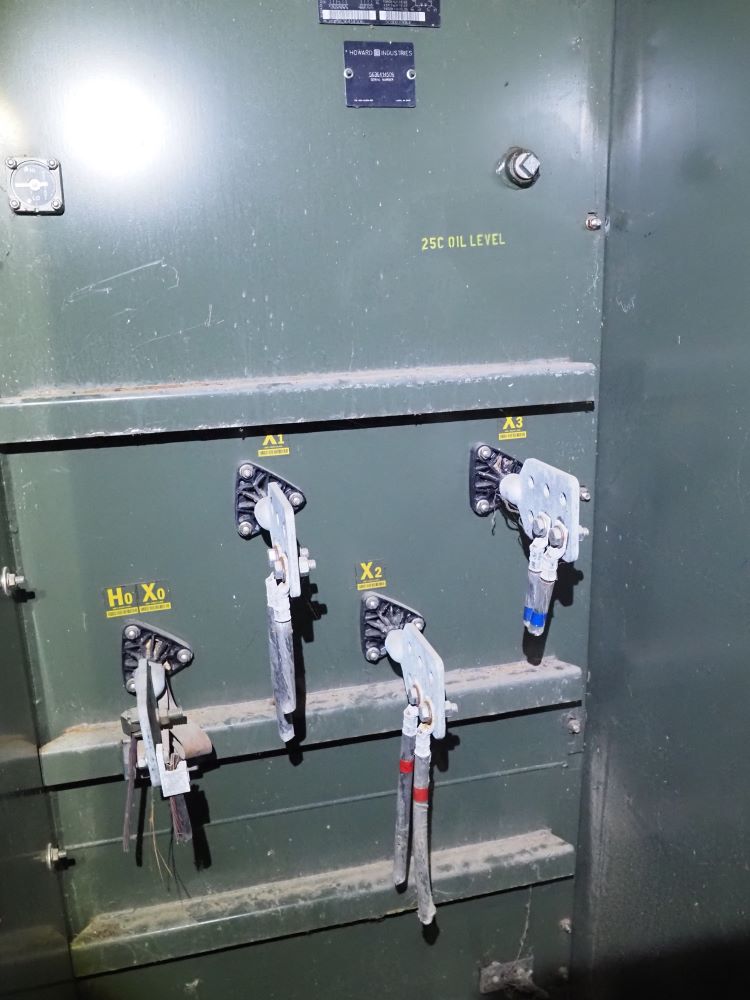

LV: 480Y/277 BIL: 30kV
TAPS: 12158-12470-12782-13094-13405-13717-14029
Total Weight: 4841lbs
Core & Coil : 1424lbs
Tank & Fitt : 1436lbs
Liquid : 1981lbs (264 Gal)
DIMMS: 70"H x 56"L x 72"D
Dead Front, Loop Feed, Liquid Level Gauge, Pressure Relief Valve,
HV Cu Windings, LV Al Windings, Drain & Sample Valve,
25 Amp Bayonet Fuses CLF 100amp HTSS, 3 Position Tap Changer
HV: 12470GRDY/7200 BIL: 95kV
LV: 480Y/277 BIL: 30kV
TAPS: 12158-12470-12782-13094-13405-13717-14029
Total Weight: 4841lbs
Core & Coil : 1424lbs
Tank & Fitt : 1436lbs
Liquid : 1981lbs (264 Gal)
DIMMS: 70"H x 56"L x 72"D
