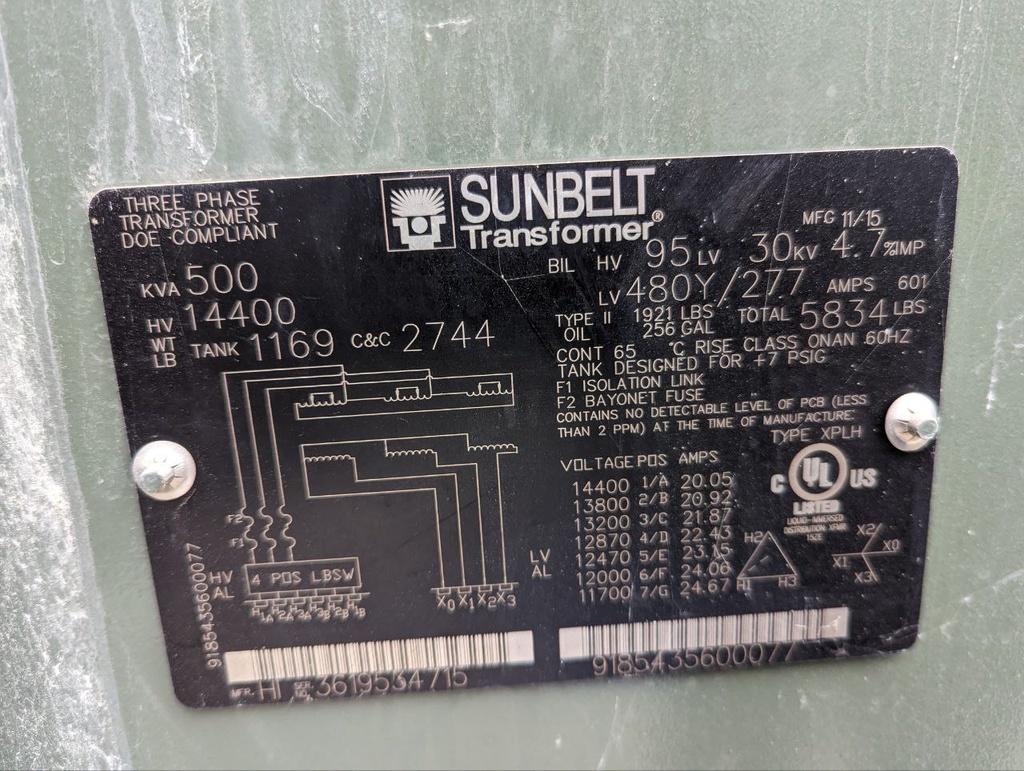

500 KVA, Pri 14400 D, Sec 480 Y, DF/RF SUNBELT PADMOUNT TRANSFORMER W/J-TAPS

ONE (1) 500 KVA SUNBELT PADMOUNT TRANSFORMER
3 PH, 65 DEG C RISE, W/ J-TAPS, 60 HZ, 4.7% IMPEDANCE,
LIQUID TEMP GAUGE, LIQUID LEVEL GAUGE, PRESSURE GAUGE,
BAYONET FUSES, PRESSURE RELEASE DEVICE, DRAIN & SAMPLE VALVE

HV: 14400 DELTA BIL: 95 KV
LV: 480Y/277 BIL: 30 KV

TAPS: 14400-13800-13200-12870-12470-12000-11700

TOTAL WEIGHT: 58340LBS
CORE & COILS: 2744 LBS
TANK & FITT.: 1169 LBS
LIQUID-OIL: 1921 LBS (256 GAL)

DIMENSIONS: TBD
