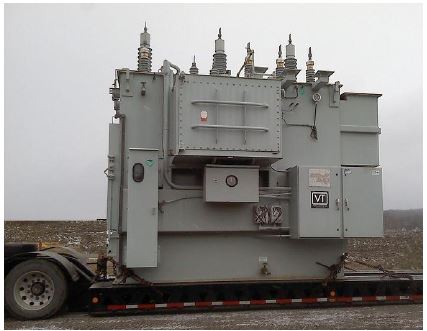

39/52/65 MVA, Pri 115000 GRDY, Sec 34500 GRDY, VIRGINIA SUBSTATION TRANSFORMER
TAP CHANGING SUBSTATION TRANSFORMER
Product Number:
045449
Full Product Description
ONE (1) 39/52/65 MVA VIRGINIA LOAD TAP CHANGING SUBSTATION TRANSFORMER,
60 HZ, 3 PH, ONAN/ONAF/ONAF, 65/55 DEG C RISE, 7.23% IMPEDANCE,
TOP-TOP BUSHINGS, CU WINDINGS, LTC: 33 STEPS FROM NOMINAL,
OIL TEMP GAUGE, OIL LEVEL GAUGE, VACUUM PRESSURE GAUGE,
PRESSURE RELEASE VALVE, DRAIN & SAMPLE VALVE,
HV: 115000 GRDY BIL: 450 KV
LV: 34500 GRDY BIL: 200 KV
TERTIARY: 13800 (13/17/21.7 MVA) UNLOADED & BURIED
TAPS: 120750-117875-115000-112125-109250
TOTAL WEIGHT: 195000 LBS
CORE & COILS:
TANK & FITT.:
LIQUID-OIL:
DIMENSIONS: 270"W x 200"D x 211.65"H
SHIPPING DIMENSIONS: 215"W x 143"D x 160"H
