2500 KVA, Pri 34500 D, Sec 416 Y, JSHP PADMOUNT TRANSFORMER:24, USED

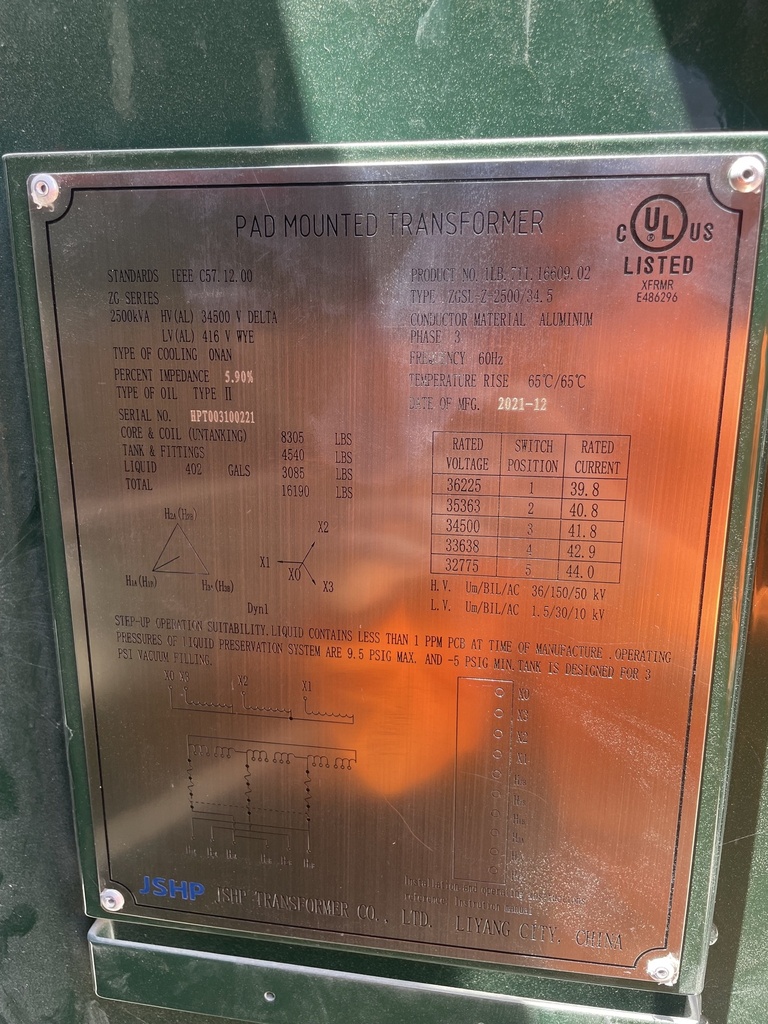

ONE (1) 2500 KVA JSHP PADMOUNT TRANSFORMER, USED
60 HZ, 3 PH, ONAN, 5.90% IMPEDANCE, STYLE ZGSL-Z-2500/34.5
65 DEG C RISE, AL WINDINGS, MFG. 12/2021,


HV: 34500 DELTA BIL: 150 KV
LV: 416Y/240 BIL: 30 KV

TAPS: 36225-35363-34500-33638-32775

TOTAL WEIGHT: 16190 LBS
CORE & COILS: 8305 LBS
TANK & FITT.: 4540 LBS
LIQUID-OIL: 3085 LBS (402 GAL)

DIMENSIONS: COMING SOON
