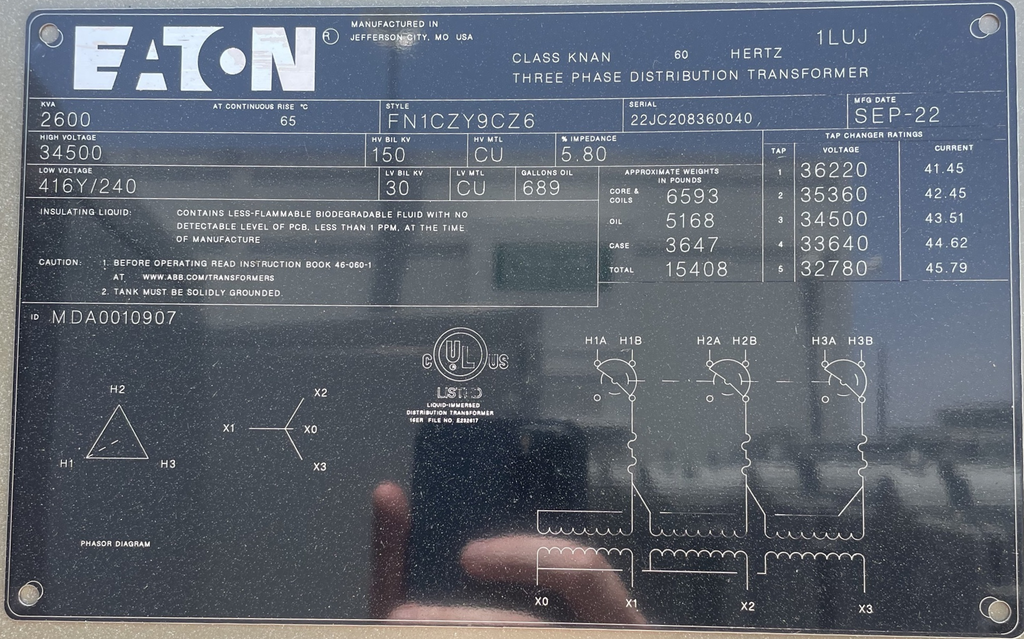

2600 KVA, Pri 34500 D, Sec 416 Y, EATON PADMOUNT TRANSFORMER:38, NEW

ONE (1) 2600 KVA EATON PADMOUNT TRANSFORMER, NEW
60 HZ, 3 PH, KNAN, 5.80% IMPEDANCE, STYLE FN1CZY9CZ6
65 DEG C RISE, ALL COPPER WINDINGS, MFG. 09/2022,


HV: 34500 DELTA BIL: 150 KV
LV: 416Y/240 BIL: 30 KV

TAPS: 36220-35360-34500-33640-32780

TOTAL WEIGHT: 15408 LBS
CORE & COILS: 6593 LBS
TANK & FITT.: 3647 LBS
LIQUID-OIL: 5168 LBS (689 GAL)

DIMENSIONS: COMING SOON
