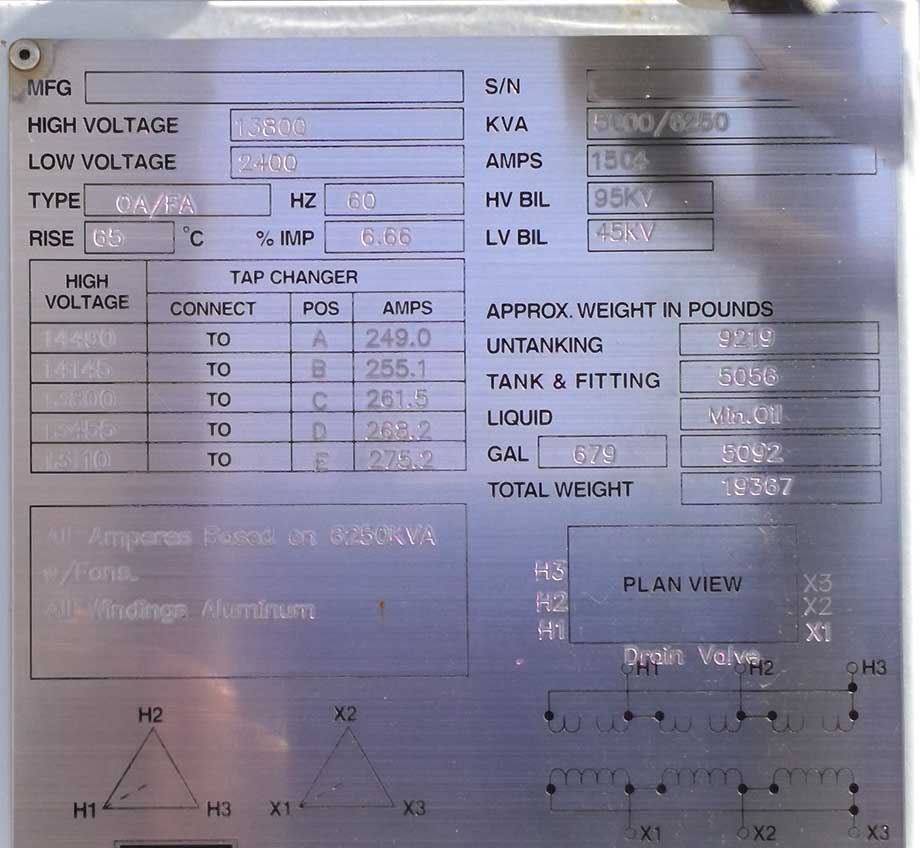

5000/6250 KVA, Pri 13800 D, Sec 2400 D SUBSTATION TRANSFORMER

ONE (1) 5000-6250 KVA SUBSTATION TRANSFORMER,
60 HZ, 3 PH, OA/FA, 65 DEG C RISE, 6.66% IMPEDANCE,
SIDE-SIDE BUSHINGS, LIQUID LEVEL GAUGE, LIQUID TEMP
GAUGE, PRESSURE GAUGE, PRESSURE RELEASE VALVE, DRAIN
& SAMPLE VALVE, ALUMINUM WINDINGS,

HV: 13800 DELTA BIL: 95 KV
LV: 2400 DELTA BIL: 45 KV

TAPS: 14490-14145-13800-13455-13110

TOTAL WEIGHT: 19367 LBS
CORE & COILS: 9219 LBS
TANK & FITT.: 5056 LBS
LIQUID-OIL: 5092 LBS (679 GAL)

OVERALL DIMENSIONS: 93"H x 105"W x 102"D
SHIPPING DIMENSIONS: 93"H x 105"W x 102"D
