  2. 2550 KVA, Pri 13200 D, Sec 4160 Y, DB ELECTRIC PADMOUNT TRANSFORMER

2550 KVA, Pri 13200 D, Sec 4160 Y, DB ELECTRIC PADMOUNT TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/35017/image_1920?unique=e118c1b

PADMOUNT TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045412
    Request Quote

    Full Product Description

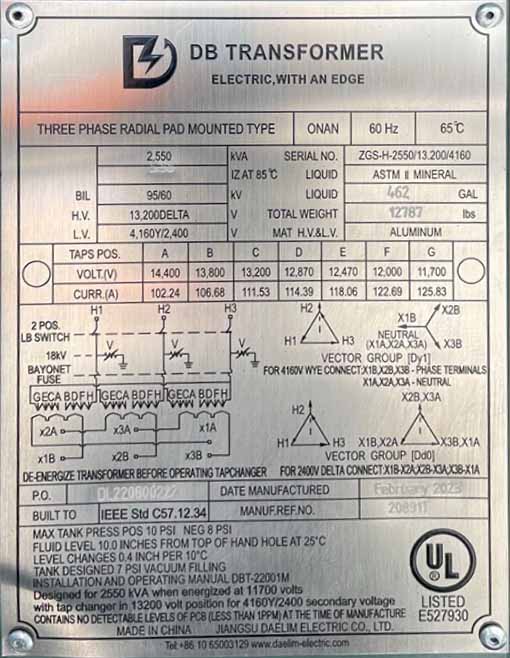

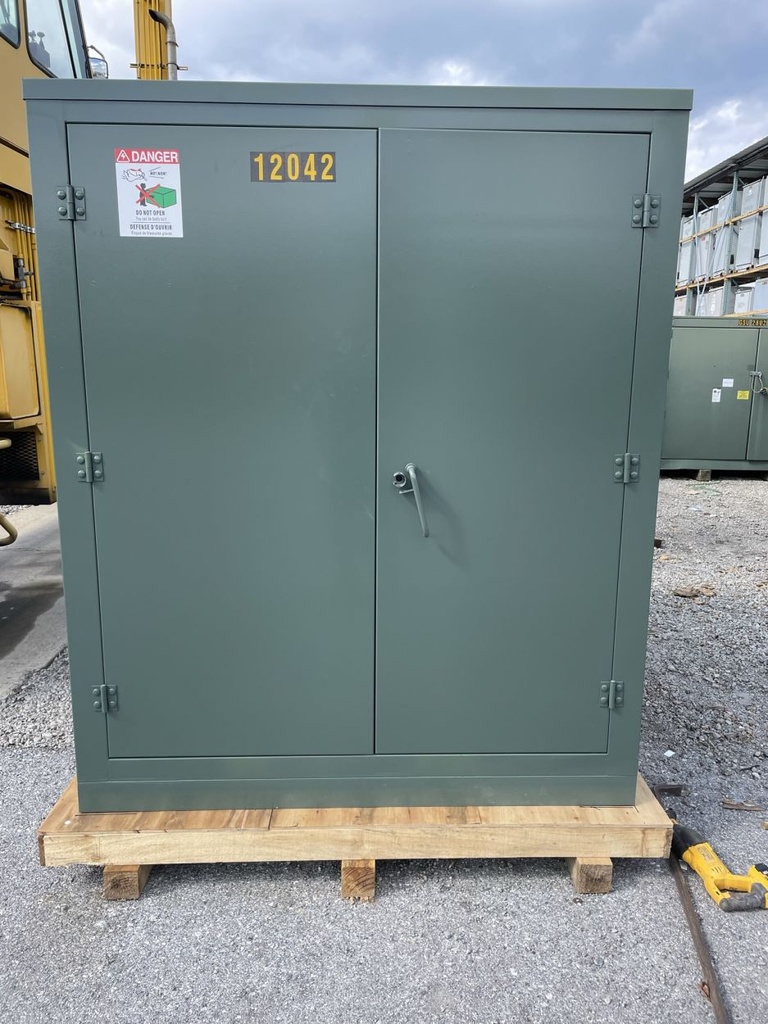

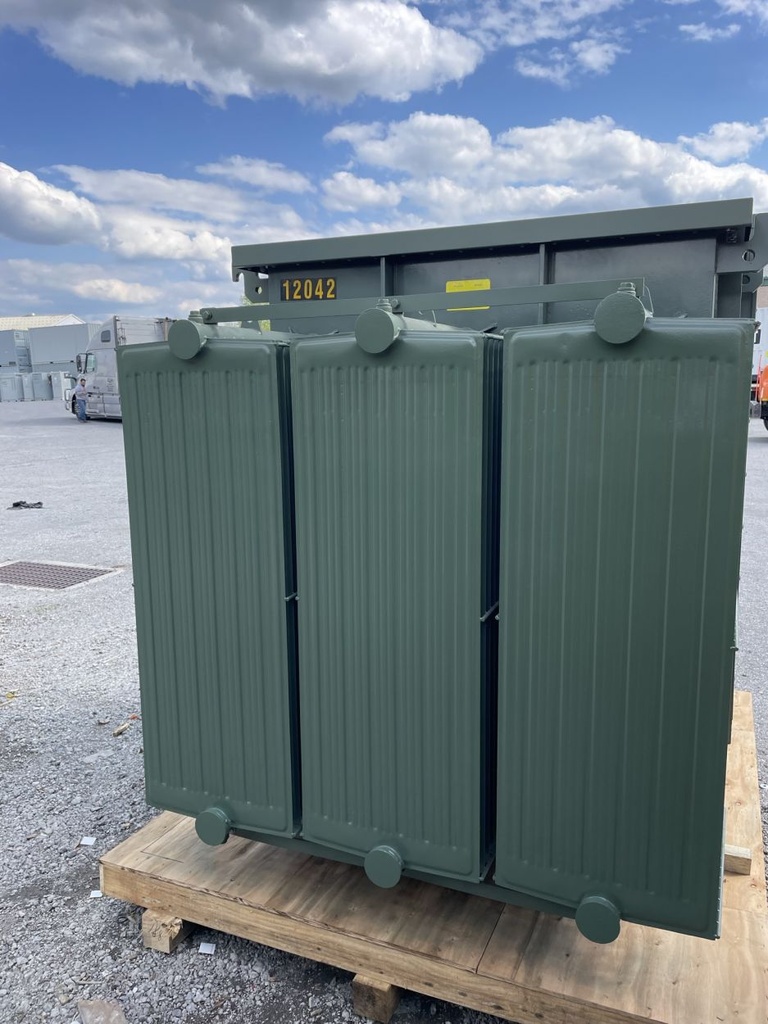

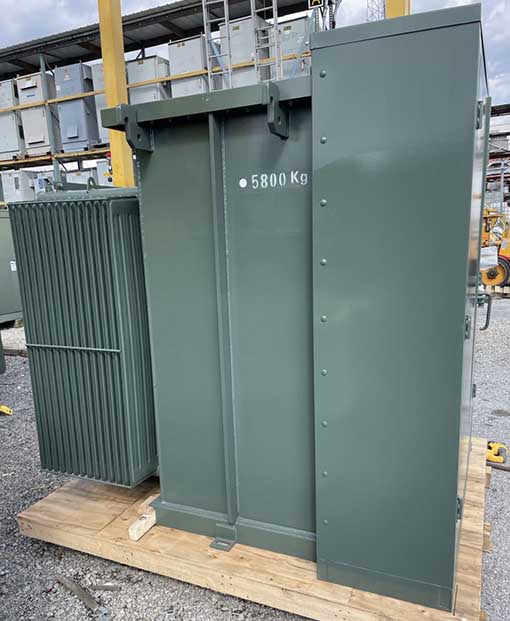

    ONE (1) 2550 KVA DB ELECTRIC PADMOUNT TRANSFORMER
    3 PH, 60 HZ, 65 DEG C RISE, ONAN, 5.58% IMPEDANCE,

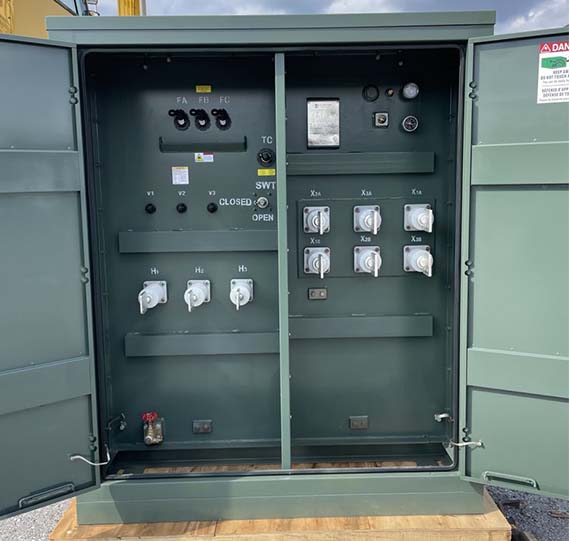

    RADIAL FEED, LIVE FRONT, BAYONET FUSES, LIQUID
    LEVEL GAUGE, LIQUID TEMP GAUGE, PRESSURE GAUGE,
    PRESSURE RELEASE VALVE, DRAIN & SAMPLE VALVE,
    AL CONNECTIONS,

    HV: 13200 DELTA BIL: 95 KV
    LV: 4160Y/2400 BIL: 60 KV

    TAPS: 14400-13800-13200-12870-12470-12000-11700

    TOTAL WEIGHT: 12787 LBS

    DIMENSIONS: 82"H x 72.5"W x 85"D
