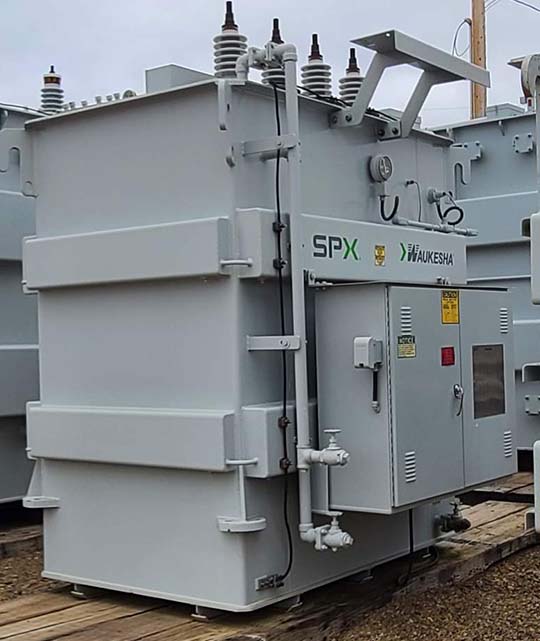

  2. 7500 KVA, Pri 115000 D, Sec 12470 GRDY, WAUKESHA SPX SUBSTATION TRANSFORMER

7500 KVA, Pri 115000 D, Sec 12470 GRDY, WAUKESHA SPX SUBSTATION TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/35015/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045410
    Request Quote

    Full Product Description



    ONE (1) 7500/9380 KVA WAUKESHA SPX SUBSTATION TRANSFORMER,
    3 PN, 60 HZ, ONAN/ONAF, 8.77% IMPEDANCE, 65 DEG C RISE,
    LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE, PRESSURE GAUGE,
    DRAIN & SAMPLE VALVE, PRESSURE RELEASE VALVE, TOP-TOP
    BUSHINGS,

    HV: 115000 DELTA BIL: 550 KV
    LV: 12470 GRDY/7200 BIL: 110 KV

    TAPS: 120750-117300-115000-112700-109250

    TOTAL WEIGHT: TBD
    CORE & COILS: TBD
    TANK & FITT.: TBD
    LIQUID-OIL: TBD

    DIMENSIONS: TBD
