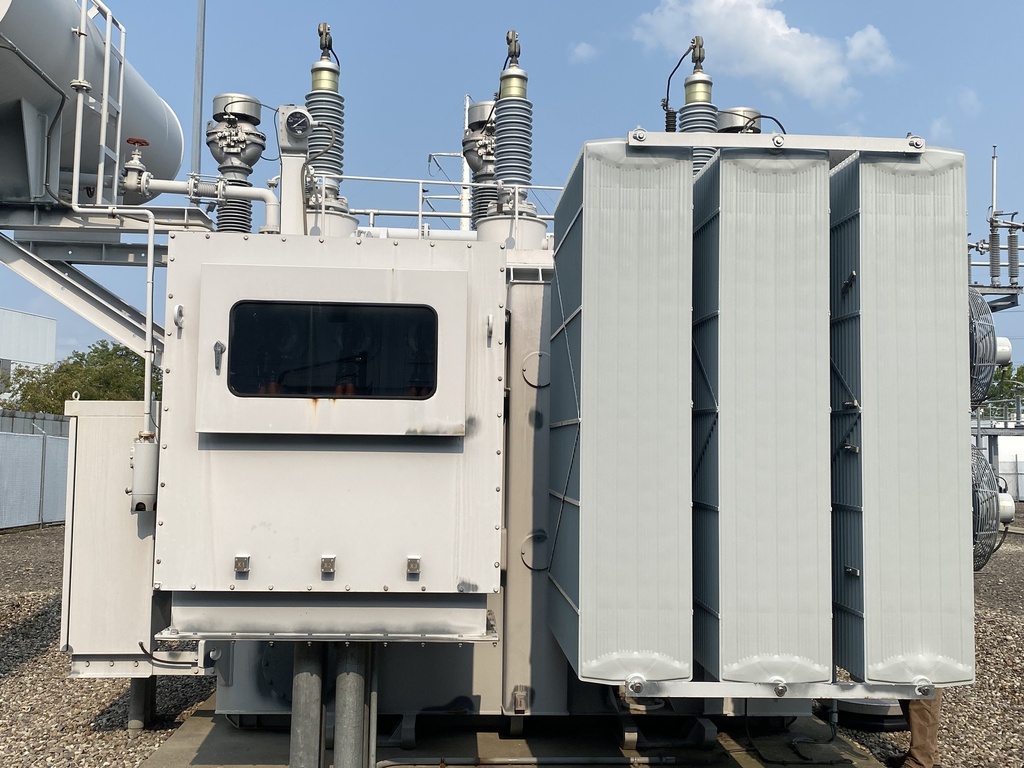

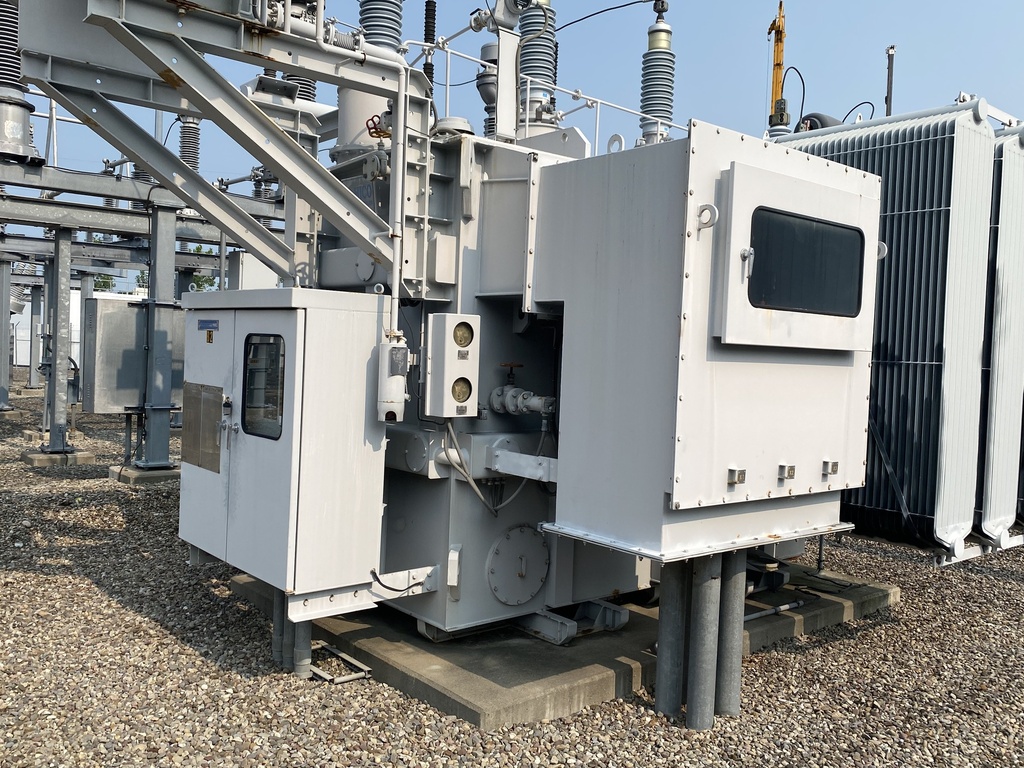

20/26.6/33 MVA, Pri 115000 D, Sec 13800 Y, HICO OLTC SUBSTATION TRANSFORMER

ONE (1) 20/26.6/33 MVA HICO OLTC SUBSTATION TRANSFORMER,
60 HZ, ONAN/ONAF/ONAF, 65 DEG C RISE, 8.80% IMP, 3 PH,
ALL COPPER CONDUCTORS, OIL PRESERVATION SYSTEM, RAPID
PRESSURE RELAY, PRESSURE RELIEF DEVICE, WINDING TEMP GAUGE,
OIL TEMP GAUGE, GAS ACCUMULATION DEVICE, SAMPLING VALVE,
DRAIN & SAMPLE VALVE, OIL LEVEL GAUGE,

HV: 115000 DELTA BIL: 550 KV
LV: 13800 WYE BIL: 110 KV

TAPS: 16 UP, 16 DOWN FROM NOMINAL

TOTAL WEIGHT: 143519 LBS
CORE & COILS: 54894 LBS
TANK & FITT.: 50926 LBS
LIQUID-OIL: 37698 LBS (5019 GAL)

OVERALL DIMENSIONS: 222.44"W x 255.91"D x 208.68"H
SHIPPING DIMENSIONS: 196.85"L x 137.8"W x 145.67"H
