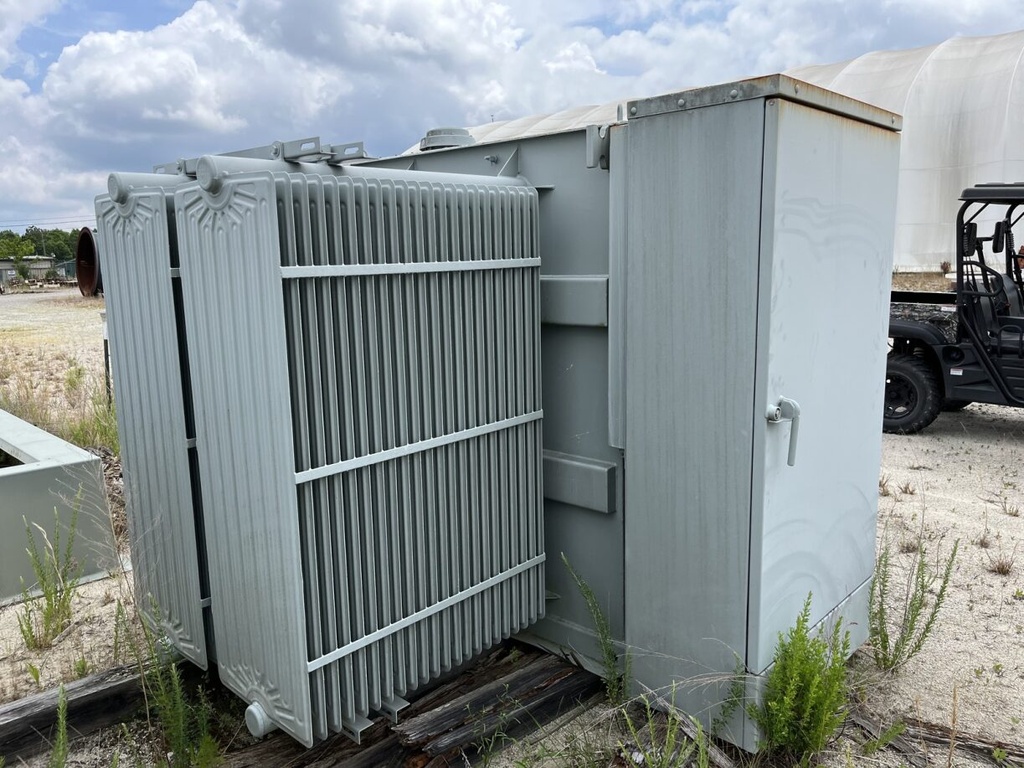

1000 KVA, Pri 6900 D, Sec 480 Y, EATON SUBSTATION TRANSFORMER:10

ONE (1) 1000 KVA EATON SUBSTATION TRANSFORMER,
60 HZ, 65 DEG C RISE, 3 PH, KNAN/KNAF, 5.7% IMPEDANCE,

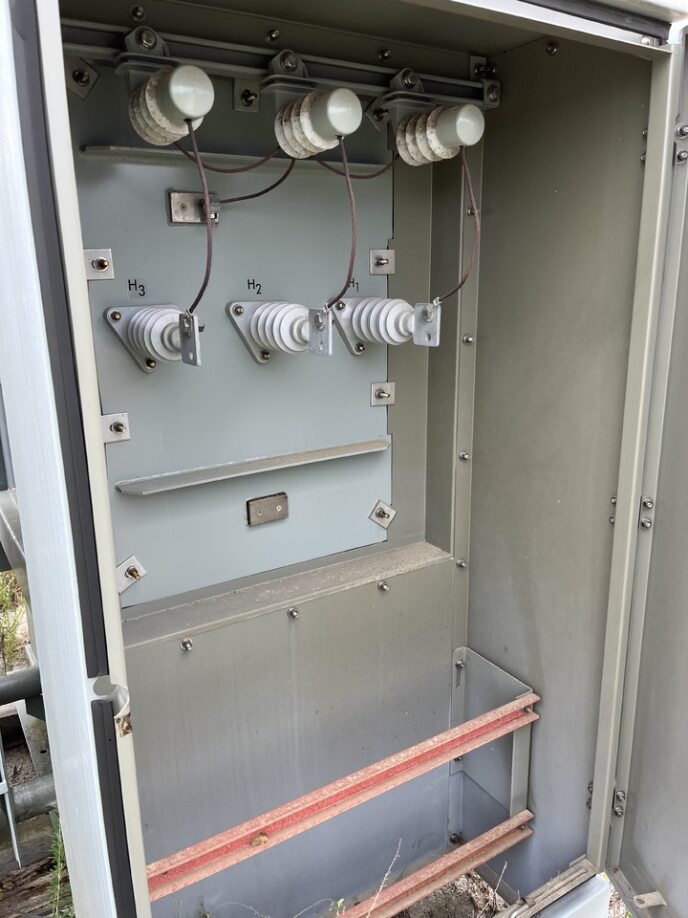

SIDE-SIDE BUSHINGS, FULL LENGTH ATC'S, LIQUID LEVEL GAUGE,
LIQUID TEMP GAUGE, PRESSURE GAUGE, WINDING TEMP GAUGE,
PRESSURE RELEASE VALVE, DRAIN & SAMPLE VALVE, ALL COPPER
WINDINGS,

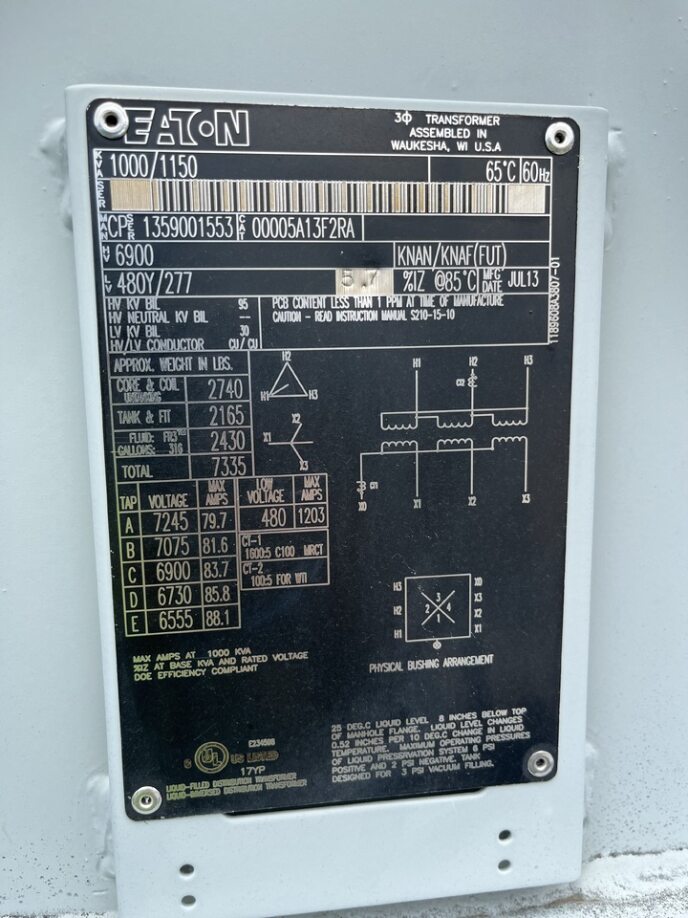

HV: 6900 DELTA BIL: 95 KV
LV: 480Y/277 BIL: 30 KV

TAPS: 7245-7075-6900-6730-6555

TOTAL WEIGHT: 7335 LBS
CORE & COILS: 2740 LBS
TANK & FITT.: 2165 LBS
FLUID-FR3: 2430 (316 GAL)

DIMENSIONS: TBD
