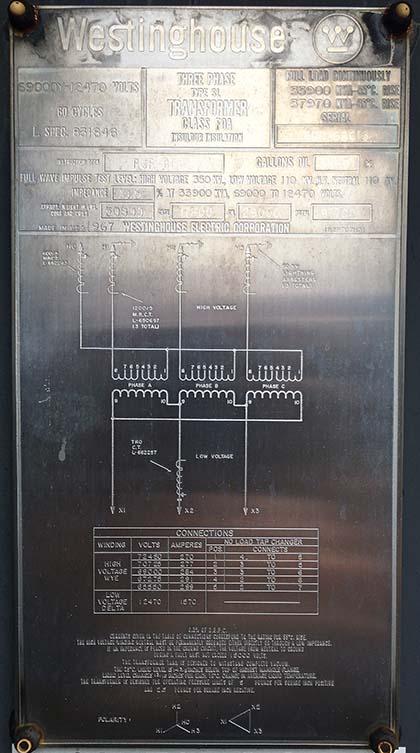

33900 KVA, Pri 69000 Y, Sec 12470 D, GSU WESTINGHOUSE SUBSTATION TRANSFORMER

ONE (1) 33.9/37.9 MVA GSU WESTINGHOUSE SUBSTATION TRANSFORMER,
3 PH, 60 HZ, FOA, 55/65 DEG C RISE, 10.5% IMPEDANCE,
SIDE-SIDE BUSHINGS, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE,
PRESSURE GAUGE, PRESSURE RELIEF DEVICE, DRAIN & SAMPLE
VALVE, INSTR BOOK RGR-6861,

HV: 69000 WYE BIL: 350 KV
LV: 12470 DELTA BIL: 110 KV

TAPS: 72450-70725-69000-67275-65550

TOTAL WEIGHT: 97700 LBS
CORE & COILS: 50900 LBS
TANK & FITT.: 17300 LBS
LIQUID-OIL: 29000 LBS (3860 GAL)

DIMENSIONS: COMING SOON
