1000 KVA, Pri 4160 D, Sec 240 D, 2016, SUNBELT PADMOUNT TRANSFORMER, LF/RF

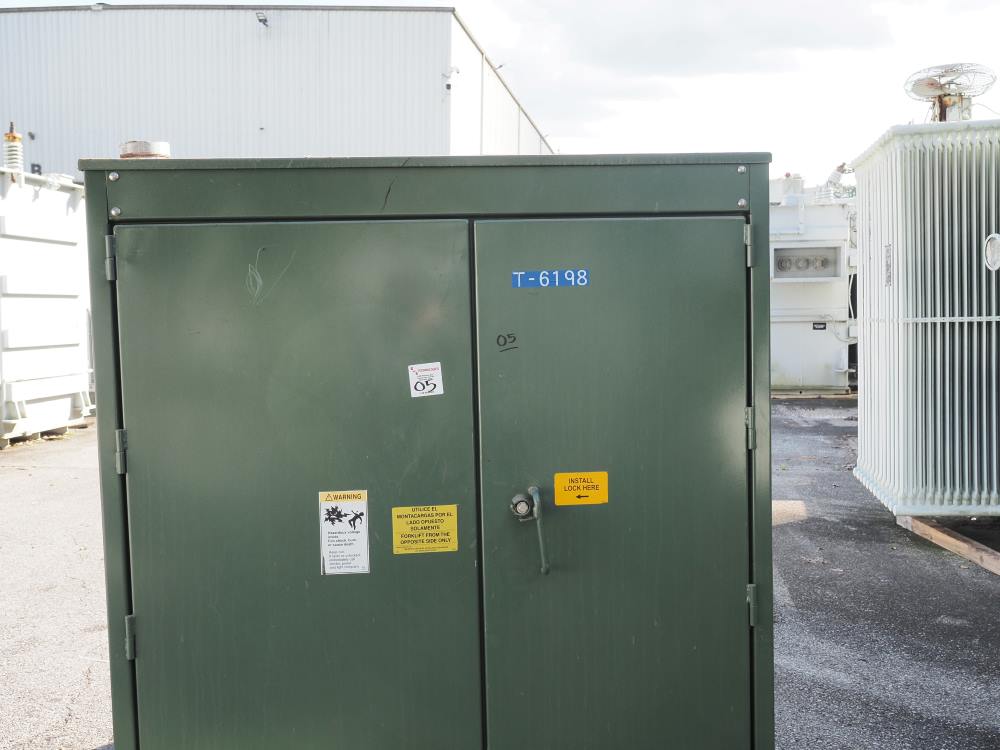

T-6198

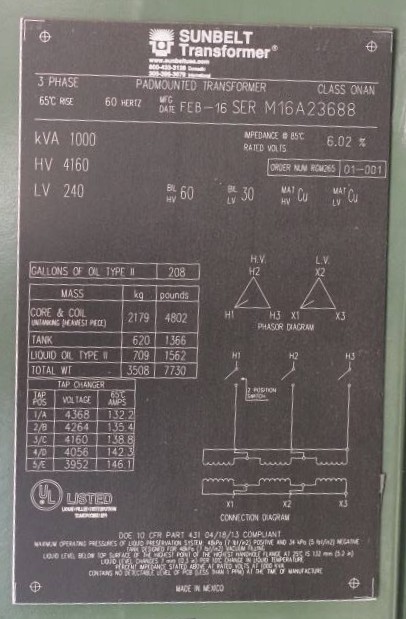

ONE (1) 1000 KVA SUNBELT PAD-MOUNT TRANSFORMER, 3 PHASE, 60HZ, CLASS ONAN,

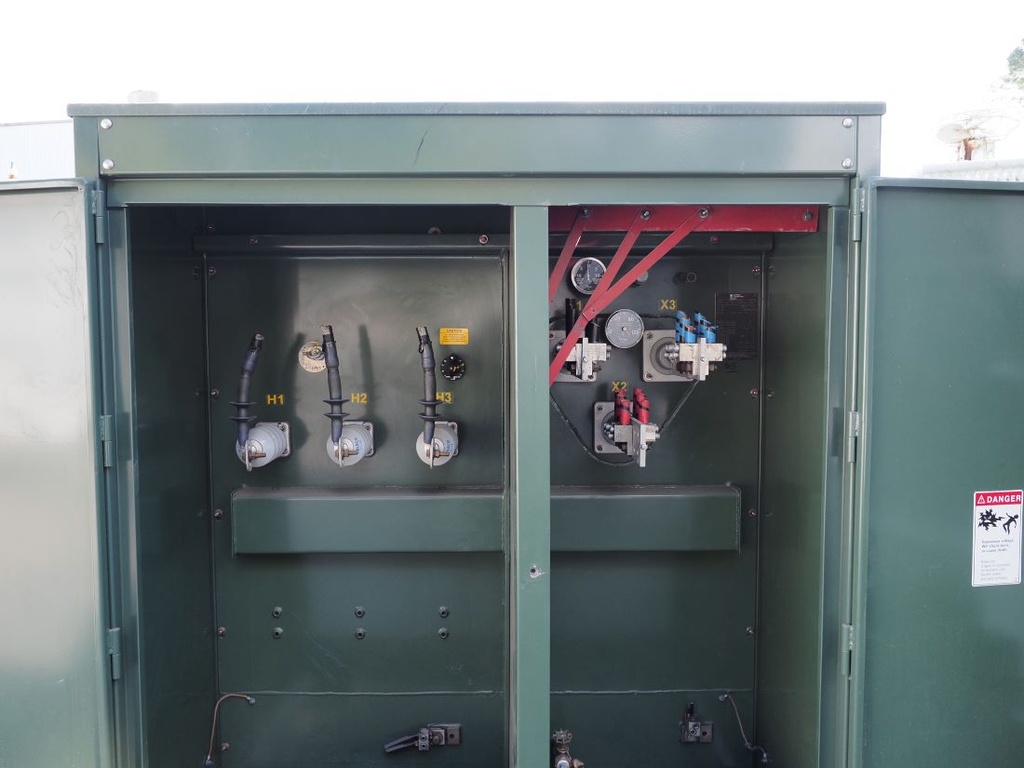

65 DEG. C RISE, 6.02% IMPEDENCE, , Live Front, Radial LIQUID LEVEL
GAUGE, LIQUID TEMP GAUGE, VACUUM PRESSURE GAUGE, DRAIN AND SAMPLE
VALVE, TAP CHANGER, ALL COPPER WINDINGS

HV: 4160D HV BIL: 60kV
LV: 240D LV BIL: 30kV

TAPS: 4368-4264-4160-4056-3952

TOTAL WEIGHT: 7730LBS
CORE & COILS: 4802LBS
TANK & FITTS: 1366LBS
LIQUID : 1562LBS (208 GAL)

DIMMS: 70.5" H x 63.5" W x 62" D
